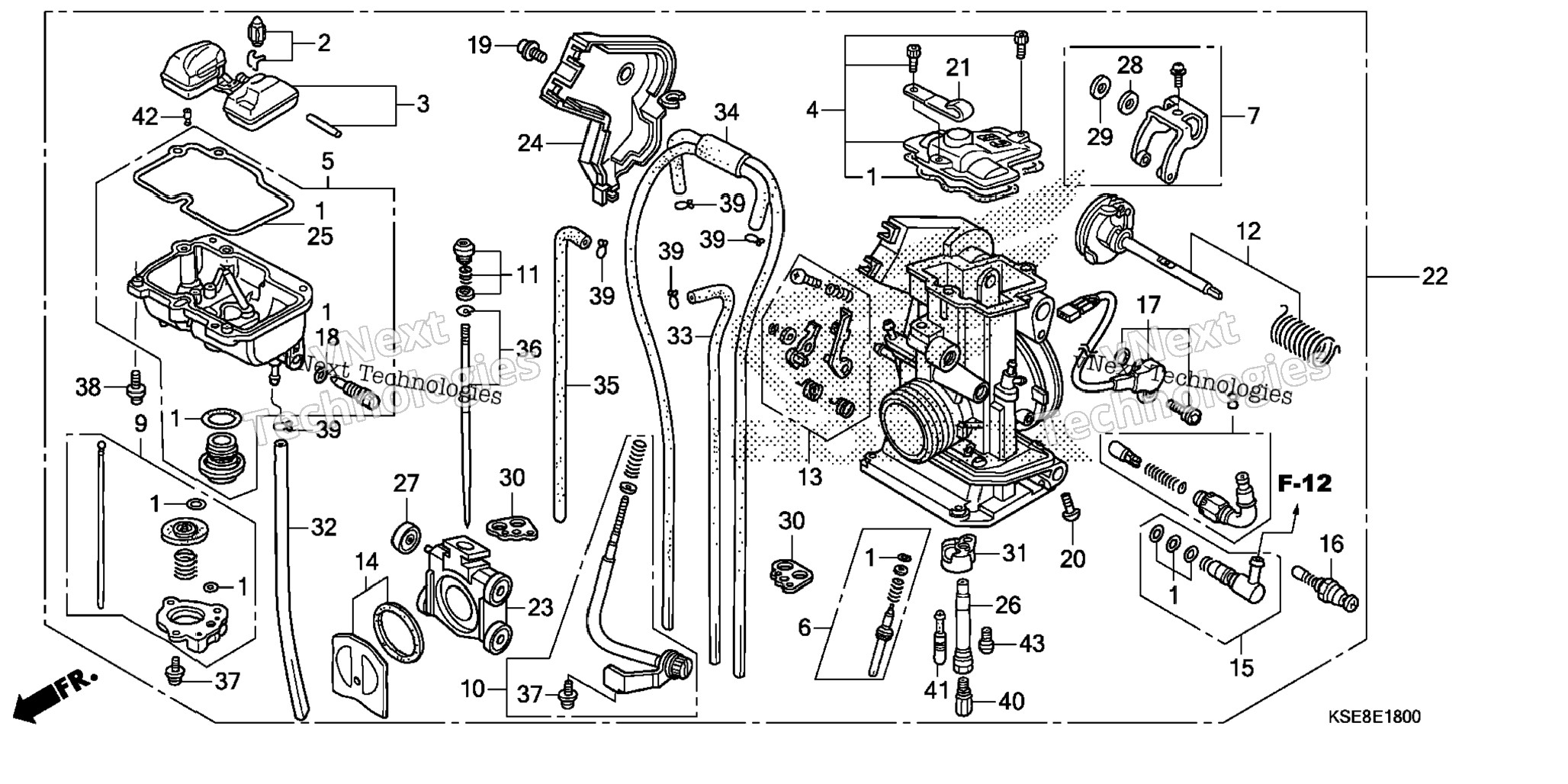

| 1 | 16010-MEN-851 | GASKET SET (CARBURETOR NO.) | 1 шт. | — | |
|
| 2 | 16011-KSE-671 | VALVE SET, FLOAT | 1 шт. | — | |
|
| 3 | 16013-MEB-671 | FLOAT SET | 1 шт. | — | |
|
| 4 | 16014-KSE-671 | TOP SET | 1 шт. | — | |
|
| 5 | 16015-KSC-A11 | CHAMBER SET, FLOAT | 1 шт. | — | |
|
| 6 | 16016-KSE-601 | SCREW SET A | 1 шт. | — | |
|
| 7 | 16018-MEY-A11 | ARM SET, LINK | 1 шт. | — | |
|
| 8 | 16019-MEB-671 | START SET, HOT | 1 шт. | — | |
|
| 9 | 16021-KSE-A71 | PUMP SET, DIAPHRAGM | 1 шт. | — | |
|
| 10 | 16028-KSE-A71 | SCREW SET B | 1 шт. | — | |
|
| 11 | 16029-MEY-A11 | SCREW SET, JET NEEDLE | 1 шт. | — | |
|
| 12 | 16032-KSE-A71 | SHAFT SET, THROTTLE | 1 шт. | — | |
|
| 13 | 16033-KSE-A71 | LEVER SET, PUMP | 1 шт. | — | |
|
| 14 | 16037-KSE-671 | VALVE SET, FLOATING | 1 шт. | — | |
|
| 15 | 16038-MEB-671 | JOINT SET, FUEL | 1 шт. | — | |
|
| 16 | 16046-MEB-671 | VALVE SET, STARTER | 1 шт. | — | |
|
| 17 | 16060-KSE-671 | SENSOR ASSY., THROTTLE | 1 шт. | — | |
|
| 18 | 16076-ND5-004 | O-RING (1.3X4.3) (CARBURETOR NO.) | 1 шт. | — | |
|
| 19 | 16080-HP1-601 | BOLT, COVER | 1 шт. | — | |
|
| 20 | 16083-MEB-671 | SCREW, PAN | 1 шт. | — | |
|
| 21 | 16088-MEN-731 | CLIP (CARBURETOR NO.) | 1 шт. | — | |
|
| 22 | 16100-KSE-A72 | CARBURETOR ASSY. (FCR08D A) | 1 шт. | — | |
|
| 23 | 16112-KSE-601 | VALVE, THROTTLE | 1 шт. | — | |
|
| 24 | 16157-MEN-A01 | COVER, THROTTLE | 1 шт. | — | |
|
| 25 | 16163-MEB-671 | GASKET, FLOAT CHAMBER | 1 шт. | — | |
|
| 26 | 16165-MEY-A11 | HOLDER, NEEDLE JET | 1 шт. | — | |
|
| 27 | 16172-MEB-671 | ROLLER | 1 шт. | — | |
|
| 28 | 16177-MEB-671 | WASHER, PLAIN (PO) | 1 шт. | — | |
|
| 29 | 16178-MEB-671 | WASHER, PLAIN (SUS) | 1 шт. | — | |
|
| 30 | 16178-MEN-851 | BINDER (CARBURETOR NO.) | 2 шт. | — | |
|
| 31 | 16185-MEN-671 | PLATE, BUFFER | 1 шт. | — | |
|
| 32 | 16196-KSE-E31 | TUBE, OVERFLOW | 1 шт. | — | |
|
| 33 | 16197-MEB-671 | TUBE, AIR VENT | 1 шт. | — | |
|
| 34 | 16198-KSE-671 | TUBE, AIR VENT | 1 шт. | — | |
|
| 35 | 16199-MEB-671 | TUBE, AIR VENT | 1 шт. | — | |
|
| 36 | 16204-KSE-601 | NEEDLE SET, JET (NMQT) | 1 шт. | — | |
|
| 37 | 93892-04008-08 | SCREW-WASHER (4X8) | 4 шт. | — | |
|
| 37 | 93892-04008-18 | SCREW-WASHER (4X8) | 4 шт. | — | |
|
| 38 | 93892-04014-18 | SCREW-WASHER (4X14) | 4 шт. | — | |
|
| 38 | 93892-04014-08 | SCREW-WASHER (4X14) | 4 шт. | — | |
|
| 39 | 95002-02079 | CLIP, TUBE (B17) | 5 шт. | — | |
|
| 40 | 99101-357-1400 | JET, MAIN (#140) JET, MAIN (#135) | 1 шт. | — | |
|
| 41 | 99103-440-0380 | JET, SLOW (#38) | 1 шт. | — | |
|
| 41 | 99103-KBA-0380 | JET, SLOW (#38) | 1 шт. | — | |
|
| 41 | 99103-KA3-0380 | JET, SLOW (#38) | 1 шт. | — | |
|
| 42 | 99108-MEB-0550 | JET, LEAK (#55) (Optional). | 1 шт. | — | |
|
| 42 | 99108-KSE-0600 | JET, LEAK (#60) (Optional). | 1 шт. | — | |
|
| 42 | 99108-KSC-0650 | JET, LEAK (#65) | 1 шт. | — | |
|
| 42 | 99108-KRN-0700 | JET, LEAK (#70) (Optional). | 1 шт. | — | |
|
| 42 | 99108-KRN-0750 | JET, LEAK (#75) (Optional). | 1 шт. | — | |
|
| 43 | 99112-KRN-0680 | JET, BY-STARTER (#68) | 1 шт. | — | |
|
