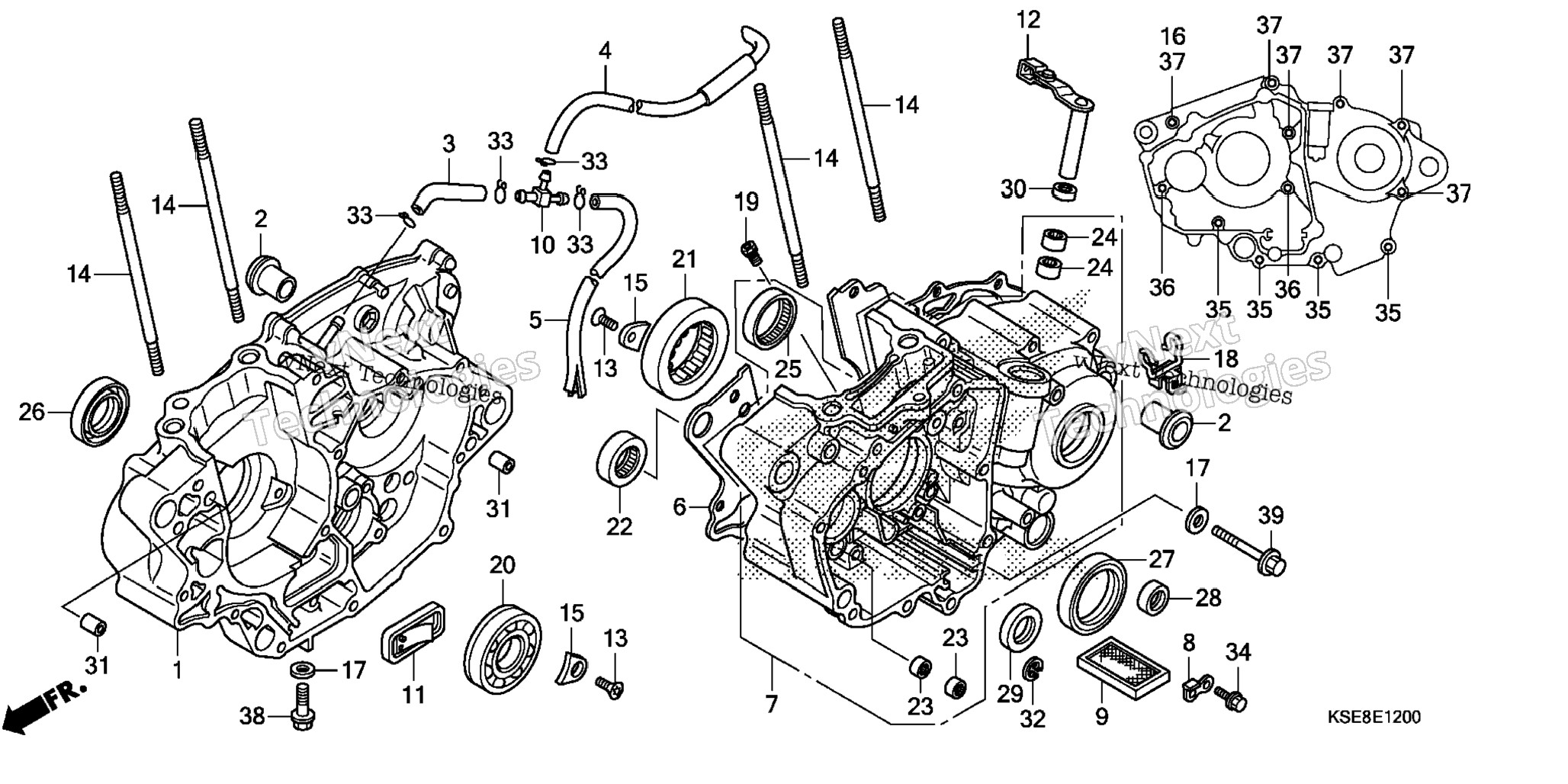

| 1 | 11100-KSE-670 | CRANKCASE, R. | 1 шт. | — | |
|
| 2 | 11104-KSE-670 | COLLAR, ENGINE HANGER | 2 шт. | — | |
|
| 3 | 11105-KSE-670 | TUBE A, BREATHER | 1 шт. | — | |
|
| 4 | 11106-KSE-670 | TUBE B, BREATHER | 1 шт. | — | |
|
| 5 | 11107-KSE-670 | TUBE C, BREATHER | 1 шт. | — | |
|
| 6 | 11191-KSE-671 | GASKET, CRANKCASE | 1 шт. | — | |
|
| 7 | 11200-KSE-A70 | CRANKCASE, L. | 1 шт. | — | |
|
| 8 | 11206-KRN-670 | PLATE, CAM CHAIN GUIDE | 1 шт. | — | |
|
| 9 | 15421-KK0-000 | SCREEN, OIL FILTER | 1 шт. | — | |
|
| 10 | 16961-MCT-010 | JOINT, THREE WAY | 1 шт. | — | |
|
| 11 | 18601-MBW-003 | VALVE, REED | 1 шт. | — | |
|
| 12 | 22810-KSE-670 | LEVER, CLUTCH LIFTER | 1 шт. | — | |
|
| 13 | 90001-MEN-850 | SCREW, SPECIAL FLAT (6X17) | 4 шт. | — | |
|
| 14 | 90031-KSE-600 | BOLT, STUD (9X116) | 4 шт. | — | |
|
| 15 | 90441-KRN-670 | PLATE, BEARING HOLDER | 4 шт. | — | |
|
| 16 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 1 шт. | — | |
|
| 17 | 90474-333-000 | WASHER, SEALING (8MM) | 2 шт. | — | |
|
| 18 | 90610-MEB-670 | GUIDE, TUBE | 1 шт. | — | |
|
| 19 | 90901-MCF-000 | JET, OIL (#80) | 1 шт. | — | |
|
| 20 | 91001-KSE-671 | BEARING, SPECIAL RADIAL BALL (63/22) (NTN) | 1 шт. | — | |
|
| 21 | 91002-KSE-671 | BEARING, SPECIAL ROLLER (NTN) | 1 шт. | — | |
|
| 22 | 91004-KSE-671 | BEARING, ROLLER (18X29X14) (NTN) | 1 шт. | — | |
|
| 23 | 91006-HA0-003 | BEARING, NEEDLE (9MM) (NTN) | 2 шт. | — | |
|
| 24 | 91021-148-004 | BEARING, NEEDLE (1010) (TOYO) | 2 шт. | — | |
|
| 25 | 91022-KA4-741 | BEARING, SHELL (33X38X8) | 1 шт. | — | |
|
| 26 | 91201-KSE-671 | OIL SEAL (32X48X7.5) (ARAI) | 1 шт. | — | |
|
| 27 | 91201-MEB-671 | OIL SEAL (38X52X7) (ARAI) | 1 шт. | — | |
|
| 28 | 91203-KA4-771 | OIL SEAL (14X22X5) (NOK) | 1 шт. | — | |
|
| 29 | 91203-KSE-671 | OIL SEAL (18X30X5) (ARAI) | 1 шт. | — | |
|
| 30 | 91204-KSE-671 | OIL SEAL (10X17X3) (NOK) | 1 шт. | — | |
|
| 31 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 2 шт. | — | |
|
| 32 | 94520-30100 | CIRCLIP (INNER) (30MM) | 1 шт. | — | |
|
| 33 | 95002-02100 | CLIP, TUBE (B10) | 4 шт. | — | |
|
| 34 | 96001-06012-00 | BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 35 | 96001-06045-00 | BOLT, FLANGE (6X45) | 4 шт. | — | |
|
| 36 | 96001-06055-00 | BOLT, FLANGE (6X55) | 2 шт. | — | |
|
| 37 | 96001-06070-00 | BOLT, FLANGE (6X70) | 6 шт. | — | |
|
| 38 | 96300-08035-00 | BOLT, FLANGE (8X35) | 1 шт. | — | |
|
| 39 | 96300-08080-00 | BOLT, FLANGE (8X80) | 1 шт. | — | |
|
