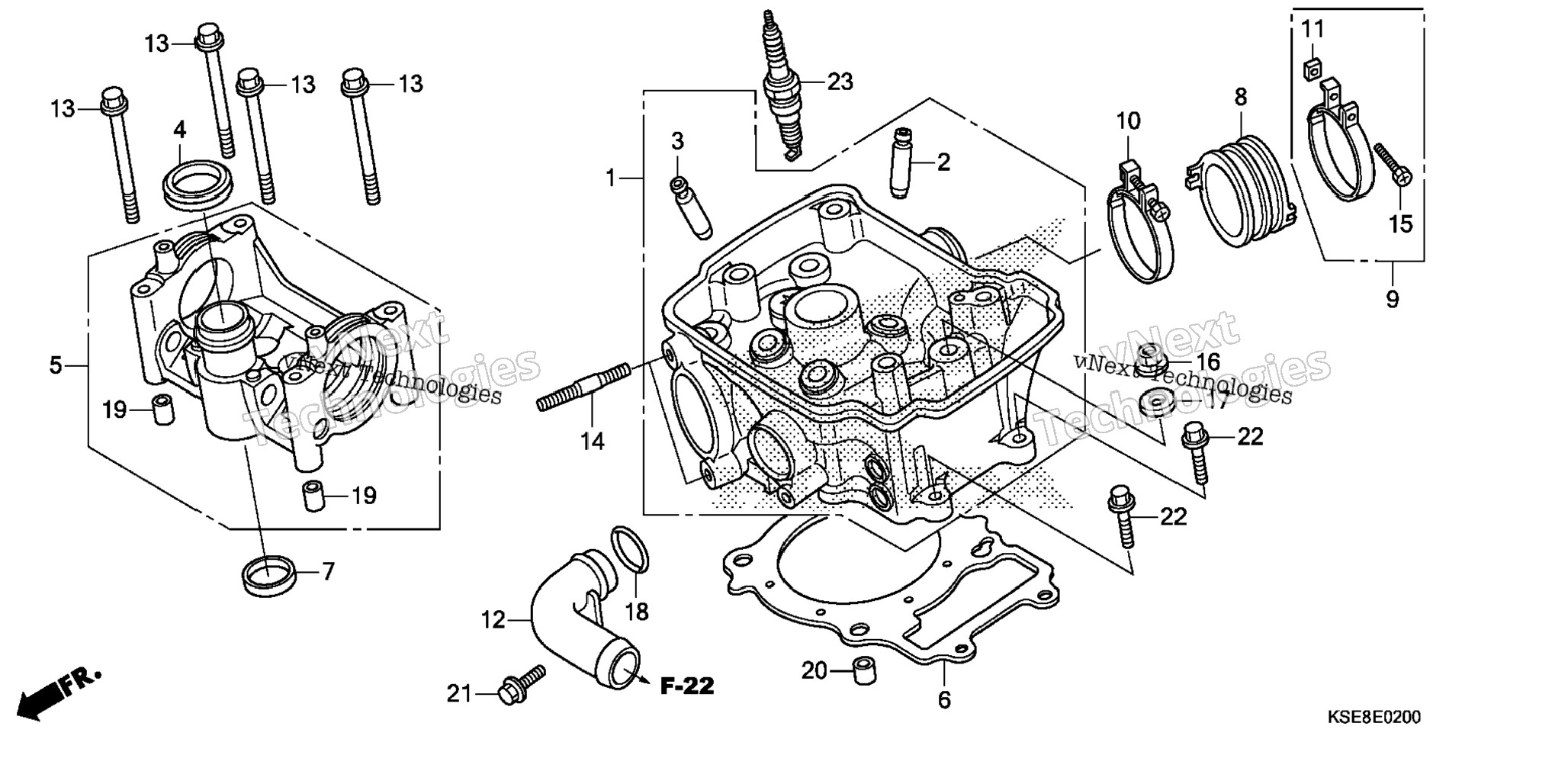

| 1 | 12200-KSE-A70 | CYLINDER HEAD | 1 шт. | — | |
|
| 2 | 12204-KSE-P00 | GUIDE, VALVE (OVER SIZE) | 2 шт. | — | |
|
| 3 | 12205-KSE-P00 | GUIDE, EX. VALVE (OVER SIZE) | 2 шт. | — | |
|
| 4 | 12226-MEB-670 | SEAL, RING | 1 шт. | — | |
|
| 5 | 12240-KSE-670 | HOLDER, CAMSHAFT | 1 шт. | — | |
|
| 6 | 12251-KSE-671 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 7 | 12395-KSE-670 | GASKET, PLUG HOLE | 1 шт. | — | |
|
| 8 | 16210-KSE-670 | INSULATOR, CARBURETOR | 1 шт. | — | |
|
| 9 | 16216-MCZ-000 | BAND A, INSULATOR | 1 шт. | — | |
|
| 10 | 16218-MCW-000 | BAND B, INSULATOR | 1 шт. | — | |
|
| 11 | 16222-MV4-300 | NUT, SQUARE (5MM) (GQ51B C) | 1 шт. | — | |
|
| 12 | 19523-KSE-670 | PIPE, WATER | 1 шт. | — | |
|
| 13 | 90003-KSE-670 | BOLT, FLANGE (6X73) | 4 шт. | — | |
|
| 14 | 90004-KCW-851 | BOLT, STUD (7X25) | 2 шт. | — | |
|
| 15 | 90023-MM5-000 | BOLT, RECESSED (5X28) (GQ51B C) | 1 шт. | — | |
|
| 16 | 90202-KGB-610 | NUT, FLANGE (8MM) | 4 шт. | — | |
|
| 17 | 90501-MK4-600 | WASHER, PLAIN (8MM) | 4 шт. | — | |
|
| 18 | 91301-MY9-003 | O-RING (15X2.5) | 1 шт. | — | |
|
| 18 | 91302-028-000 | O-RING (15X2.5) | 1 шт. | — | |
|
| 19 | 94301-08100 | PIN A, DOWEL (8X10) | 2 шт. | — | |
|
| 20 | 94301-10160 | PIN, DOWEL (10X16) (Honda Code 0058206) | 2 шт. | — | |
|
| 21 | 96001-06014-00 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 22 | 96001-06022-00 | BOLT, FLANGE (6X22) | 2 шт. | — | |
|
| 23 | 98059-58916 | SPARK PLUG (CR8EH9) (NGK) | 1 шт. | — | |
|
| 23 | 98059-59916 | SPARK PLUG (CR9EH-9) (NGK) | 1 шт. | — | |
|
| 23 | 98059-59910 | SPARK PLUG (CR9EH9) (NGK) | 1 шт. | — | |
|
| 23 | 98059-58926 | SPARK PLUG (U24FER9) (DENSO) | 1 шт. | — | |
|
| 23 | 98059-59926 | SPARK PLUG (U27FER9) (DENSO) | 1 шт. | — | |
|
