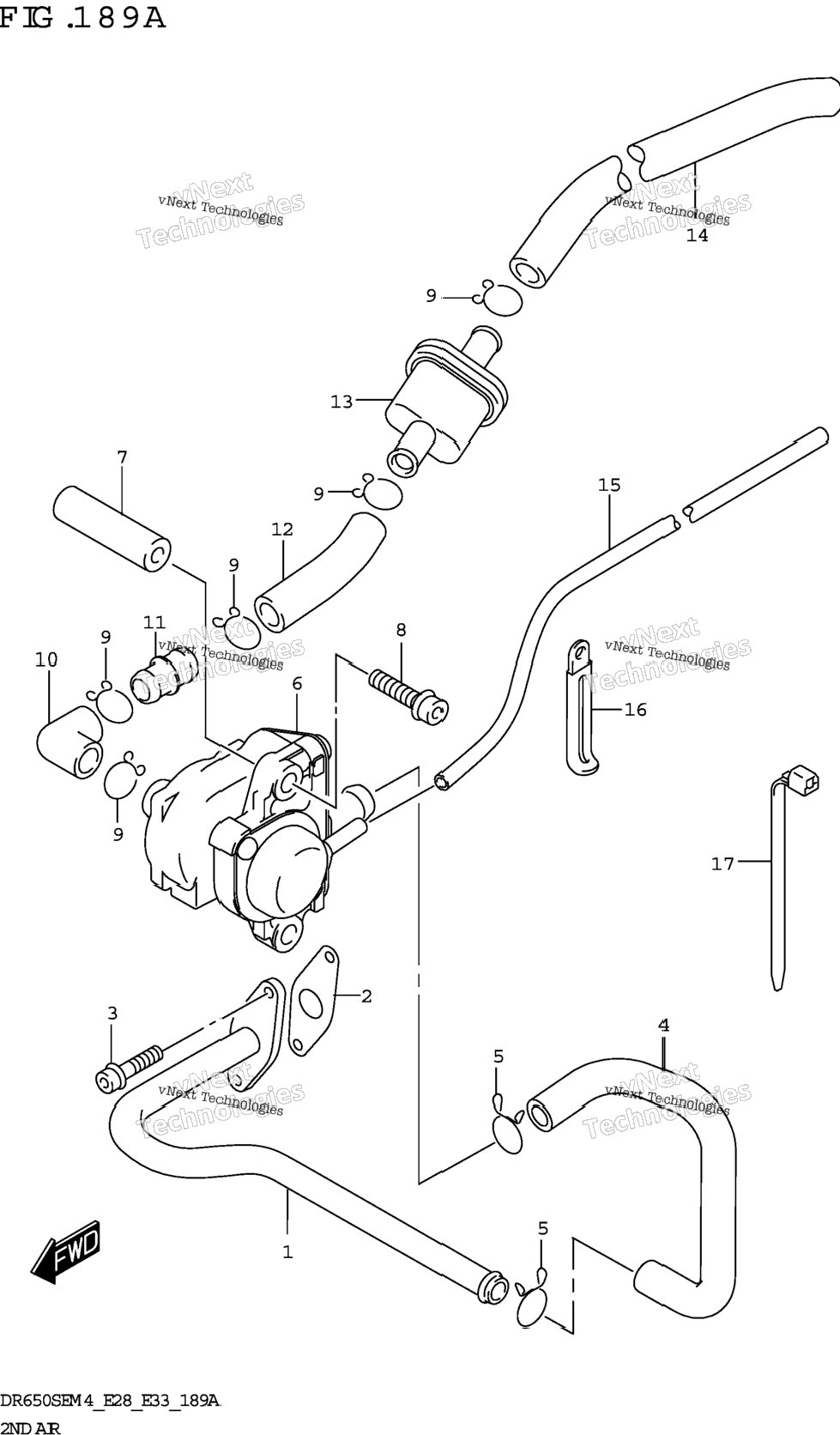

| 1 | 18410-32E20 | PIPE,2ND AIR | 1 шт. | — | |
|
| 2 | 18441-45C01 | GASKET 2ND AIR PIPE | 1 шт. | — | |
|
| 3 | 07130-0616A | BOLT | 2 шт. | — | |
|
| 4 | 18461-32E00 | HOSE,2ND AIR PIPE | 1 шт. | — | |
|
| 5 | 09401-13409 | CLIP (ID:13.5) | 2 шт. | — | |
|
| 6 | 18450-29F02 | VALVE ASSY 2ND AIR | 1 шт. | — | |
|
| 7 | 18612-29F00 | SPACER 2ND AIR VALVE RR | 2 шт. | — | |
|
| 8 | 01547-0665A | BOLT | 2 шт. | — | |
|
| 9 | 09401-15101 | CLIP (ID:15.5) | 5 шт. | — | |
|
| 10 | 18712-29F01 | HOSE 2ND AIR CLEANER JT | 0 шт. | — | |
|
| 11 | 13888-19B00 | JOINT 2ND AIR CLEANER HOSE | 1 шт. | — | |
|
| 12 | 18711-32E00 | HOSE,2ND AIR CLNR | 0 шт. | — | |
|
| 13 | 18700-29F00 | CLEANER 2ND AIR | 1 шт. | — | |
|
| 14 | 09359-40703-600 | HOSE | 1 шт. | — | |
|
| 15 | 09352-11163-270 | HOSE,2ND AIR CLNR INLET | 1 шт. | — | |
|
| 16 | 09404-06429 | CLAMP (L:45) | 1 шт. | — | |
|
| 17 | 09407-18402 | CLAMP (L:165) | 1 шт. | — | |
|
