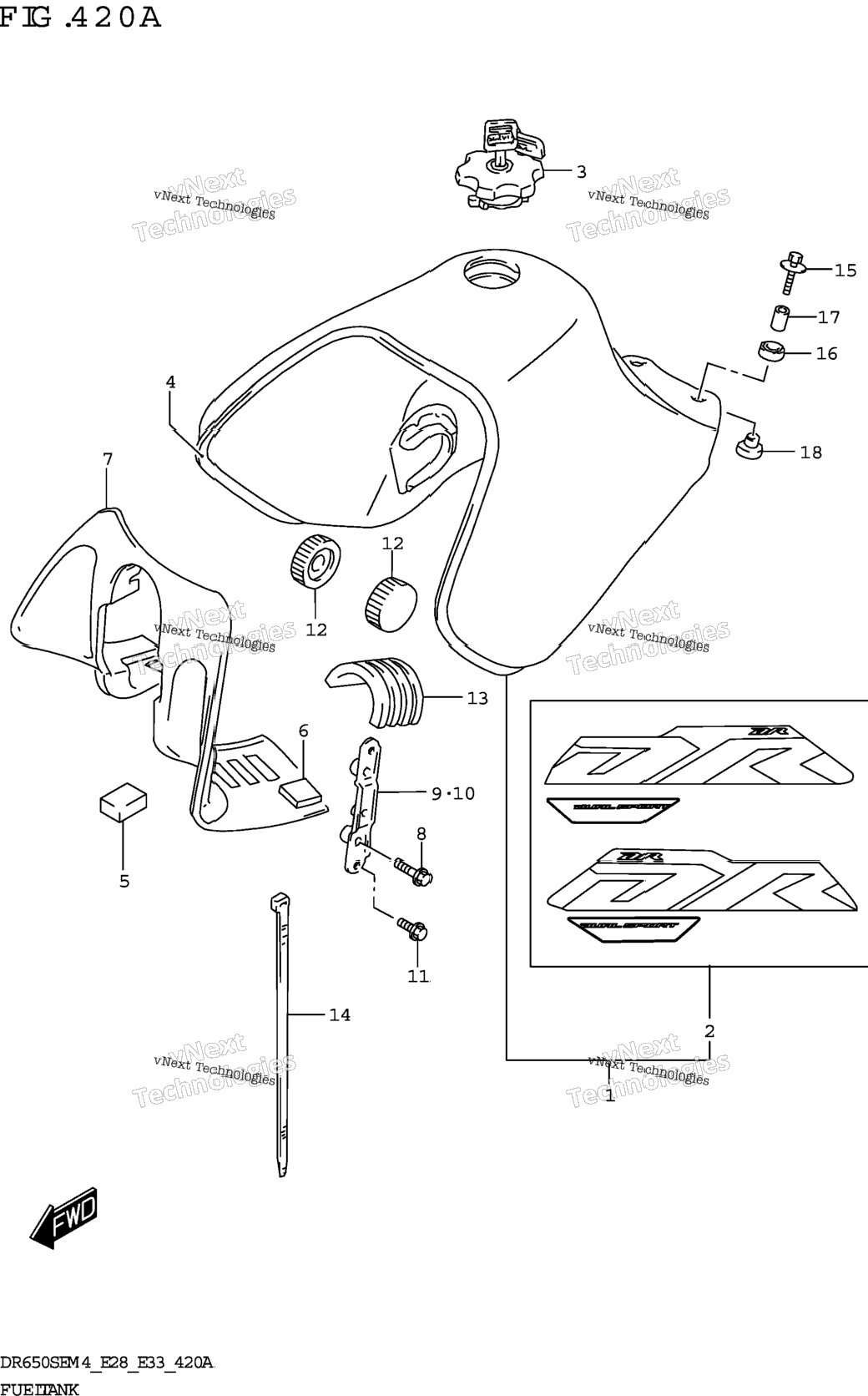

| 1-1 | 49100-32EA0-30H | TANK ASSY,FUEL (BLACK) BODY COLOR:30H | 1 шт. | — | |
|
| 1-2 | 49100-32EA0-019 | TANK ASSY,FUEL (WHITE) BODY COLOR:A8W | 1 шт. | — | |
|
| 2-1 | 68110-32EH0-CL2 | .TAPE SET,FUEL TANK K,WHITE) BODY COLOR:30H | 1 шт. | — | |
|
| 2-2 | 68110-32EH0-CL3 | .TAPE SET,FUEL TANK AY,BLACK) BODY COLOR:A8W | 1 шт. | — | |
|
| 3 | 44200-05821 | CAP SET FUEL TANK FILLER | 1 шт. | — | |
|
| 4 | 68241-32E00 | MOLDING,FUEL TANK | 1 шт. | — | |
|
| 5 | 63411-35B00 | CUSHION (20X40X10) | 2 шт. | — | |
|
| 6 | 44613-13600 | CUSHION (25X35X7) | 2 шт. | — | |
|
| 7 | 44271-32E00 | COVER,FUEL TANK,FRONT | 1 шт. | — | |
|
| 8 | 09116-06210 | BOLT (6X12) | 4 шт. | — | |
|
| 9 | 44280-32E10 | BRACKET, FRONT COVER RH | 1 шт. | — | |
|
| 10 | 44290-32E10 | BRACKET, FRONT COVER LH | 1 шт. | — | |
|
| 11 | 01550-0625A | BOLT | 4 шт. | — | |
|
| 12 | 44511-12D00 | CUSHION,FUEL TANK,FRONT | 2 шт. | — | |
|
| 13 | 44541-13E00 | CUSHION,FUEL TANK,UPPER | 1 шт. | — | |
|
| 14 | 09407-25402 | CLAMP (L:250) | 1 шт. | — | |
|
| 15 | 09116-06214 | BOLT (6X30) | 2 шт. | — | |
|
| 16 | 09320-14022 | CUSHION (14.5X24X8) | 2 шт. | — | |
|
| 17 | 09180-06271 | SPACER (6.5X9X18) | 2 шт. | — | |
|
| 18 | 09320-10071 | CUSHION (9X24X18) | 2 шт. | — | |
|
