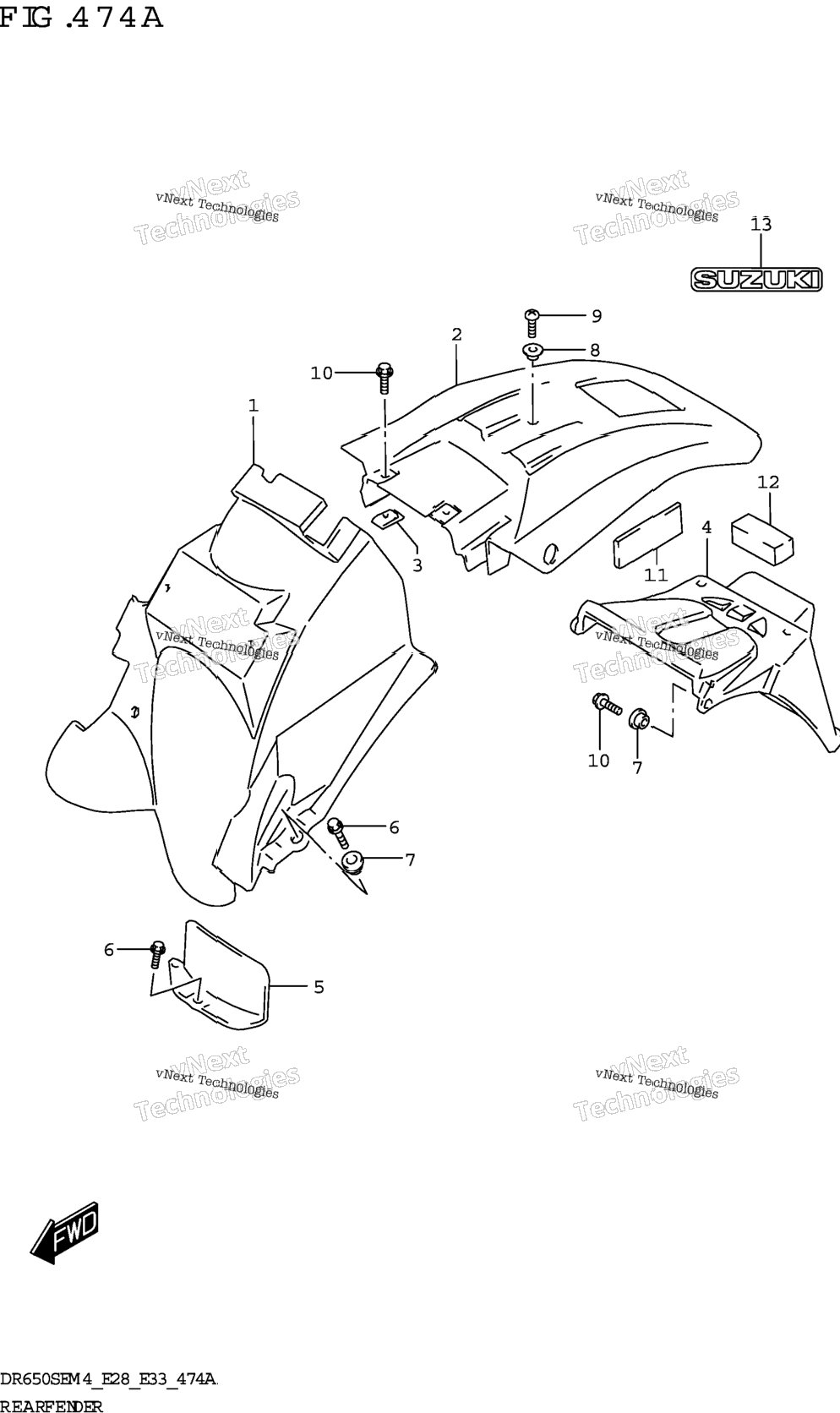

| 1 | 63112-32E00 | BODY,REAR FENDER FRONT | 1 шт. | — | |
|
| 2 | 63113-32E30-30H | BODY,RR FENDER RR (WHITE) BODY COLOR:30H | 1 шт. | — | |
|
| 3 | 63113-32E30-YUD | BODY,RR FENDER RR (GRAY) BODY COLOR:A8W | 1 шт. | — | |
|
| 4 | 47153-19C01 | PLATE,FRAME COVER | 2 шт. | — | |
|
| 5 | 63311-32E00 | EXTENSION,REAR FENDER | 1 шт. | — | |
|
| 6 | 63411-32E00 | MUD GUARD,REAR FENDER | 1 шт. | — | |
|
| 7 | 09113-06001 | BOLT (6X16) | 4 шт. | — | |
|
| 8 | 09169-06073 | WASHER (6.1X17.0X4.8) | 4 шт. | — | |
|
| 9 | 09169-06053 | WASHER | 1 шт. | — | |
|
| 10 | 09139-06024 | SCREW (6X16) | 1 шт. | — | |
|
| 11 | 01550-0616B | .BOLT | 6 шт. | — | |
|
| 12 | 63118-32E00 | CUSHION,REAR FENDER | 2 шт. | — | |
|
| 13 | 63119-32E00 | CUSHION,RR FENDER EXT | 1 шт. | — | |
|
| 14 | 68177-04A00-8YM | EMBLEM, "SUZUKI" (WHITE,BLACK /BLACK) BODY COLOR:30H | 1 шт. | — | |
|
| 15 | 68177-04A00-A8W | EMBLEM, "SUZUKI"(GRAY,BLACK) /GRAY) BODY COLOR:A8W | 1 шт. | — | |
|
