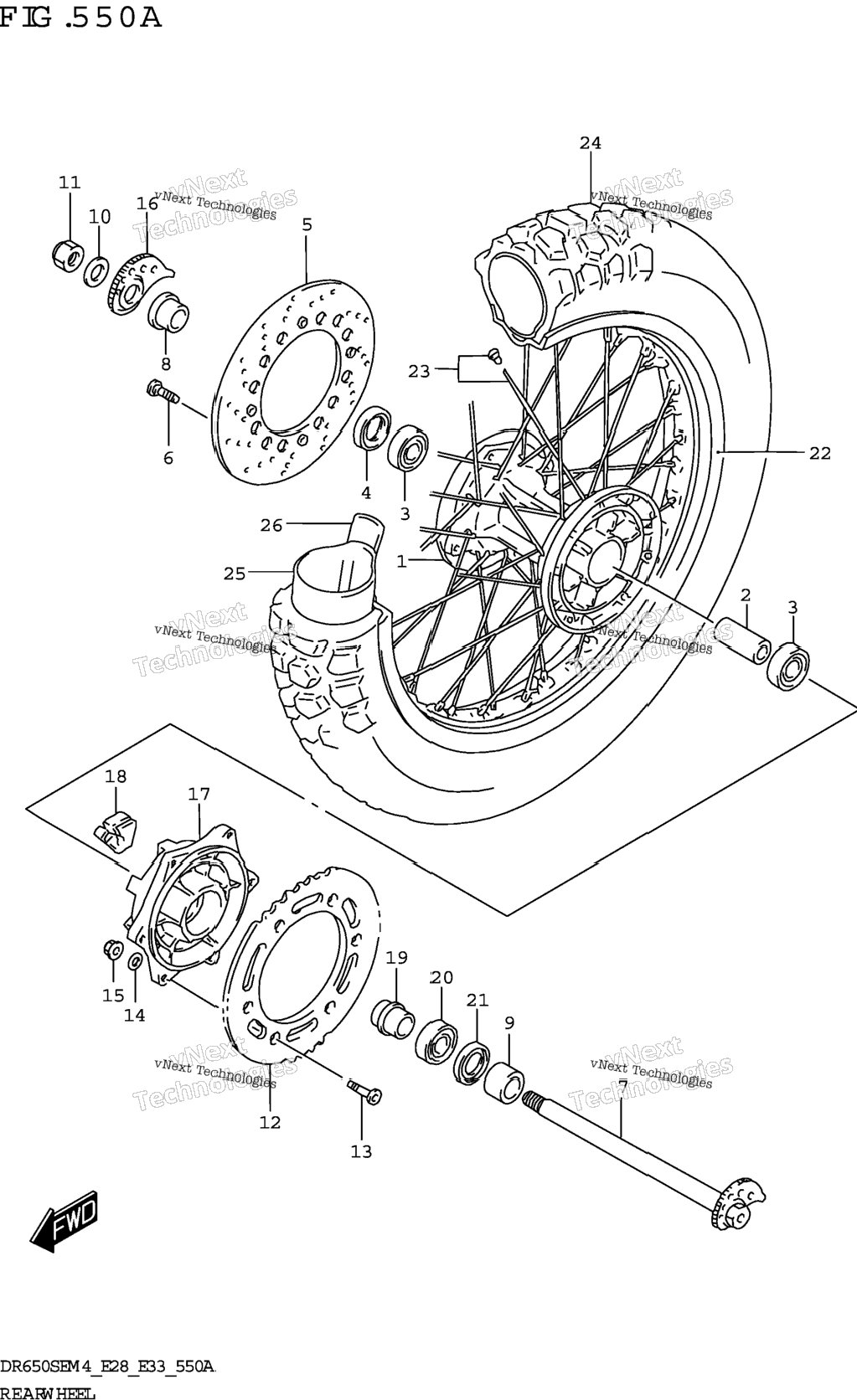

| 1 | 64111-15D10 | HUB,REAR WHEEL | 1 шт. | — | |
|
| 2 | 64731-15D00 | SPACER,RR HUB BEARING | 1 шт. | — | |
|
| 3 | 08123-6204B | BEARING | 2 шт. | — | |
|
| 4 | 09283-26019 | OIL SEAL (26X47X5) | 1 шт. | — | |
|
| 5 | 69211-32E01 | DISC,REAR BRAKE | 1 шт. | — | |
|
| 6 | 09106-08155 | BOLT (8X20) | 4 шт. | — | |
|
| 7 | 64710-32E00 | AXLE,REAR | 1 шт. | — | |
|
| 8 | 64741-05D00 | SPACER,REAR AXLE RH | 1 шт. | — | |
|
| 9 | 64751-15D00 | SPACER,REAR AXLE LH | 1 шт. | — | |
|
| 10 | 09160-19022 | WASHER (19X32X3.2) | 1 шт. | — | |
|
| 11 | 08319-2118A | NUT | 1 шт. | — | |
|
| 12 | 64511-32E00 | SPROCKET,REAR (NT:42) | 1 шт. | — | |
|
| 13 | 09120-08010 | BOLT (8X30.5) | 6 шт. | — | |
|
| 14 | 08322-0108B | WASHER | 6 шт. | — | |
|
| 15 | 08319-3108A | NUT | 6 шт. | — | |
|
| 16 | 61410-32E00 | ADJUSTER,CHAIN RH | 1 шт. | — | |
|
| 17 | 64611-15D01 | DRUM,REAR SPROCKET MOUNTING | 1 шт. | — | |
|
| 18 | 64651-32E00 | ABSORBER,REAR HUB SHOCK | 6 шт. | — | |
|
| 19 | 64733-15D00 | RETAINER,REAR SPROCKET DRUM | 1 шт. | — | |
|
| 20 | 08123-6205B | BEARING | 1 шт. | — | |
|
| 21 | 09283-34003 | OIL SEAL (34X52X6) | 1 шт. | — | |
|
| 22 | 65311-32E01 | RIM,RR WHEEL (17M/CXMT2.50) | 1 шт. | — | |
|
| 23 | 65320-32E00 | SPOKE SET,REAR WHEEL | 1 шт. | — | |
|
| 24 | 65110-32E01 | TIRE,REAR | 1 шт. | — | |
|
| 25 | 65200-32E01 | TUBE ASSY,WHEEL INNER | 1 шт. | — | |
|
| 26 | 65261-32E01 | PROTECTOR,WHEEL INNER TUBE | 1 шт. | — | |
|
