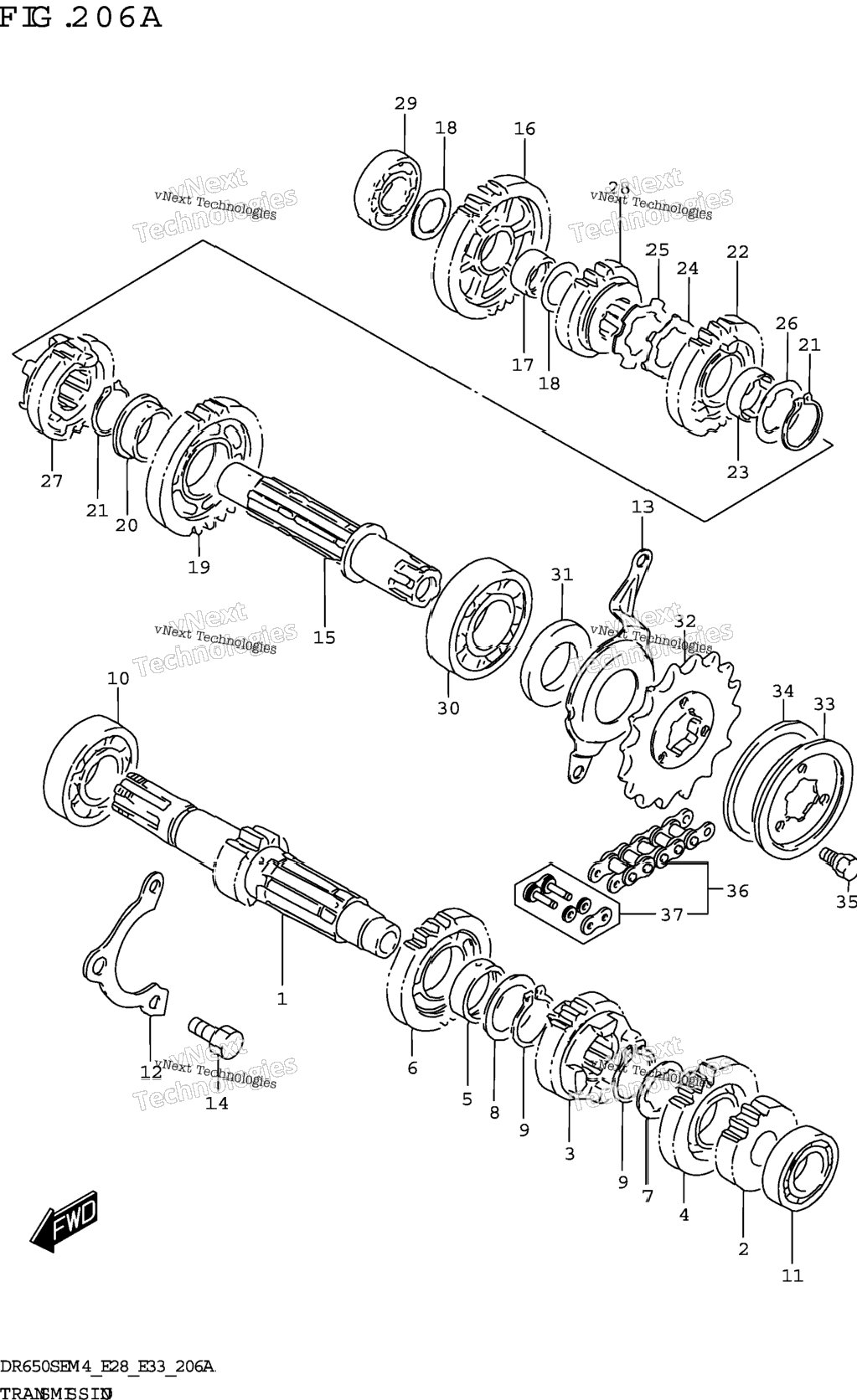

| 1 | 24120-14810 | SHAFT SET,CNTR (NT:12) | 1 шт. | — | |
|
| 2 | 24221-14A10 | GEAR,2ND DRIVE (NT:16) | 1 шт. | — | |
|
| 3 | 24231-12D21 | GEAR,3RD DRIVE (NT:21) | 1 шт. | — | |
|
| 4 | 24241-14A10 | GEAR,4TH DRIVE (NT:21) | 1 шт. | — | |
|
| 5 | 24252-19F00 | BUSH | 1 шт. | — | |
|
| 6 | 24251-14A10 | GEAR,5TH DRIVE (NT:23) | 1 шт. | — | |
|
| 7 | 09167-25012 | WASHER LOCK (25.1X31X1.0) | 1 шт. | — | |
|
| 8 | 09181-25167 | SHIM (25X34X1) | 1 шт. | — | |
|
| 9 | 09380-25003 | SNAP RING | 2 шт. | — | |
|
| 10 | 09262-22028 | BEARING (22X56X16) | 1 шт. | — | |
|
| 11 | 09262-17046 | BEARING (17X40X12) | 1 шт. | — | |
|
| 12 | 24741-14A00 | RETAINER,CNTR SHAFT BRG | 1 шт. | — | |
|
| 13 | 24751-32E00 | RETAINER,DRIVE SHAFT OIL SEAL | 1 шт. | — | |
|
| 14 | 01500-0816A | BOLT | 3 шт. | — | |
|
| 15 | 24130-14A10 | SHAFT,DRIVE | 1 шт. | — | |
|
| 16 | 24311-14A01 | GEAR,1ST DRIVEN (NT:29) | 1 шт. | — | |
|
| 17 | 09300-20032 | BUSH (20X24X13) | 1 шт. | — | |
|
| 18 | 09181-20195 | SHIM (20X30X1) | 2 шт. | — | |
|
| 19 | 24321-14A10 | GEAR,2ND DRIVEN (NT:26) | 1 шт. | — | |
|
| 20 | 09301-25002 | BUSH | 1 шт. | — | |
|
| 21 | 09380-25003 | SNAP RING | 2 шт. | — | |
|
| 22 | 24331-14A20 | GEAR,3RD DRIVEN (NT:26) | 1 шт. | — | |
|
| 23 | 24332-24510 | BUSH, DRIVEN GEAR | 1 шт. | — | |
|
| 24 | 09169-25001 | WASHER (25.1X37X2.5) | 1 шт. | — | |
|
| 25 | 09167-25013 | WASHER,LOCK (25.1X41X1.5) | 1 шт. | — | |
|
| 26 | 09167-25016 | WASHER,LOCK (25.5X35X1) | 1 шт. | — | |
|
| 27 | 24341-14A10 | GEAR,4TH DRIVEN (NT:21) | 1 шт. | — | |
|
| 28 | 24351-14A10 | GEAR,5TH DRIVEN (NT:19) | 1 шт. | — | |
|
| 29 | 09262-20059 | BEARING (20X42X12) | 1 шт. | — | |
|
| 30 | 09262-25125 | BEARING (25X62X17) | 1 шт. | — | |
|
| 31 | 09283-25108 | OIL SEAL (25X44X7) | 1 шт. | — | |
|
| 32 | 27511-31D00 | SPROCKET,ENGINE (NT:15) | 1 шт. | — | |
|
| 33 | 27512-44B00 | PLATE,ENGINE SPROCKET | 1 шт. | — | |
|
| 34 | 27517-37400 | DAMPER | 1 шт. | — | |
|
| 35 | 09111-06039 | BOLT (6X13) | 3 шт. | — | |
|
| 36 | 27600-32C90-110 | CHAIN, DRIVE | 1 шт. | — | |
|
| 37 | 27620-32C90 | .JOINT SET, CHAIN | 1 шт. | — | |
|
