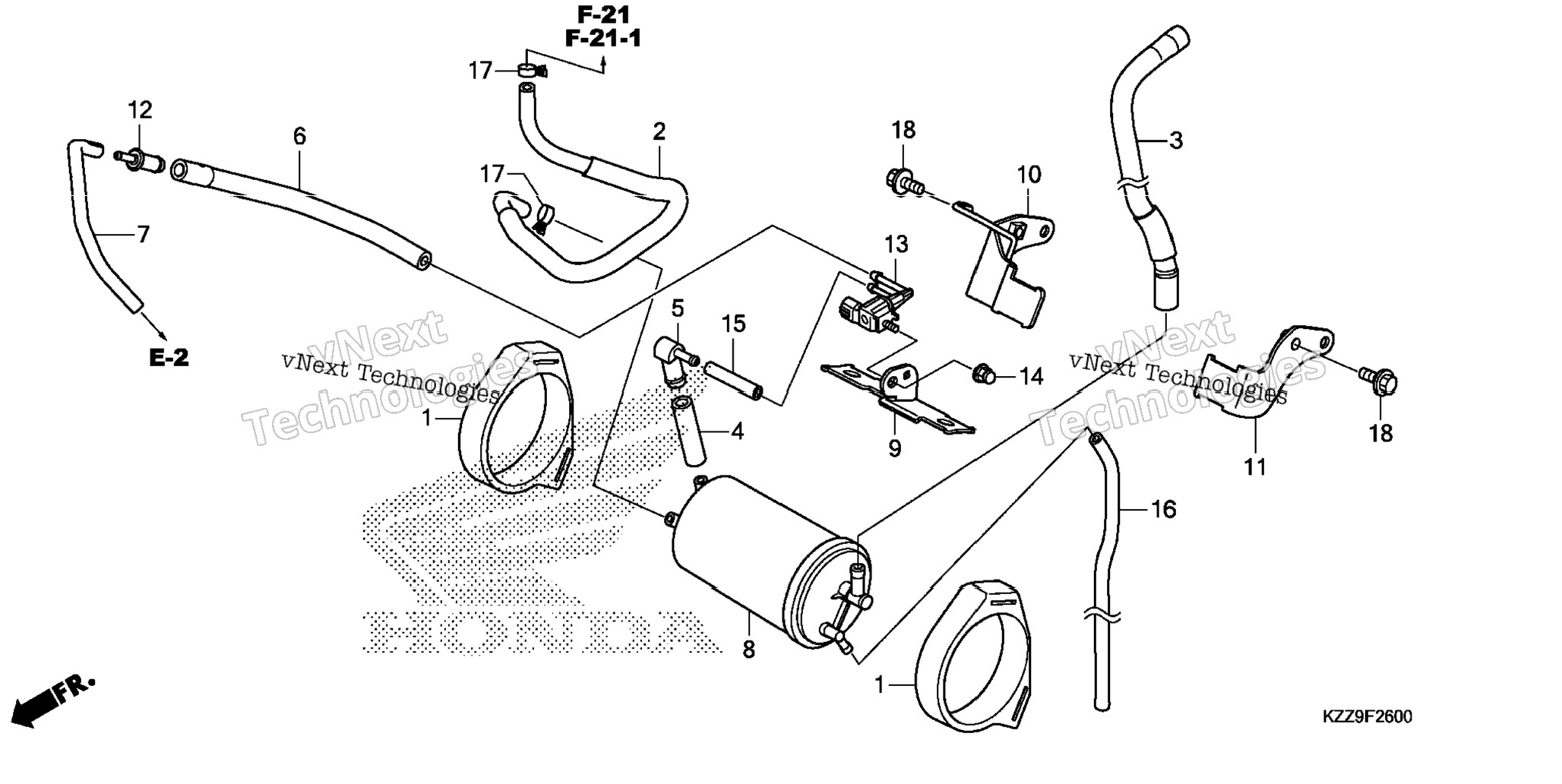

| 1 | 17411-KZZ-900 | RUBBER, CANISTER MOUNT | 2 шт. | — | |
|
| 2 | 17412-KZZ-910 | TUBE, CHARGE | 1 шт. | — | |
|
| 3 | 17413-KZZ-J00 | TUBE, AIR | 1 шт. | — | |
|
| 4 | 17414-KZZ-900 | TUBE, FUEL (9X45) | 1 шт. | — | |
|
| 5 | 17415-KZZ-900 | JOINT, TUBE | 1 шт. | — | |
|
| 6 | 17416-KZZ-J00 | TUBE A (PCV-ENGINE) | 1 шт. | — | |
|
| 7 | 17417-KZZ-J00 | TUBE B (PCV-ENGINE) | 1 шт. | — | |
|
| 8 | 17421-KYJ-902 | CANISTER | 1 шт. | — | |
|
| 9 | 17430-KZZ-900 | STAY, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 10 | 17450-KZZ-J00 | STAY, R. CANISTER | 1 шт. | — | |
|
| 11 | 17460-KZZ-J00 | STAY, L. CANISTER | 1 шт. | — | |
|
| 12 | 19126-KM1-010 | JOINT, TUBE | 1 шт. | — | |
|
| 13 | 36162-HW5-901 | VALVE, CONTROL SOLENOID (P2) (Honda Code 8954869) | 1 шт. | — | |
|
| 14 | 90304-KZZ-900 | NUT, HEX. CAP (6MM) | 1 шт. | — | |
|
| 15 | 95001-35003-60M | BULK HOSE, FUEL (3.5X3000) (95001-3500(95001-35001-60M) | 1 шт. | — | |
|
| 16 | 95001-45003-60M | BULK HOSE, FUEL (4.5X3000) (95001-4500(95001-45001-60M) | 1 шт. | — | |
|
| 17 | 95002-40800-08 | CLAMP, TUBE (D8) | 2 шт. | — | |
|
| 18 | 96300-06014-00 | BOLT, FLANGE (6X14) | 2 шт. | — | |
|
