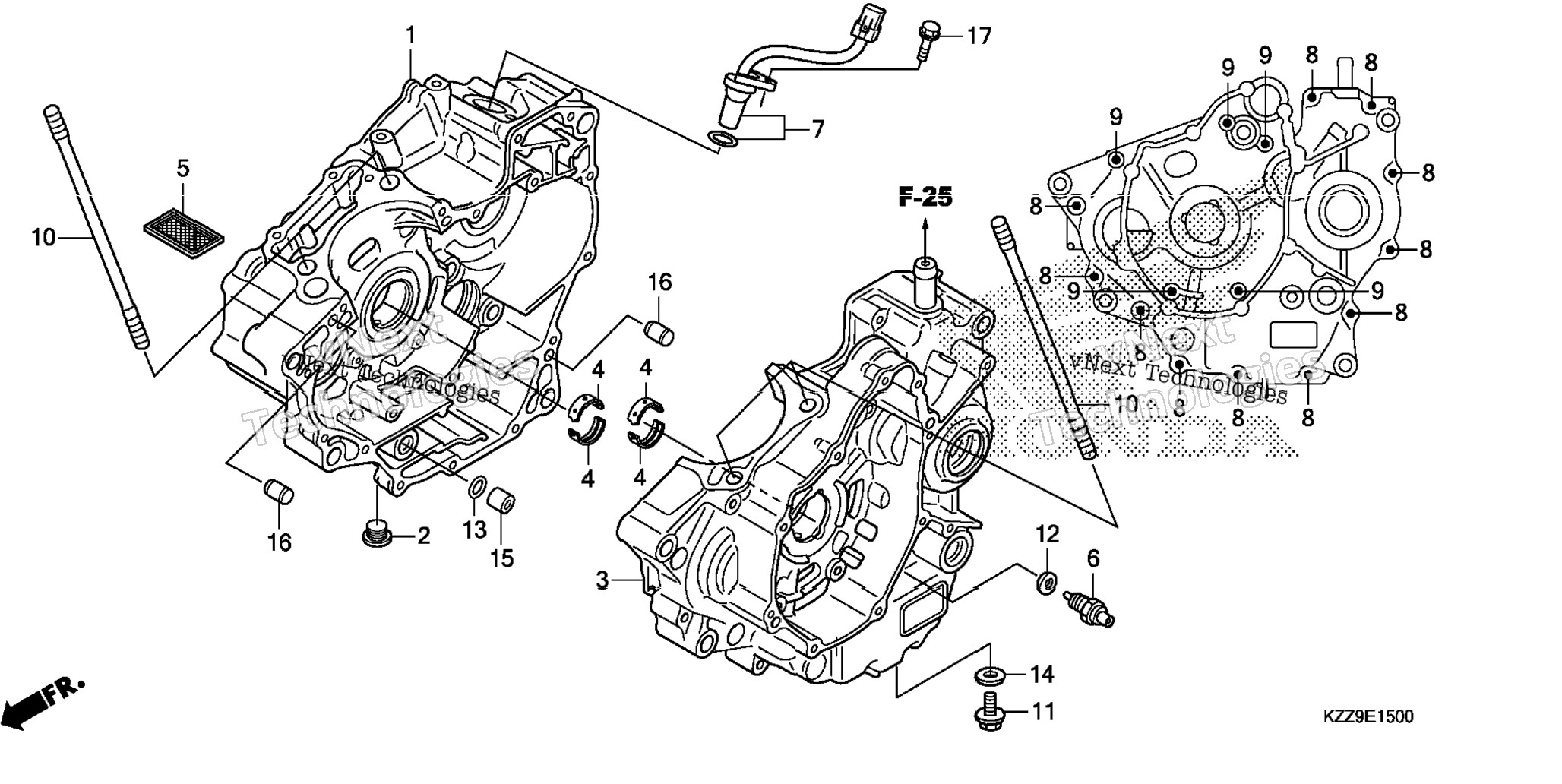

| 1 | 11100-KZZ-900 | CRANKCASE, R. | 1 шт. | — | |
|
| 2 | 11107-KYJ-900 | BOLT, SEALING (16MM) | 1 шт. | — | |
|
| 3 | 11200-KZZ-900 | CRANKCASE, L. | 1 шт. | — | |
|
| 4 | 13312-K33-D01 | BEARING A, CRANKSHAFT (BLUE) | 4 шт. | — | |
|
| 4 | 13313-K33-D01 | BEARING B, CRANKSHAFT (BLACK) | 4 шт. | — | |
|
| 4 | 13314-K33-D01 | BEARING C, CRANKSHAFT (BROWN) | 4 шт. | — | |
|
| 4 | 13315-K33-305 | BEARING D, CRANKSHAFT (OVER SIZE) (RED) (Optional). | 4 шт. | — | |
|
| 4 | 13316-K33-305 | BEARING E, CRANKSHAFT (OVER SIZE) (GREEN) (Optional). | 4 шт. | — | |
|
| 4 | 13317-K33-305 | BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW) (Optional). | 4 шт. | — | |
|
| 4 | 13318-K33-305 | BEARING G, CRANKSHAFT (OVER SIZE) (PINK) (Optional). | 4 шт. | — | |
|
| 5 | 15421-KYJ-900 | SCREEN, OIL FILTER | 1 шт. | — | |
|
| 6 | 35600-HA0-003 | SWITCH ASSY., NEUTRAL (TOYO) | 1 шт. | — | |
|
| 7 | 37700-KZZ-901 | SENSOR ASSY., SPEED | 1 шт. | — | |
|
| 8 | 90014-KYJ-900 | BOLT, FLANGE (6X40) (NSHF) | 11 шт. | — | |
|
| 9 | 90016-KYJ-900 | BOLT, FLANGE (6X70) (NSHF) | 5 шт. | — | |
|
| 10 | 90032-K33-D00 | BOLT, STUD (10X178) | 4 шт. | — | |
|
| 11 | 90061-KYJ-900 | BOLT, DRAIN PLUG (12MM) | 1 шт. | — | |
|
| 12 | 90443-KR0-000 | WASHER, NEUTRAL SWITCH | 1 шт. | — | |
|
| 13 | 91301-KYJ-901 | O-RING (11.8X1.9) | 1 шт. | — | |
|
| 14 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 1 шт. | — | |
|
| 15 | 94301-12160 | PIN A, DOWEL (12X16) | 1 шт. | — | |
|
| 16 | 94302-08140 | PIN B, DOWEL (8X14) | 2 шт. | — | |
|
| 17 | 95701-06018-00 | BOLT, FLANGE (6X18) BOLT, HEX. (6X18) | 1 шт. | — | |
|
