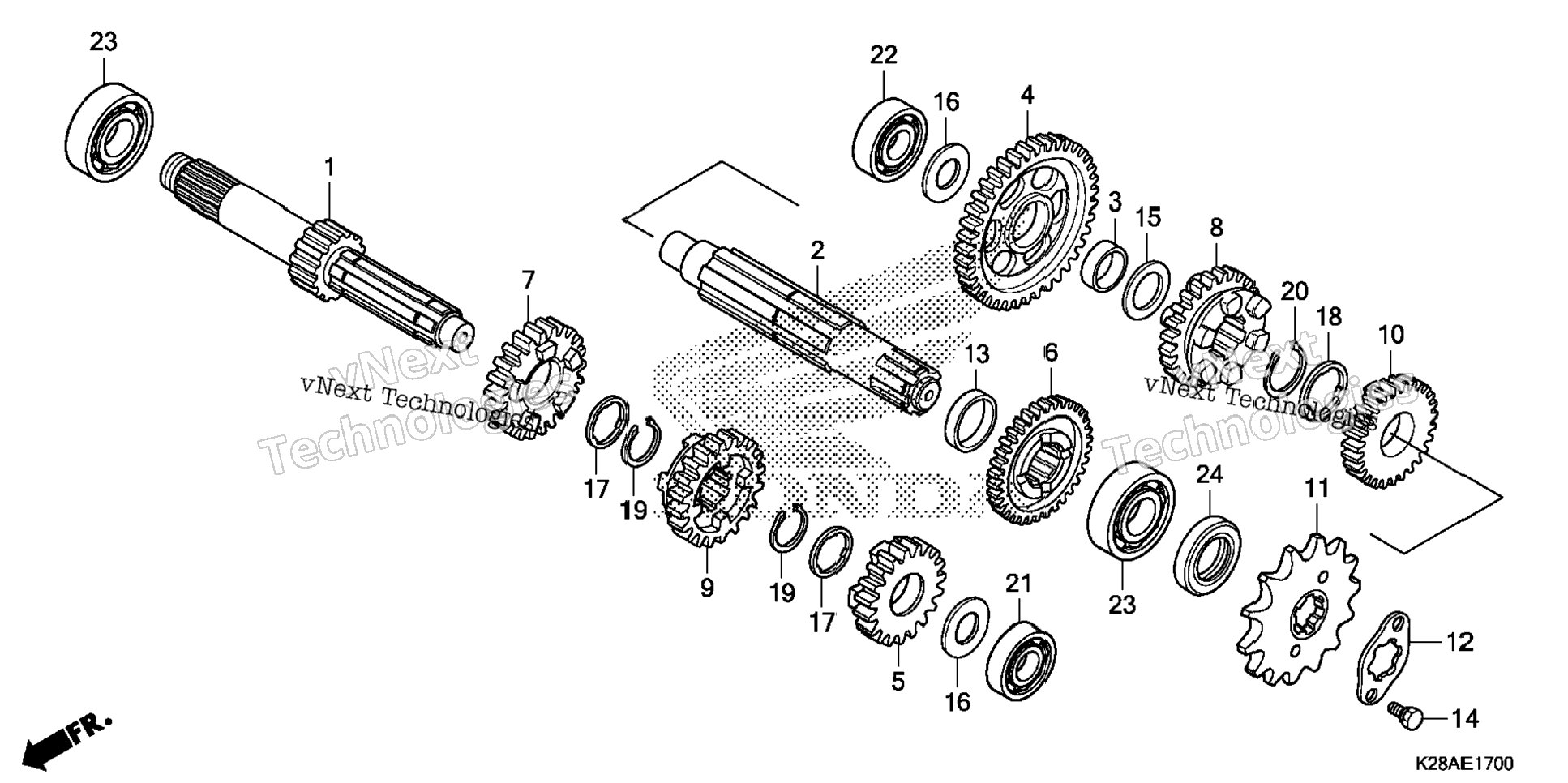

| 1 | 23211-KYY-900 | MAINSHAFT (11T) | 1 шт. | — | |
|
| 2 | 23221-KYY-900 | COUNTERSHAFT | 1 шт. | — | |
|
| 3 | 23415-KPH-900 | BUSH (15MM) | 1 шт. | — | |
|
| 4 | 23421-KYY-900 | GEAR, COUNTERSHAFT FIRST (35T) | 1 шт. | — | |
|
| 5 | 23431-KYY-900 | GEAR, MAINSHAFT SECOND (17T) | 1 шт. | — | |
|
| 6 | 23441-KYY-900 | GEAR, COUNTERSHAFT SECOND (29T) | 1 шт. | — | |
|
| 7 | 23451-KYY-901 | GEAR, MAINSHAFT THIRD (21T) | 1 шт. | — | |
|
| 8 | 23461-KYY-901 | GEAR, COUNTERSHAFT THIRD (26T) | 1 шт. | — | |
|
| 9 | 23471-KYY-901 | GEAR, MAINSHAFT FOURTH (24T) | 1 шт. | — | |
|
| 10 | 23481-KYY-901 | GEAR, COUNTERSHAFT FOURTH (22T) | 1 шт. | — | |
|
| 11 | 23801-K28-910 | SPROCKET, DRIVE (13T) | 1 шт. | — | |
|
| 12 | 23802-K28-910 | PLATE, FIXING | 1 шт. | — | |
|
| 13 | 23911-KWS-900 | COLLAR (20MM) | 1 шт. | — | |
|
| 14 | 90084-041-000 | BOLT, DRIVE SPROCKET FIXING | 2 шт. | — | |
|
| 15 | 90412-187-000 | WASHER, THRUST (15MM) | 1 шт. | — | |
|
| 16 | 90412-KPH-900 | WASHER, SPECIAL (12X23) | 2 шт. | — | |
|
| 17 | 90461-035-000 | WASHER, SPLINE (17MM) | 2 шт. | — | |
|
| 18 | 90461-459-010 | WASHER, SPLINE (20MM) | 1 шт. | — | |
|
| 19 | 90601-KYY-900 | CIRCLIP (17MM) | 2 шт. | — | |
|
| 20 | 90602-KYY-900 | CIRCLIP (20MM) | 1 шт. | — | |
|
| 21 | 91013-KZV-J01 | BEARING, RADIAL BALL (6001) | 1 шт. | — | |
|
| 22 | 96100-60010-00 | BEARING, RADIAL BALL (6001) | 1 шт. | — | |
|
| 23 | 91014-KZV-J01 | BEARING, RADIAL BALL (6201) | 1 шт. | — | |
|
| 24 | 91015-KZV-J01 | BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00) | 0 шт. | — | |
|
| 25 | 91204-KWB-601 | OIL SEAL (17X29X5) | 1 шт. | — | |
|
