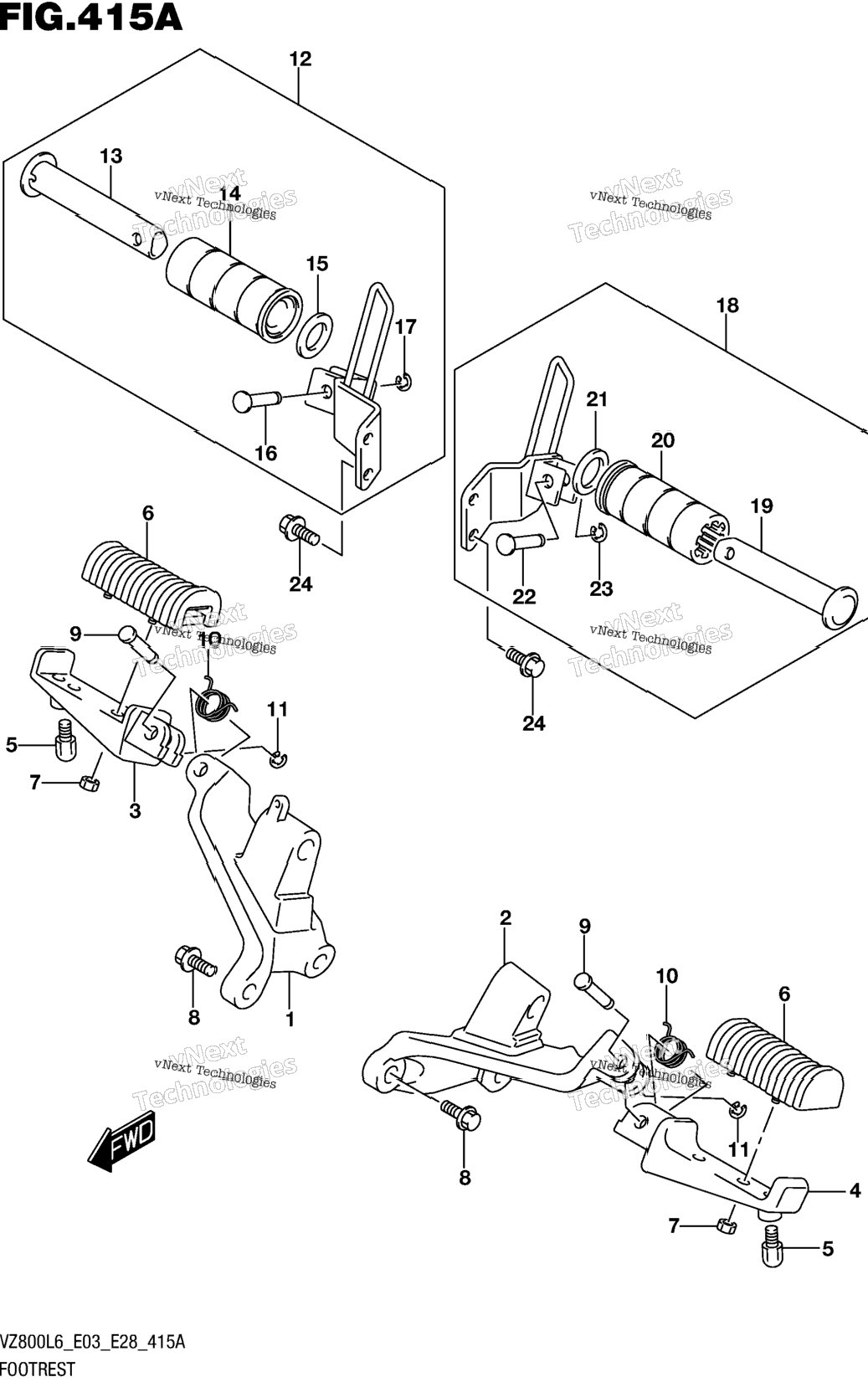

| 1 | 43511-41F00 | BRACKET, FRONT FOOTREST RH | 1 шт. | — | |
|
| 2 | 43521-41F10 | BRACKET, FRONT FOOTREST LH | 1 шт. | — | |
|
| 3 | 43531-41F02 | BAR, FRONT RH | 1 шт. | — | |
|
| 4 | 43541-41F02 | BAR, FRONT LH | 1 шт. | — | |
|
| 5 | 43576-07D01 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 6 | 43550-41F00 | RUBBER, FRONT FOOTREST | 2 шт. | — | |
|
| 7 | 08319-2106B | .NUT | 4 шт. | — | |
|
| 8 | 01580-1030B | BOLT | 4 шт. | — | |
|
| 9 | 09208-08010 | PIN (8X33.2) | 2 шт. | — | |
|
| 10 | 09448-18022 | SPRING | 2 шт. | — | |
|
| 11 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 12 | 43600-41F60 | FOOTREST ASSY, PILLION RH | 1 шт. | — | |
|
| 18 | 43700-41F60 | FOOTREST ASSY, PILLION LH | 1 шт. | — | |
|
| 19 | 43610-39G10 | .BAR,PILLION FOOTREST | 1 шт. | — | |
|
| 19 | 43610-39G10 | .BAR,PILLION FOOTREST | 1 шт. | — | |
|
| 20 | 43612-39G00 | .RUBBER | 1 шт. | — | |
|
| 20 | 43612-39G00 | .RUBBER | 1 шт. | — | |
|
| 21 | 09160-19024 | .WASHER (19.5X32X2) | 1 шт. | — | |
|
| 21 | 09160-19024 | .WASHER (19.5X32X2) | 1 шт. | — | |
|
| 22 | 43636-25D00 | .PIN | 1 шт. | — | |
|
| 22 | 43636-25D00 | .PIN | 1 шт. | — | |
|
| 23 | 08332-1104B | .E RING | 1 шт. | — | |
|
| 23 | 08332-1104B | .E RING | 1 шт. | — | |
|
| 24 | 09103-08412 | BOLT (8X16) | 4 шт. | — | |
|
