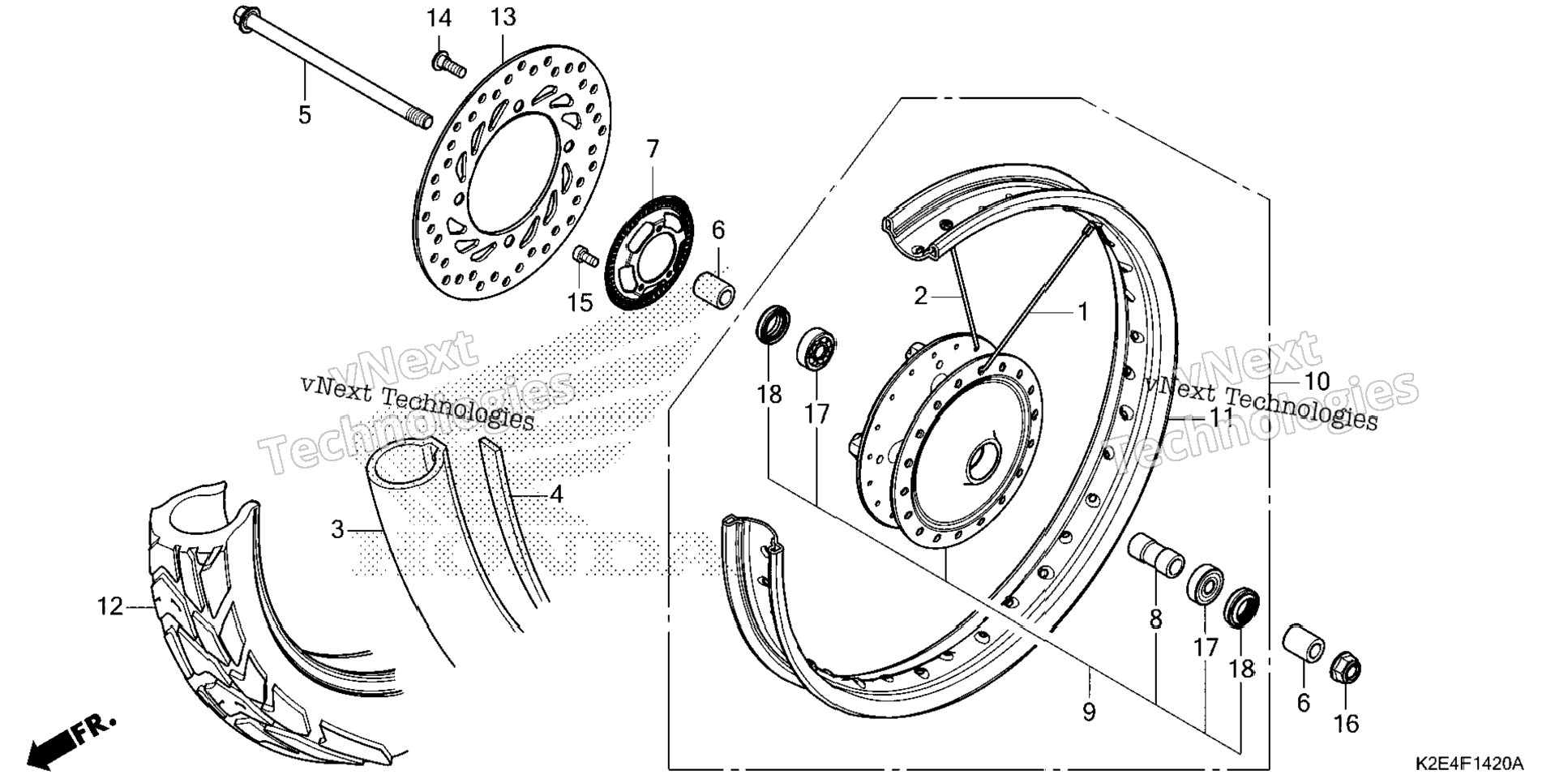

| 1 | 06440-K2E-T00 | SPOKE SET (A11X156) (INSIDE) | 18 шт. | — | |
|
| 2 | 06441-K2E-T00 | SPOKE SET (A11X156.5) (OUTSIDE) | 18 шт. | — | |
|
| 3 | 42712-K2E-T01 | TUBE, TIRE (IRC) | 1 шт. | — | |
|
| 4 | 42712-K2E-T02 | TUBE, TIRE | 1 шт. | — | |
|
| 5 | 42713-102-005 | FLAP, TIRE (17) (INOUE) FLAP, TIRE (17) (NITTO) | 1 шт. | — | |
|
| 6 | 44301-KZV-L00 | AXLE, FR. WHEEL | 1 шт. | — | |
|
| 7 | 44311-K0G-900 | COLLAR, FR. WHEEL SIDE | 2 шт. | — | |
|
| 8 | 44515-K26-C10 | RING, FR. PULSER | 1 шт. | — | |
|
| 9 | 44620-K0G-900 | COLLAR, FR. AXLE DISTANCE | 1 шт. | — | |
|
| 10 | 44635-K2E-T00ZA | HUB SUB-ASSY., FR. *NH303M* (MAT AXIS GRAY METALLIC) | 1 шт. | — | |
|
| 11 | 44650-K2E-T01ZA | WHEEL SUB-ASSY., FR. *NH303M* (MAT AXIS GRAY METALLIC) | 1 шт. | — | |
|
| 12 | 44701-K2E-T01 | RIM, FR. WHEEL (17X1.60) | 1 шт. | — | |
|
| 13 | 44711-K88-B02 | TIRE, FR. (80/90-17M/C 44P) (IRC) | 1 шт. | — | |
|
| 14 | 45251-K2E-T01 | DISK, FR. BRAKE (NHK) | 1 шт. | — | |
|
| 15 | 90105-KGH-900 | BOLT, BRAKE DISK (8X24) | 4 шт. | — | |
|
| 16 | 90131-KPB-751 | BOLT, TORX (5X10) | 3 шт. | — | |
|
| 17 | 90306-KWN-701 | NUT, U (12MM) | 1 шт. | — | |
|
| 18 | 91052-K03-N41 | BEARING, RADIAL BALL (6201U L) (SKF) | 2 шт. | — | |
|
| 19 | 91052-K24-901 | BEARING, RADIAL BALL (6201U L) (NSK) | 2 шт. | — | |
|
| 20 | 91052-K24-902 | BRG,BALL RADIAL 6 | 2 шт. | — | |
|
| 21 | 91052-K24-903 | BRG,BALL RADIAL 6 | 2 шт. | — | |
|
| 22 | 91052-K24-904 | BEARING,BALL RADI | 2 шт. | — | |
|
| 23 | 91251-KZR-601 | DUST SEAL (21X32X5) (ARAI) | 2 шт. | — | |
|
