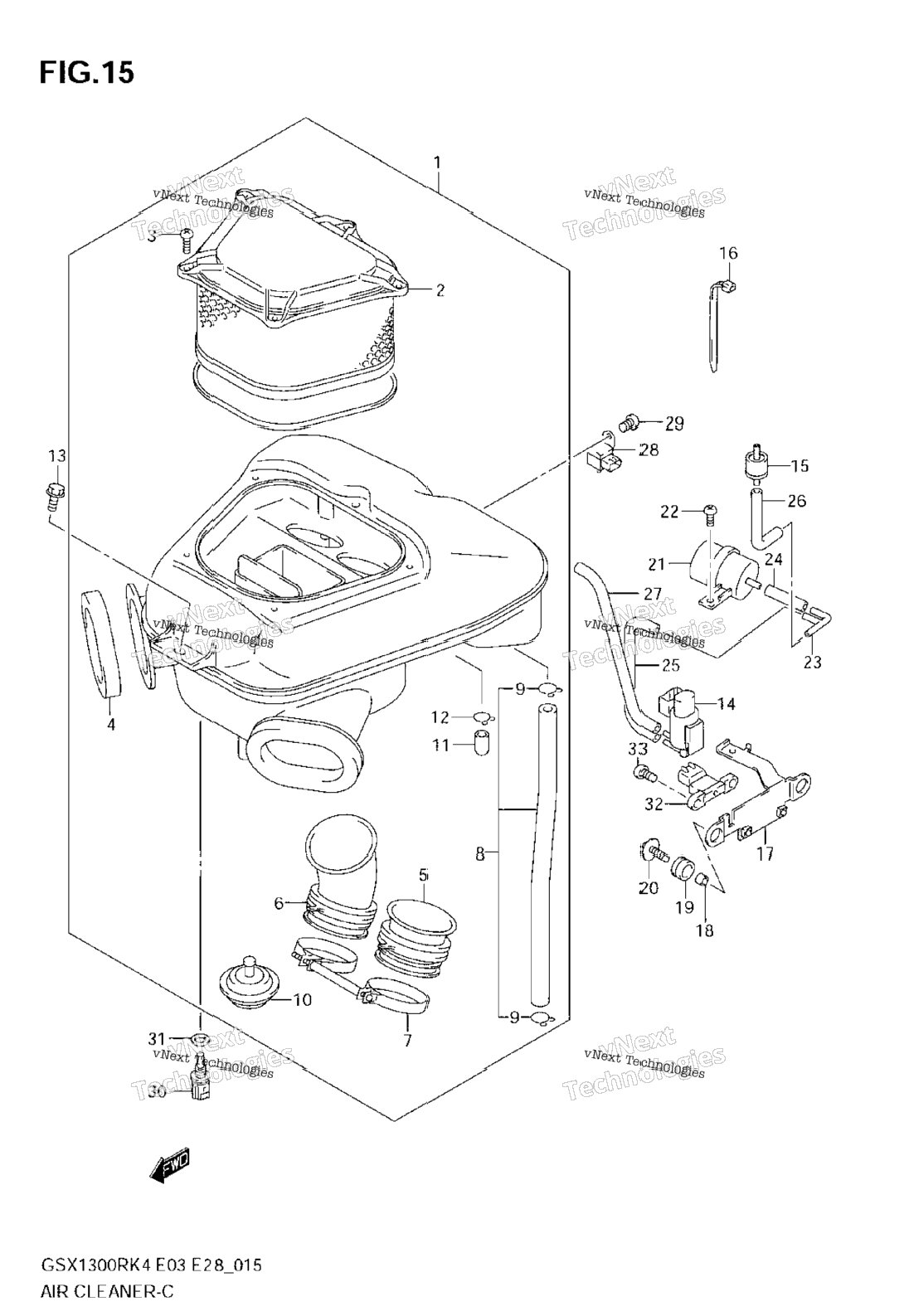

| 1 | 13700-24F03 | CLEANER ASSY, AIR Includes Item(s) 2 - 12 | 0 шт. | — | |
|
| 2 | 13780-24F02 | FILTER ASSY | 1 шт. | — | |
|
| 3 | 13831-21F00 | SCREW | 5 шт. | — | |
|
| 4 | 13736-24F01 | CUSHION, DUCT | 1 шт. | — | |
|
| 5 | 13881-33E50 | TUBE, OUTLET | 2 шт. | — | |
|
| 6 | 13881-24F00 | TUBE, OUTLET | 2 шт. | — | |
|
| 7 | 13826-33E51 | CLAMP | 2 шт. | — | |
|
| 8 | 13850-24F10 | TUBE, BREATHER | 1 шт. | — | |
|
| 9 | 09401-14301 | CLIP | 2 шт. | — | |
|
| 10 | 13895-24F00 | DIAPHRAGM, CONT VALVE | 1 шт. | — | |
|
| 11 | 13859-41B10 | ..PLUG | 1 шт. | — | |
|
| 12 | 09401-14301 | CLIP | 1 шт. | — | |
|
| 13 | 09116-06130 | BOLT (6X16) | 1 шт. | — | |
|
| 14 | 18115-70G10 | VALVE ASSY, SOLENOID | 1 шт. | — | |
|
| 15 | 95569-78040 | VALVE, CHECK | 1 шт. | — | |
|
| 16 | 09407-11401 | CLAMP, CHECK VALVE | 1 шт. | — | |
|
| 17 | 18119-33E00 | BRACKET, SOLENOID VALVE | 0 шт. | — | |
|
| 18 | 09180-06257 | SPACER | 2 шт. | — | |
|
| 19 | 09320-09036 | CUSHION | 2 шт. | — | |
|
| 20 | 09116-06115 | BOLT | 2 шт. | — | |
|
| 21 | 13715-02F00 | CHAMBER, VACUUM | 0 шт. | — | |
|
| 22 | 02142-05123 | SCREW | 1 шт. | — | |
|
| 23 | 09367-04009 | 3 WAY | 1 шт. | — | |
|
| 24 | 09355-40805-600 | HOSE, VACUUM CHAMBER TO 3 WAY (4X8X600) L:600!40 | 1 шт. | — | |
|
| 25 | 09355-40805-600 | HOSE, 3 WAY TO SOLENOID (4X8X600) L:600!150 | 1 шт. | — | |
|
| 26 | 09355-40805-600 | HOSE, CHECK VALVE TO 3 WAY (4X8X600) L:600!100 | 1 шт. | — | |
|
| 27 | 09355-40805-600 | HOSE, SOLENOID TO CLEANER (4X8X600) L:600!400 | 1 шт. | — | |
|
| 28 | 15620-02F00 | SENSOR, BOOST | 1 шт. | — | |
|
| 29 | 02142-06103 | BOLT | 1 шт. | — | |
|
| 30 | 13650-61B00 | SENSOR, AIR TEMPERATURE | 1 шт. | — | |
|
| 31 | 09168-12017 | GASKET | 1 шт. | — | |
|
| 32 | 18590-81A00 | SENSOR, AIR PRESSURE | 1 шт. | — | |
|
| 33 | 02142-06123 | BOLT | 2 шт. | — | |
|
