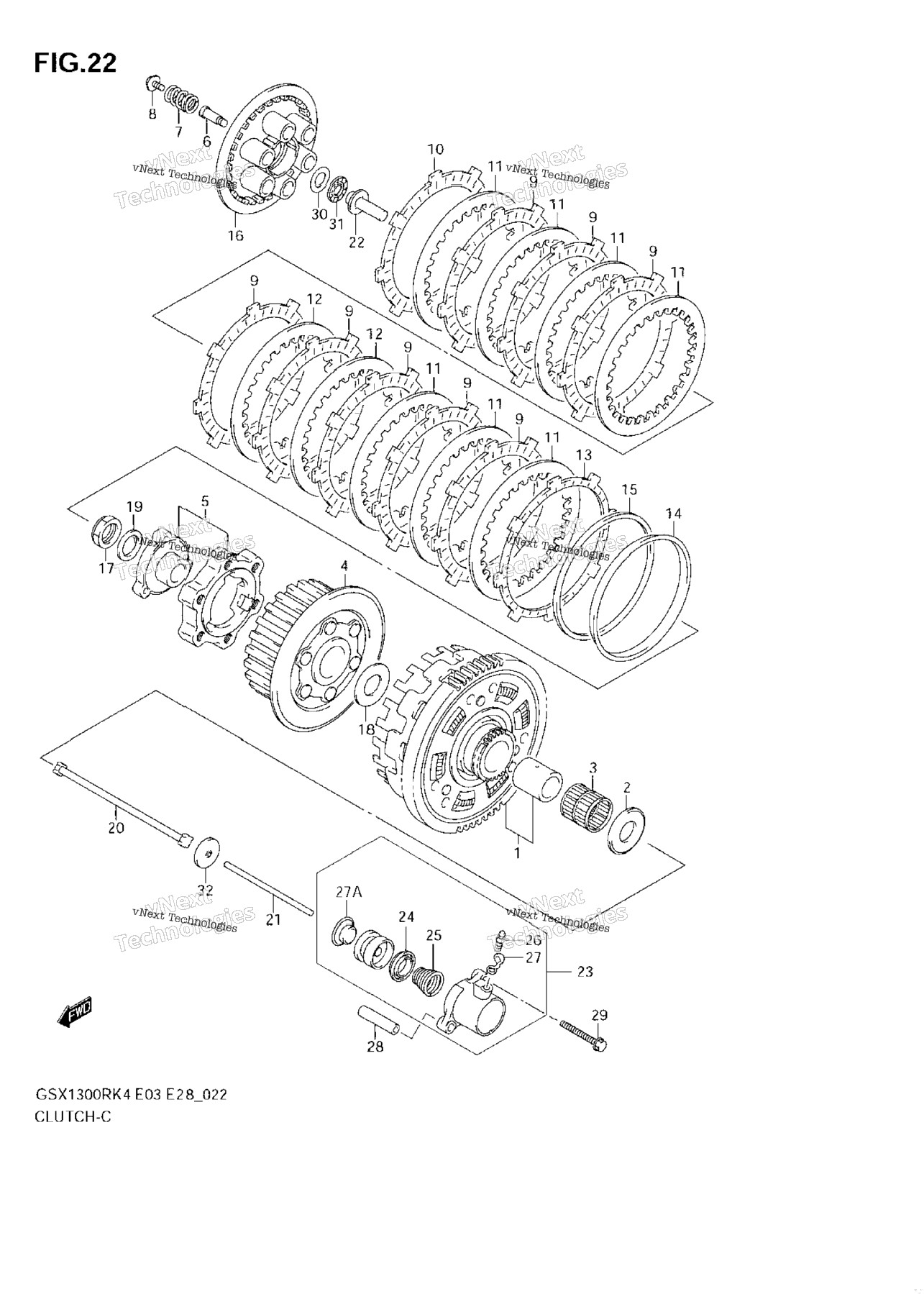

| 1 | 21200-24830 | GEAR ASSY, PRIMARY DRIVEN | 1 шт. | — | |
|
| 2 | 09160-25037 | WASHER (25X54X2.5) | 1 шт. | — | |
|
| 3 | 09263-35013 | BEARING (35X40X39.8) | 1 шт. | — | |
|
| 4 | 21410-24F00 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21610-02F12 | CAM SET, CLUTCH | 1 шт. | — | |
|
| 6 | 21481-02F12 | BOLT, SPRING SUPPORT | 6 шт. | — | |
|
| 7 | 21413-24F10 | SPRING, CLUTCH | 6 шт. | — | |
|
| 8 | 21482-02F12 | BOLT, CLUTCH SPRING | 6 шт. | — | |
|
| 9 | 21441-24F20 | PLATE, CLUTCH DRIVE, NO.1 T:3.0 | 8 шт. | — | |
|
| 10 | 21441-24F10 | PLATE, CLUTCH DRIVE, NO.2 T:3.8 | 1 шт. | — | |
|
| 11 | 21451-24F00 | PLATE,CLUTCH DRIVEN NO.1 (T:2 T:2.0 | 7 шт. | — | |
|
| 12 | 21451-24F10 | PLATE, CLUTCH DRIVEN NO.2 T:2.3 | 2 шт. | — | |
|
| 13 | 21442-24F00 | PLATE, CLUTCH DRIVE NO.3 T:3.8 | 1 шт. | — | |
|
| 14 | 21471-24F00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 15 | 21472-24F00 | WASHER, CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 16 | 21462-24F00 | DISK, CLUTCH PRESSURE | 1 шт. | — | |
|
| 17 | 09159-24010 | NUT, CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 18 | 09160-25056 | WASHER (25X50X25) | 1 шт. | — | |
|
| 19 | 09164-24006 | WASHER (24.2X35X2) | 1 шт. | — | |
|
| 20 | 23110-24F00 | ROD, CLUTCH PUSH, RH | 1 шт. | — | |
|
| 21 | 23111-26D00 | ROD, CLUTCH PUSH, LH | 1 шт. | — | |
|
| 22 | 23121-31E00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 23 | 23160-06B10 | CYLINDER, CLUTCH RELEASE Includes Item(s) 24 - 27A | 1 шт. | — | |
|
| 24 | 23163-06B00 | CUP | 1 шт. | — | |
|
| 25 | 23164-05A00 | SPRING | 1 шт. | — | |
|
| 26 | 59121-01A00 | BLEEDER | 1 шт. | — | |
|
| 27 | 59122-01A00 | CAP, BLEEDER | 1 шт. | — | |
|
| 27A | 23166-02F20 | COVER, DUST | 1 шт. | — | |
|
| 28 | 04211-09129 | PIN, CL RLSE CYL | 2 шт. | — | |
|
| 29 | 07130-0625B | BOLT, CL RLSE CYL | 2 шт. | — | |
|
| 30 | 09160-15045 | WASHER, CLUTCH PUSH 15.5X28X1 | 1 шт. | — | |
|
| 31 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 32 | 09285-06015 | SEAL (6X34X5.5) | 1 шт. | — | |
|
