Under Cowling (Gsx1300rk6)

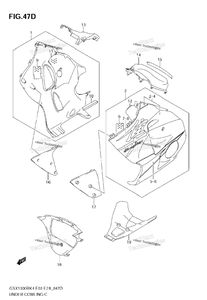

Схема Under Cowling (Gsx1300rk6)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 94407-24F10-YU7 | COWL ASSY, UNDER RH (RED) | 0 шт. | — | |
| 2 | 94408-24F10-YU7 | COWL ASSY, UNDER LH (RED) Includes Item(s) 3 - 8 | 0 шт. | — | |
| 3 | 68181-24F10-AWN | EMBLEM, RH | 0 шт. | — | |
| 4 | 68191-24F10-AWN | EMBLEM, LH | 0 шт. | — | |
| 5 | 94474-24F01 | CUSHION | 2 шт. | — | |
| 6 | 94473-24F00 | CUSHION, ENGINE COVER | 1 шт. | — | |
| 7 | 94475-24F01 | CUSHION, RH | 0 шт. | — | |
| 8 | 94485-24F00 | CUSHION, LH | 1 шт. | — | |
| 9 | 94621-24F00 | PANEL, SIDE RH | 1 шт. | — | |
| 10 | 94631-24F00 | PANEL, SIDE LH | 1 шт. | — | |
| 11 | 94622-24F00 | MOLDING, SIDE PANEL | 2 шт. | — | |
| 12 | 94461-24F00 | COWL, INNER RH | 1 шт. | — | |
| 13 | 94462-24F00 | COWL, INNER LH | 1 шт. | — | |
| 14 | 94498-24F01 | COWL, CENTER | 1 шт. | — | |
| 15 | 94660-24F00-YU7 | COWL, REAR (RED) | 1 шт. | — | |
