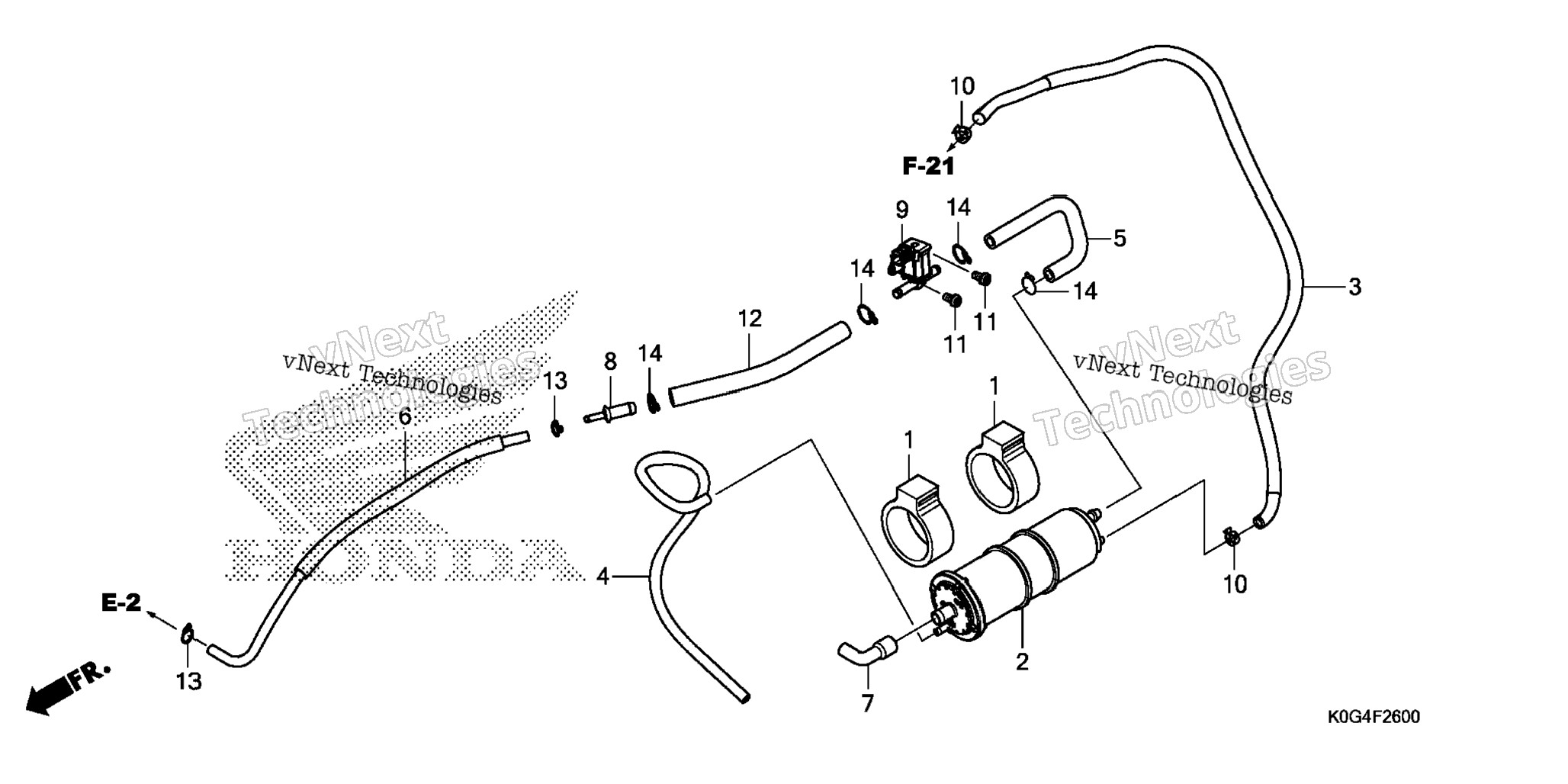

| 1 | 17311-GFM-K00 | RUBBER, CANISTER MOUNT | 2 шт. | — | |
|
| 2 | 17410-GFM-K01 | CANISTER | 1 шт. | — | |
|
| 3 | 17411-K0G-960 | TUBE, CHARGE | 1 шт. | — | |
|
| 4 | 17412-K0G-900 | TUBE, DRAIN | 1 шт. | — | |
|
| 5 | 17414-K0G-900 | TUBE A, PURGE | 1 шт. | — | |
|
| 6 | 17415-K0G-900 | TUBE B, PURGE | 1 шт. | — | |
|
| 7 | 17416-K0G-900 | TUBE, AIR | 1 шт. | — | |
|
| 8 | 19126-KM1-010 | JOINT, TUBE | 1 шт. | — | |
|
| 9 | 36162-KZL-931 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 10 | 90652-KSJ-A21 | CLAMP, TUBE (8.0) | 2 шт. | — | |
|
| 11 | 93500-05010-0H | SCREW, PAN (5X10) | 2 шт. | — | |
|
| 12 | 95001-75008-60M | BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M) | 1 шт. | — | |
|
| 13 | 95002-02070 | CLIP, TUBE (B7) CLIP, TUBE (B6.5) | 2 шт. | — | |
|
| 14 | 95002-02130 | CLIP, TUBE (B12.5) | 4 шт. | — | |
|
