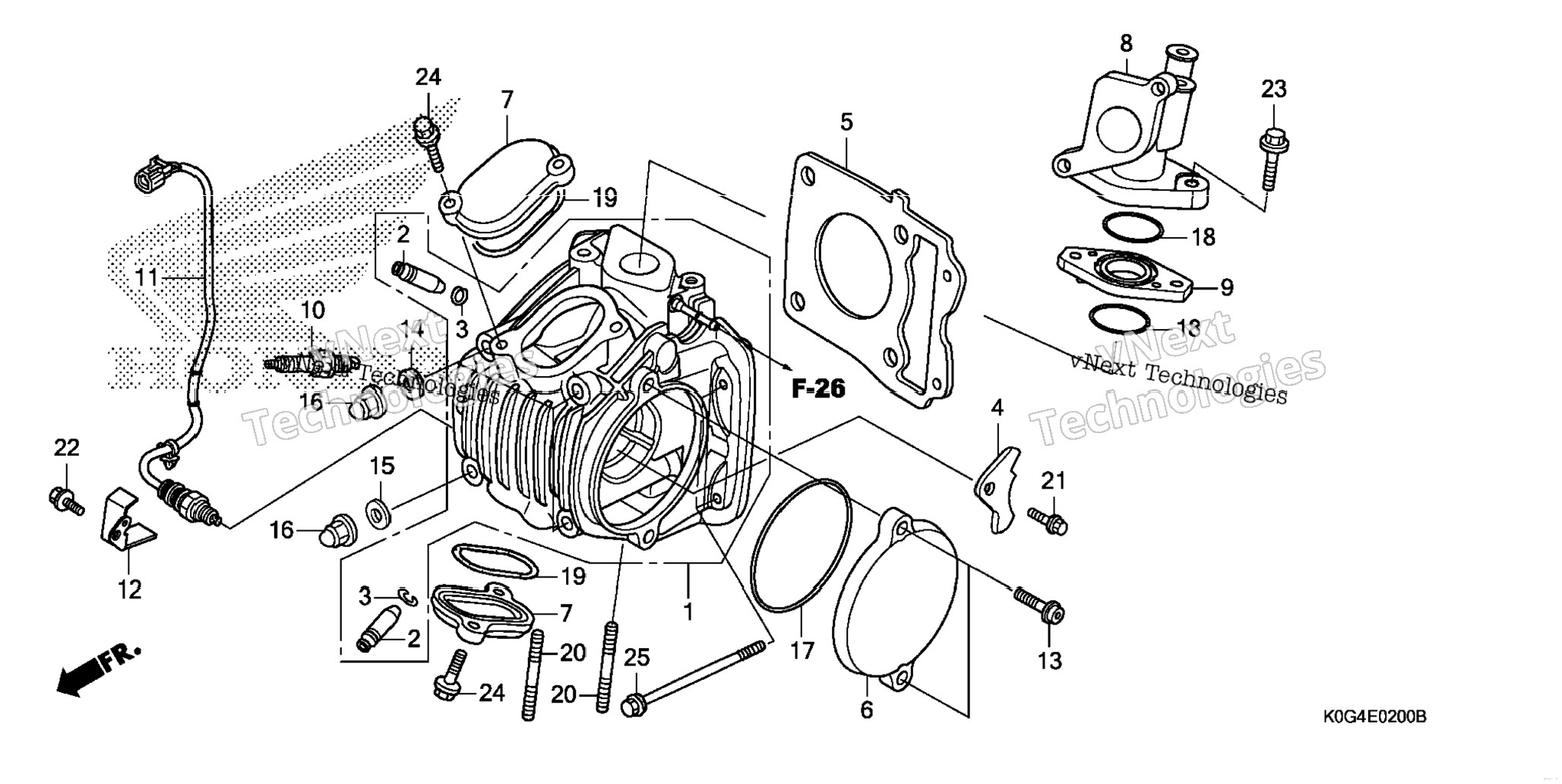

| 1 | 12200-K0G-910 | CYLINDER HEAD | 1 шт. | — | |
|
| 2 | 12204-KYZ-P00 | GUIDE, VALVE (OVER SIZE) | 2 шт. | — | |
|
| 3 | 12206-KPL-900 | CLIP, VALVE GUIDE | 2 шт. | — | |
|
| 4 | 12211-KPH-900 | PLATE, STOPPER | 1 шт. | — | |
|
| 5 | 12251-KYZ-901 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 6 | 12341-K0F-T00 | COVER, L. CYLINDER HEAD SIDE | 1 шт. | — | |
|
| 7 | 12361-K0F-T00 | COVER, TAPPET ADJUSTING HOLE | 2 шт. | — | |
|
| 8 | 17111-K0G-900 | PIPE, INLET | 1 шт. | — | |
|
| 9 | 17119-K0G-900 | INSULATOR, IN. PIPE | 1 шт. | — | |
|
| 10 | 31916-KPH-901 | SPARK PLUG (CPR6EA-9) (NGK) | 1 шт. | — | |
|
| 10 | 31917-KPH-900 | SPARK PLUG CPR7EA (Optional). | 1 шт. | — | |
|
| 10 | 31926-KPH-901 | SPARK PLUG (U20EPR9) (DENSO) (Optional). | 1 шт. | — | |
|
| 10 | 31927-KPH-901 | SPARK PLUG (U22EPR9) (DENSO) (Optional). | 1 шт. | — | |
|
| 11 | 36532-K0G-901 | SENSOR, OXYGEN | 1 шт. | — | |
|
| 12 | 36535-K41-N00 | GUARD, OXYGEN SENSOR | 1 шт. | — | |
|
| 13 | 90001-MGZ-J00 | BOLT, FLANGE SOCKET (6X22) | 2 шт. | — | |
|
| 14 | 90441-286-000 | WASHER, SEALING (8MM) | 3 шт. | — | |
|
| 15 | 90441-ME9-000 | WASHER, SEALING (8MM) | 1 шт. | — | |
|
| 16 | 90443-KTM-970 | NUT, CAP (8MM) | 4 шт. | — | |
|
| 17 | 91301-PH8-005 | O-RING (74.5X2.5) (NOK) | 1 шт. | — | |
|
| 18 | 91304-KPH-700 | O-RING (29X2.4) | 2 шт. | — | |
|
| 19 | 91372-KPH-900 | O-RING, TAPPET ADJUSTING HOLE CAP | 2 шт. | — | |
|
| 20 | 92900-08028-0E | BOLT 2, STUD (8X28) | 2 шт. | — | |
|
| 21 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 1 шт. | — | |
|
| 22 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 1 шт. | — | |
|
| 23 | 95701-06030-00 | BOLT, FLANGE (6X30) | 2 шт. | — | |
|
| 24 | 96001-06020-00 | BOLT, FLANGE (6X20) | 4 шт. | — | |
|
| 25 | 96001-06090-00 | BOLT, FLANGE (6X90) | 2 шт. | — | |
|
