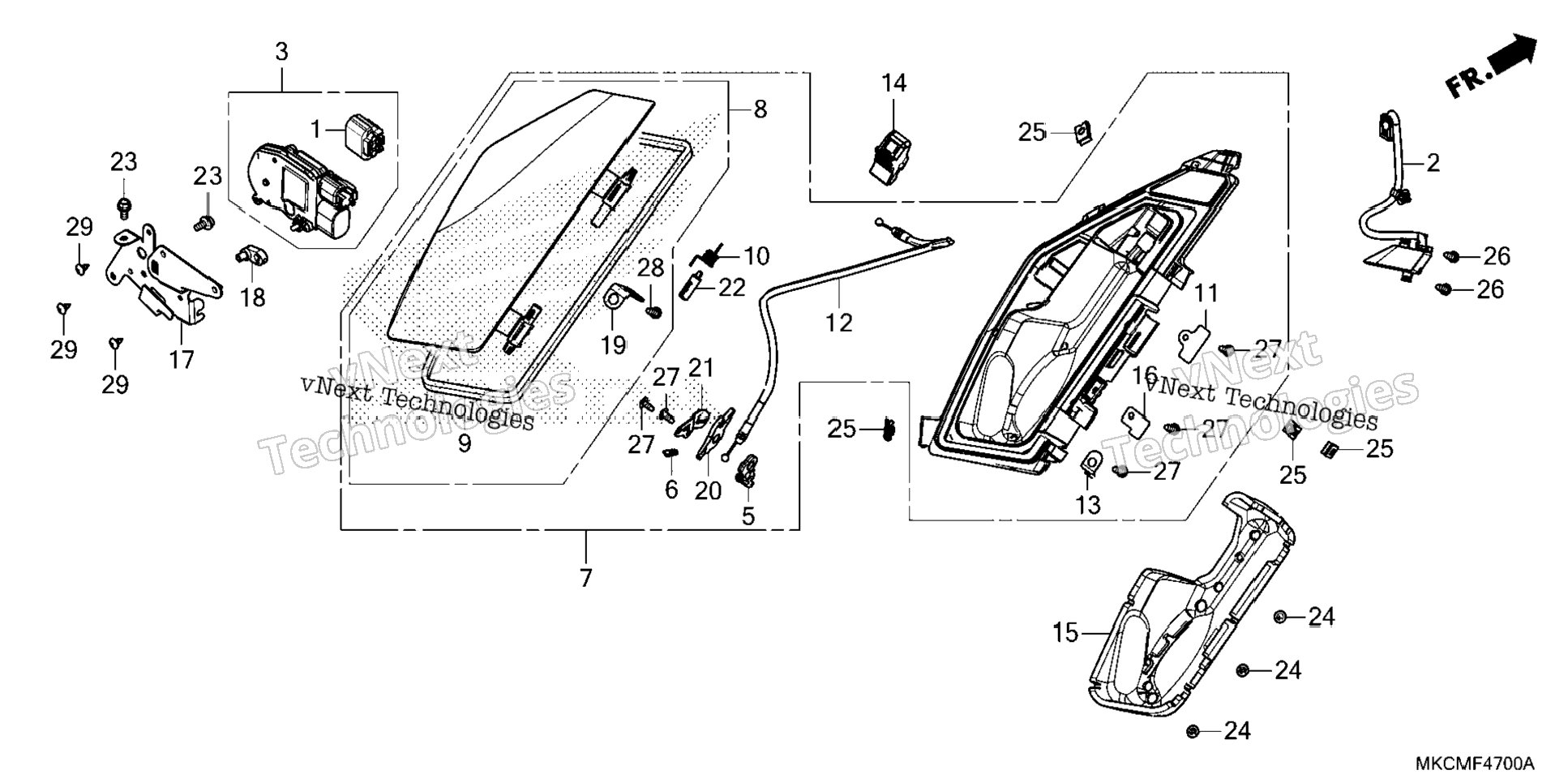

| 1 | 32144-MKC-A00 | DUMMY, CONNECTOR (WPC 3P 090 F) | 1 шт. | — | |
|
| 2 | 35370-MKC-A01 | SWITCH ASSY., POCKET OPEN | 1 шт. | — | |
|
| 3 | 36520-MKC-305 | ACTUATOR ASSY. (HONDALOCK) | 1 шт. | — | |
|
| 4 | 36520-MKC-A01 | ACTUATOR ASSY. (HONDALOCK) | 1 шт. | — | |
|
| 5 | 64429-MKC-A00 | CAM B, POCKET COVER LOCK | 1 шт. | — | |
|
| 6 | 64436-MCA-000 | SPRING, POCKET LOCK CAM | 1 шт. | — | |
|
| 7 | 64610-MKC-A00 | POCKET ASSY. | 1 шт. | — | |
|
| 8 | 64620-MKC-A00 | LID ASSY., POCKET | 1 шт. | — | |
|
| 9 | 64622-MKC-A00 | SEAL, POCKET | 1 шт. | — | |
|
| 10 | 64623-MKC-A00 | SPRING, POCKET | 1 шт. | — | |
|
| 11 | 64632-MKC-A00 | STAY, DAMPER | 1 шт. | — | |
|
| 12 | 64633-MKC-A01 | CABLE, POCKET LID | 1 шт. | — | |
|
| 13 | 64634-MKC-A00 | STAY, CABLE LOCK | 1 шт. | — | |
|
| 14 | 64635-MKC-A00 | KNOB, FUEL LID OPENER | 1 шт. | — | |
|
| 15 | 64636-MKC-A00 | CASE, SIDE POCKET (OUTER) | 1 шт. | — | |
|
| 16 | 64637-MKC-A00 | PLATE, SIDE POCKET | 1 шт. | — | |
|
| 17 | 64641-MKC-A00 | STAY, ACTUATOR | 1 шт. | — | |
|
| 18 | 77242-KSV-J00 | JOINT, CABLE | 1 шт. | — | |
|
| 19 | 83128-MCA-S40 | PLATE, POCKET LOCK | 1 шт. | — | |
|
| 20 | 83132-MCA-S40 | CAM A, POCKET COVER LOCK | 1 шт. | — | |
|
| 21 | 83174-MJN-A00 | STAY, CABLE LID | 1 шт. | — | |
|
| 22 | 83534-GGK-003 | DAMPER, CHARGE LID | 1 шт. | — | |
|
| 23 | 90002-892-000 | BOLT, FLANGE (5X10) | 2 шт. | — | |
|
| 24 | 90301-ST0-003 | NUT, PUSH (3MM) | 3 шт. | — | |
|
| 25 | 90677-KAN-961 | NUT, CLIP (5MM) | 4 шт. | — | |
|
| 26 | 93901-22320 | SCREW, TAPPING (3X12) | 2 шт. | — | |
|
| 27 | 93903-24120 | SCREW, TAPPING (4X8) | 5 шт. | — | |
|
| 28 | 93903-24180 | SCREW, TAPPING (4X8) | 1 шт. | — | |
|
| 29 | 93903-24320 | SCREW, TAPPING (4X12) | 3 шт. | — | |
|
