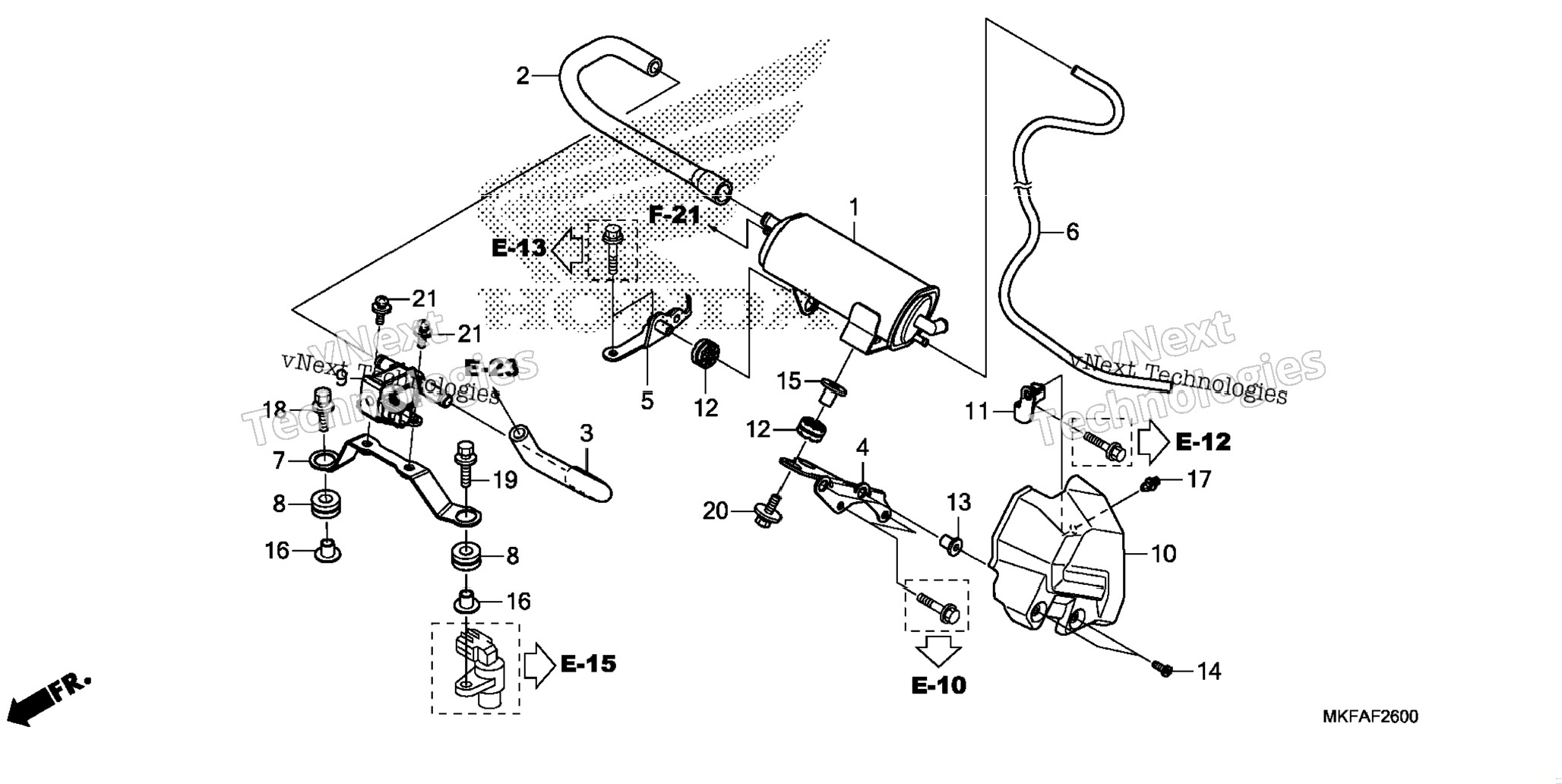

| 1 | 17410-MGP-A81 | CANISTER | 1 шт. | — | |
|
| 2 | 17412-MKF-L20 | TUBE, CANISTER-PURGE CONTROL VALVE | 1 шт. | — | |
|
| 3 | 17413-MKF-D40 | TUBE, FIVE WAY-PURGE CONTROL VALVE | 1 шт. | — | |
|
| 4 | 17432-MKF-L20 | STAY A, CANISTER | 1 шт. | — | |
|
| 5 | 17433-MKF-L20 | STAY B, CANISTER | 1 шт. | — | |
|
| 6 | 17434-MKF-L20 | TUBE, CANISTER DRAIN | 1 шт. | — | |
|
| 7 | 17445-MKF-D40 | STAY, PURGE CONTROL VALVE | 1 шт. | — | |
|
| 8 | 18320-196-000 | RUBBER A, PROTECTOR | 2 шт. | — | |
|
| 9 | 36162-KZL-931 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 10 | 64600-MKF-L20 | COVER, CANISTER | 1 шт. | — | |
|
| 11 | 64712-MKF-L20 | STAY, CANISTER COVER | 1 шт. | — | |
|
| 12 | 84703-425-000 | RUBBER, TAILLIGHT MOUNTING | 3 шт. | — | |
|
| 13 | 90111-KW3-003 | NUT, COWL SETTING (5MM) | 2 шт. | — | |
|
| 14 | 90117-MKF-D40 | BOLT, SPECIAL (5X14) | 2 шт. | — | |
|
| 15 | 90501-MKF-L20 | COLLAR (6.2X13) | 2 шт. | — | |
|
| 16 | 90522-KF0-000 | COLLAR, SIDE COVER SETTING | 2 шт. | — | |
|
| 17 | 90657-SB0-003 | CLIP, SPLASH SHIELD | 1 шт. | — | |
|
| 18 | 93401-06020-00 | BOLT-WASHER (6X20) | 1 шт. | — | |
|
| 19 | 93401-06025-00 | BOLT-WASHER (6X25) | 1 шт. | — | |
|
| 20 | 93404-06025-08 | BOLT-WASHER (6X25) | 2 шт. | — | |
|
| 21 | 93892-05010-08 | SCREW-WASHER (5X10) | 2 шт. | — | |
|
