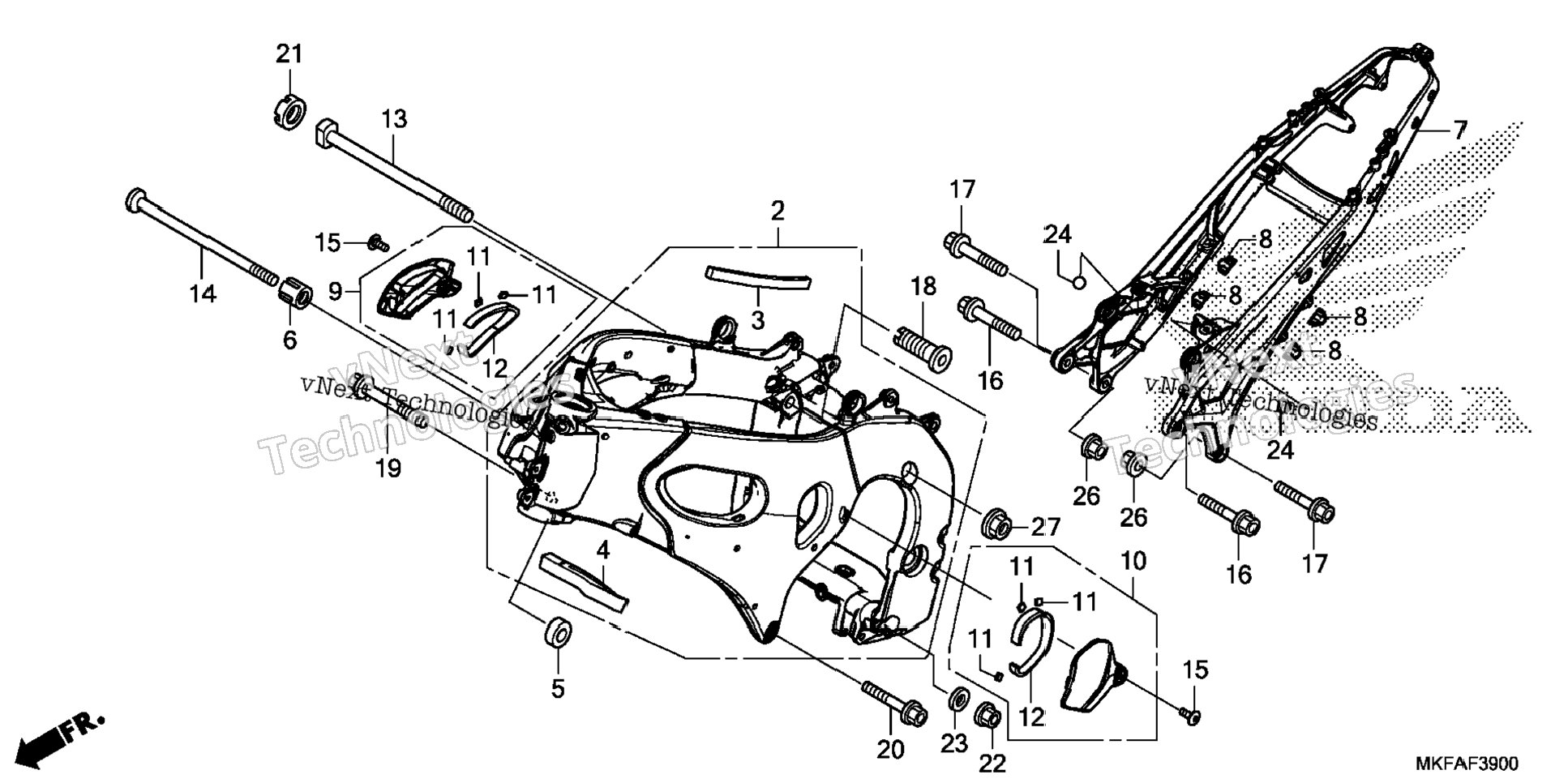

| 1 | 50010-MKF-A20ZA | FRAME SET *NH461M* (TEMPLE BLACK METALLIC) | 1 шт. | — | |
|
| 2 | 50132-MFJ-J00 | MAT A, PIVOT BRACKET | 1 шт. | — | |
|
| 3 | 50133-MFJ-J00 | MAT B, PIVOT BRACKET | 1 шт. | — | |
|
| 4 | 50193-MKF-D40 | COLLAR A, ENGINE HANGER | 1 шт. | — | |
|
| 5 | 50194-MFL-000 | COLLAR C, ENGINE HANGER | 1 шт. | — | |
|
| 6 | 50200-MKF-D41ZA | RAIL ASSY., SEAT *NH461M* (TEMPLE BLACK METALLIC) | 1 шт. | — | |
|
| 7 | 83215-MKF-D40 | COVER, R. FRAME SIDE | 1 шт. | — | |
|
| 8 | 83265-MKF-D40 | COVER, L. FRAME SIDE | 1 шт. | — | |
|
| 9 | 83266-MKF-D40 | RUBBER, PROTECTOR | 6 шт. | — | |
|
| 10 | 83640-MGE-700 | URETHANE, R. HEAT GUARD | 2 шт. | — | |
|
| 11 | 90101-MFL-000 | BOLT, SPECIAL (12X261.5) | 1 шт. | — | |
|
| 12 | 90102-MFL-000 | BOLT, SPECIAL (12X269.5) | 1 шт. | — | |
|
| 13 | 90108-MKF-D40 | SCREW, SPECIAL (6MM) | 2 шт. | — | |
|
| 14 | 90109-MFL-000 | BOLT, FLANGE (10X29) | 2 шт. | — | |
|
| 15 | 90110-MFL-000 | BOLT, FLANGE (10X33.5) | 2 шт. | — | |
|
| 16 | 90152-MFL-000 | BOLT, ADJUSTING (20X1.0X49.5) | 1 шт. | — | |
|
| 17 | 90163-MFL-D20 | BOLT, FLANGE (12X50) | 1 шт. | — | |
|
| 18 | 90164-MFL-D20 | BOLT, FLANGE (12X45) | 1 шт. | — | |
|
| 19 | 90303-MFJ-D00 | NUT, LOCK (20MM) (P=1.0) | 1 шт. | — | |
|
| 20 | 90371-MFL-000 | NUT, FLANGE (12MM) | 1 шт. | — | |
|
| 21 | 90439-SB2-010 | WASHER, SPECIAL (24X12X2.3) | 1 шт. | — | |
|
| 22 | 90572-KV3-300 | RUBBER, SEPARATOR MOUNTING | 2 шт. | — | |
|
| 23 | 94050-10000 | NUT, FLANGE (10MM) | 2 шт. | — | |
|
| 24 | 94050-12000 | NUT, FLANGE (12MM) | 1 шт. | — | |
|
