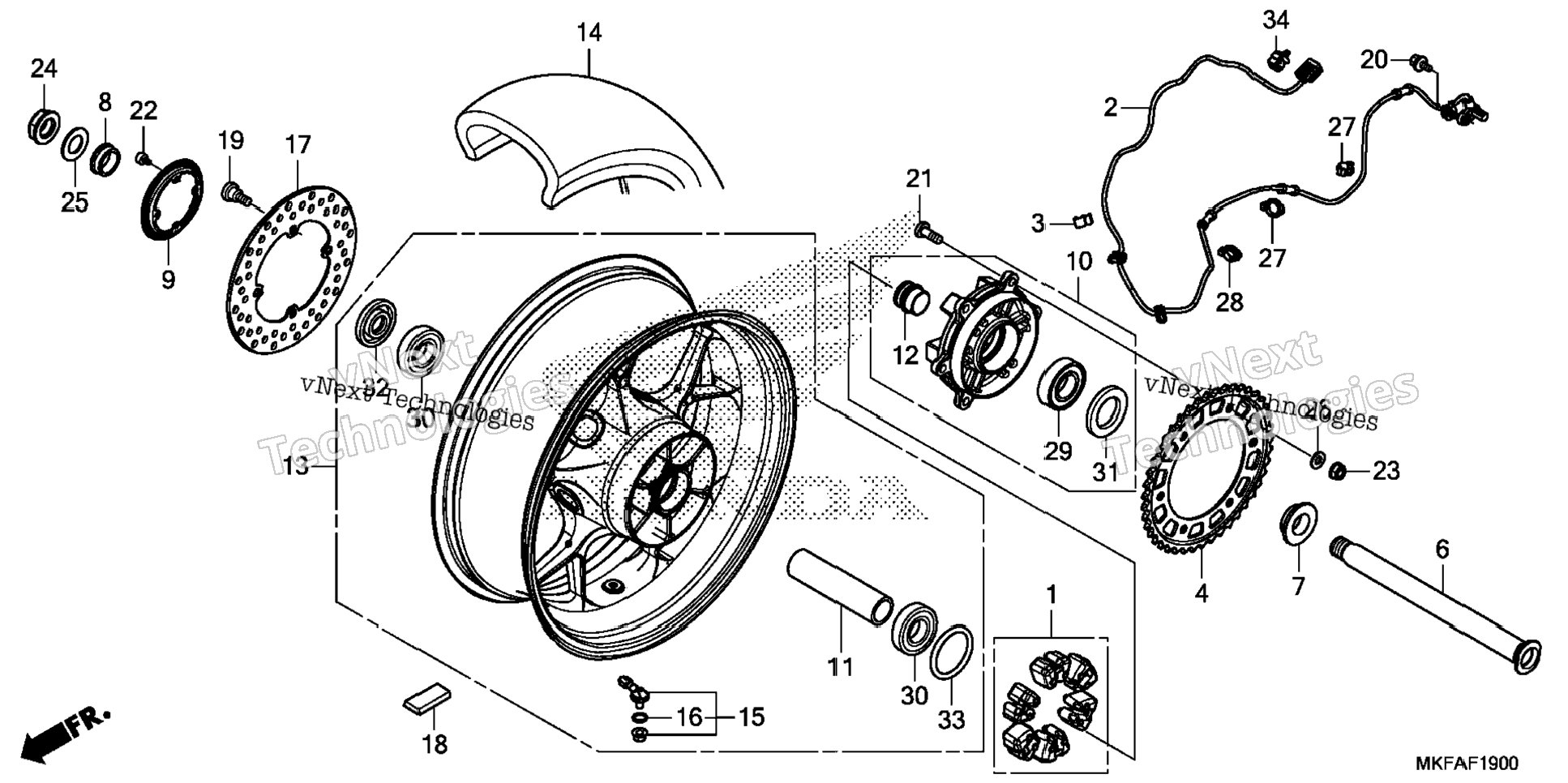

| 1 | 06410-MEL-D20 | DAMPER SET, WHEEL | 1 шт. | — | |
|
| 2 | 38510-MKF-D41 | SENSOR, RR. WHEEL SPEED | 1 шт. | — | |
|
| 3 | 38516-MGE-003 | CLAMP, ABS WIRE (D8.5) | 1 шт. | — | |
|
| 4 | 41201-MKF-D40 | SPROCKET, FINAL DRIVEN (43T) | 1 шт. | — | |
|
| 5 | 42301-MKF-D40 | AXLE, RR. WHEEL | 1 шт. | — | |
|
| 6 | 42311-MKF-D40 | COLLAR, RR. WHEEL SIDE | 1 шт. | — | |
|
| 7 | 42312-MKF-D40 | COLLAR, RR. BRAKE SIDE | 1 шт. | — | |
|
| 8 | 42515-MKF-D40 | RING, RR. PULSER | 1 шт. | — | |
|
| 9 | 42615-MKF-D40 | FLANGE SUB-ASSY., RR. DRIVEN | 1 шт. | — | |
|
| 10 | 42620-MKF-D40 | COLLAR, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 11 | 42625-MKF-D40 | COLLAR B, RR. WHEEL DISTANCE | 1 шт. | — | |
|
| 12 | 42650-MKF-D40ZC | WHEEL SUB-ASSY., RR. (TYPE2) | 1 шт. | — | |
|
| 13 | 42711-MKF-D41 | TIRE, RR. (190/50ZR17) (M/C 73W) (BS) | 1 шт. | — | |
|
| 14 | 42711-MKF-D42 | TIRE, RR. (190/50ZR17) (M/C 73W) (DUNLOP) | 1 шт. | — | |
|
| 15 | 42755-MKA-D81 | VALVE ASSY., CLAMP IN | 1 шт. | — | |
|
| 16 | 42758-MKA-D81 | O-RING | 1 шт. | — | |
|
| 17 | 43251-MKF-D41 | DISK, RR. BRAKE | 1 шт. | — | |
|
| 18 | 44721-MGH-H21 | WEIGHT, BALANCE (10G) | 1 шт. | — | |
|
| 19 | 44722-MGH-H21 | WEIGHT, BALANCE (15G) | 1 шт. | — | |
|
| 20 | 44723-MGH-H21 | WEIGHT, BALANCE (20G) | 1 шт. | — | |
|
| 21 | 90105-MFL-D20 | BOLT, BRAKE DISK (8X24) | 4 шт. | — | |
|
| 22 | 90117-MJP-G60 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 23 | 90121-MKF-D40 | BOLT (10X28.5) | 6 шт. | — | |
|
| 24 | 90131-KFK-630 | BOLT, TORX (5X10) | 4 шт. | — | |
|
| 25 | 90304-KAE-871 | NUT, U (10MM) | 6 шт. | — | |
|
| 26 | 90305-MKF-D41 | NUT, U FLANGE (24MM) | 1 шт. | — | |
|
| 27 | 90501-MKF-D40 | WASHER (24.1X43X2.5) | 1 шт. | — | |
|
| 28 | 90502-MCF-000 | WASHER (10MM) | 6 шт. | — | |
|
| 29 | 90690-MCA-003 | CLIP, CABLE (14MM) | 2 шт. | — | |
|
| 30 | 90690-MCA-003 | CLIP, CABLE (14MM) | 1 шт. | — | |
|
| 31 | 91051-MKF-D41 | BEARING, ANGULAR BALL (31X63X16) (FUJIKOSHI) | 1 шт. | — | |
|
| 32 | 91053-MFR-671 | BEARING, RADIAL BALL (60/28) | 2 шт. | — | |
|
| 33 | 91251-MKF-D41 | DUST SEAL (40X63X7) (NOK) | 1 шт. | — | |
|
| 34 | 91252-MKF-D41 | DUST SEAL (36X52X7) (NOK) | 1 шт. | — | |
|
| 35 | 91352-MKF-D41 | O-RING (57X2) (ARAI) | 1 шт. | — | |
|
