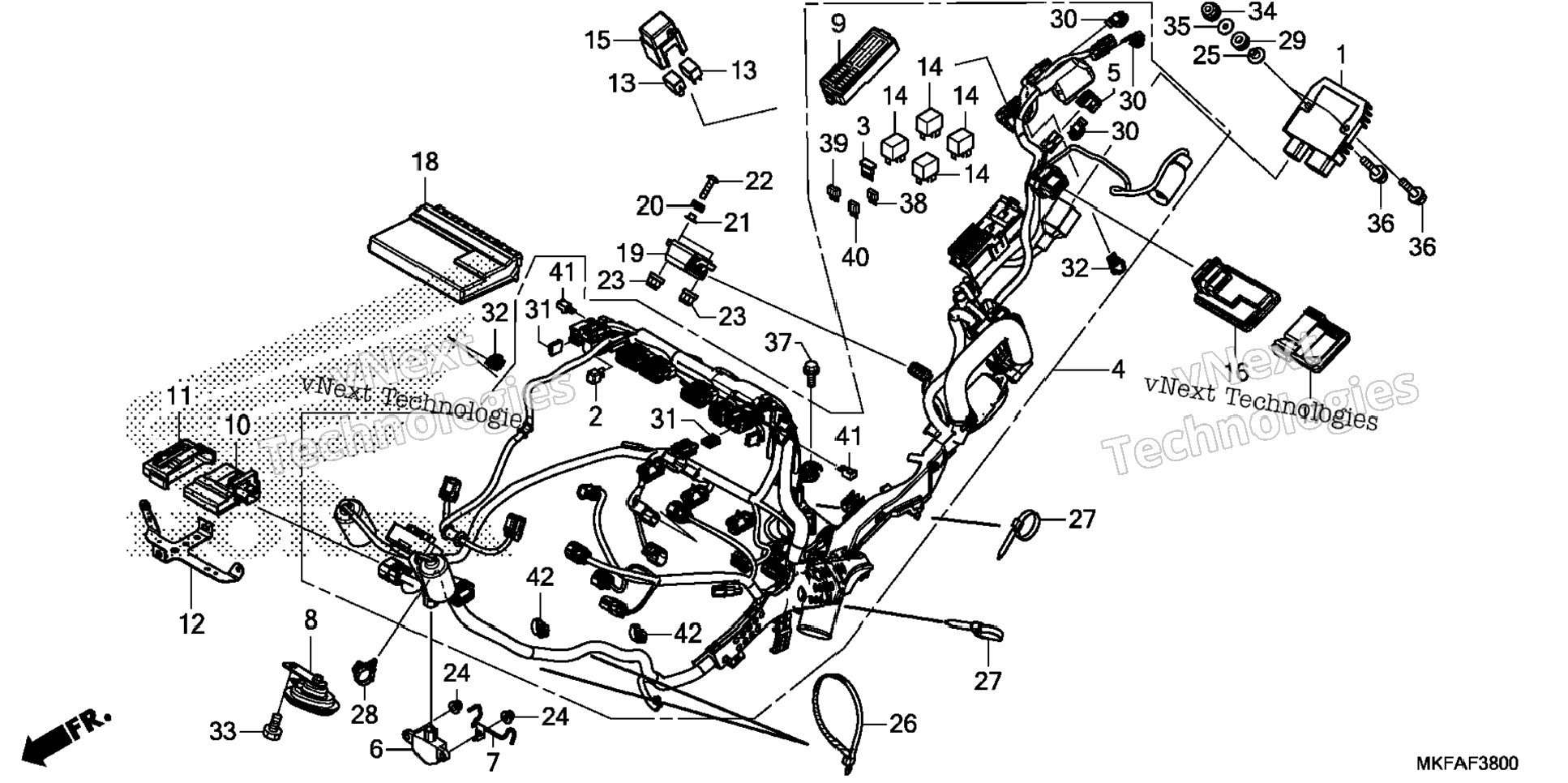

| 1 | 31600-MJJ-D31 | RECTIFIER ASSY., REGULATOR | 1 шт. | — | |
|
| 2 | 31700-GFZ-J01 | RESISTOR | 1 шт. | — | |
|
| 3 | 31730-MAS-601 | DIODE ASSY., THREE WAY (SUMITOMO) | 1 шт. | — | |
|
| 4 | 32100-MKF-L12 | WIRE HARNESS | 1 шт. | — | |
|
| 5 | 32606-K44-V01 | CAP, DUMMY (WPC 4P 090 M) (RED) | 1 шт. | — | |
|
| 6 | 35160-MGS-D31 | SENSOR ASSY., BANK ANGLE | 1 шт. | — | |
|
| 7 | 35165-MKF-D40 | GUIDE, BANK ANGLE SENSOR | 1 шт. | — | |
|
| 8 | 38110-MFL-003 | HORN (HIGH) | 1 шт. | — | |
|
| 9 | 38255-MKF-DK0 | COVER (UPPER) | 1 шт. | — | |
|
| 10 | 38301-MKF-D41 | RELAY, TURN SIGNAL (LED) | 1 шт. | — | |
|
| 11 | 38306-MKF-D41 | CUSHION, TURN SIGNAL RELAY | 1 шт. | — | |
|
| 12 | 38310-MKF-D40 | STAY, TURN SIGNAL RELAY | 1 шт. | — | |
|
| 13 | 38501-KWN-901 | RELAY, POWER (MICRO ISO 4P) (OMRON) | 2 шт. | — | |
|
| 14 | 38501-MEL-003 | RELAY ASSY., POWER (MICRO ISO 4P) | 4 шт. | — | |
|
| 15 | 38506-KZZ-900 | COVER, RELAY (2P) | 1 шт. | — | |
|
| 16 | 38770-MKF-LK2 | PGM-FI UNIT | 1 шт. | — | |
|
| 17 | 39900-MKF-D40 | SENSOR SET (2GYRO & 3G) | 1 шт. | — | |
|
| 18 | 39963-MKF-D41 | RUBBER, SENSOR MOUNTING | 2 шт. | — | |
|
| 19 | 83119-MG9-000 | COLLAR, LOCK SETTING | 2 шт. | — | |
|
| 20 | 90085-MBW-000 | BOLT, SPECIAL (6X25) | 2 шт. | — | |
|
| 21 | 90301-473-003 | NUT, U (6MM) NUT, FLANGE (6MM) | 2 шт. | — | |
|
| 22 | 90301-MG8-000 | NUT, FLANGE (5MM) (FUSE RASHI) | 2 шт. | — | |
|
| 23 | 90502-GG2-000 | COLLAR, RR. FENDER | 2 шт. | — | |
|
| 24 | 90650-MBY-000 | BAND, HARNESS | 2 шт. | — | |
|
| 25 | 90651-KV6-003 | BAND, WIRE (165MM) (BLACK) | 2 шт. | — | |
|
| 26 | 90652-HC4-003 | CLAMP, HARNESS | 1 шт. | — | |
|
| 27 | 90852-898-000 | RUBBER, CONTROL BOX | 2 шт. | — | |
|
| 28 | 91535-TA0-003 | CLIP, CONNECTOR (DARK BROWN) | 3 шт. | — | |
|
| 29 | 91554-SM4-003 | HOLDER, BRACKET (RED) | 2 шт. | — | |
|
| 30 | 91565-S0X-003 | CLIP, CONNECTOR (DARK GREEN) | 2 шт. | — | |
|
| 31 | 92101-08014-0G | BOLT, HEX. (8X14) | 1 шт. | — | |
|
| 32 | 94050-06070 | NUT, FLANGE (6MM) | 2 шт. | — | |
|
| 33 | 94103-06700 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 34 | 96001-06035-07 | BOLT, FLANGE (6X35) | 2 шт. | — | |
|
| 35 | 96300-06014-00 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 36 | 98200-41000 | FUSE, MINI (10A) | 9 шт. | — | |
|
| 37 | 98200-42000 | FUSE, MINI (20A) | 3 шт. | — | |
|
| 38 | 98200-43000 | FUSE, MINI (30A) (Honda Code 5359666) | 3 шт. | — | |
|
| 39 | 32146-S84-003 | CONNECTOR, DIODE (2P) (3A) | 2 шт. | — | |
|
| 40 | 91541-S0A-003 | CLIP, HARNESS BAND (145MM) (BLACK) | 2 шт. | — | |
|
