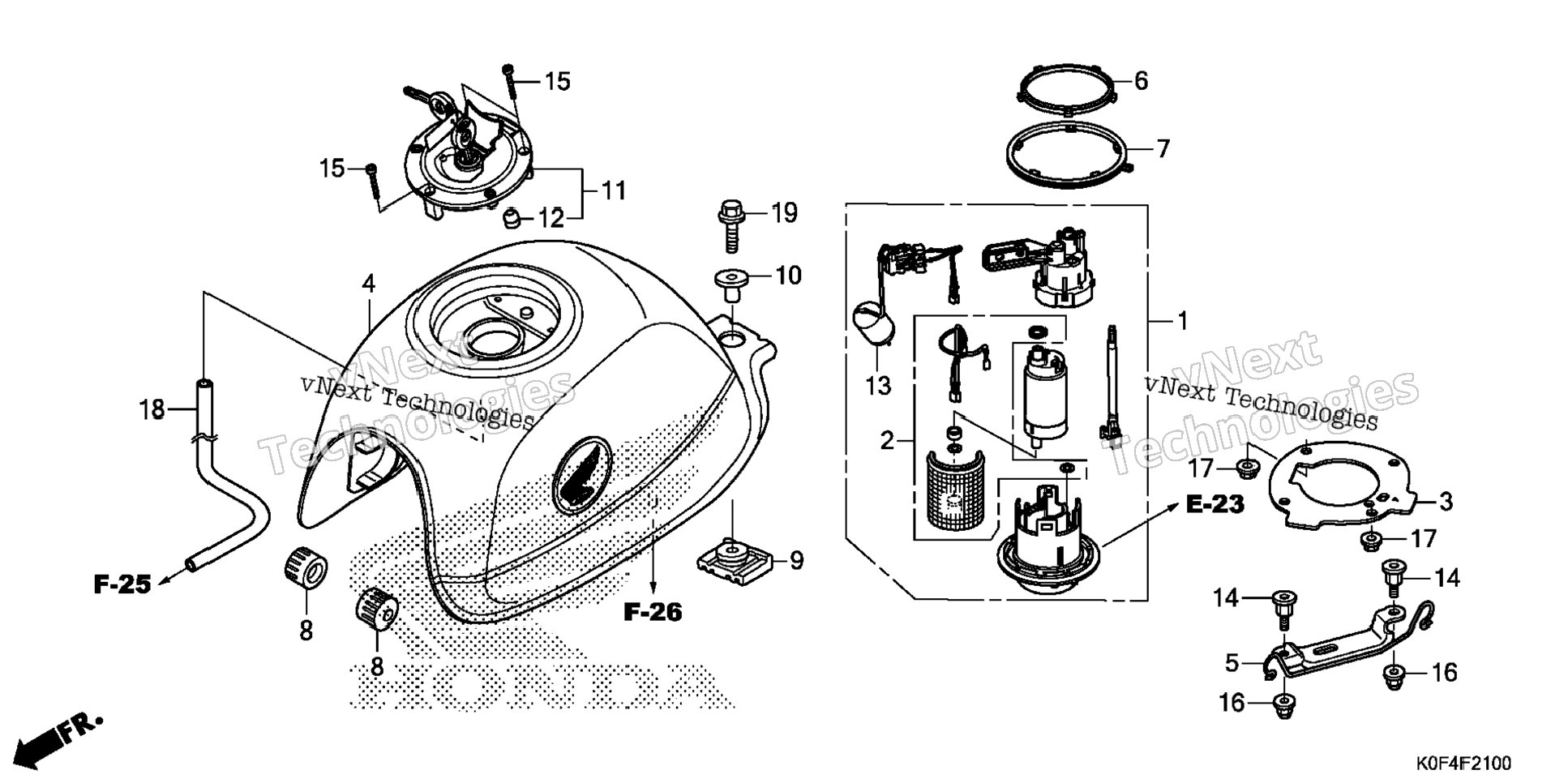

| 1 | 16700-K0F-T01 | PUMP ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 2 | 16707-K45-N01 | FILTER SET | 1 шт. | — | |
|
| 3 | 17507-K0F-T00 | PLATE, SETTING | 1 шт. | — | |
|
| 4 | 17520-K0F-T00ZF | TANK SET, FUEL *2TN0019* (WL) (PEARL NEBULA RED/ROSS WHITE) | 1 шт. | — | |
|
| 5 | 17542-K0F-T00 | BRACKET, FUEL PUMP | 1 шт. | — | |
|
| 6 | 17572-GHB-613 | GASKET, FUEL PUMP | 1 шт. | — | |
|
| 7 | 17573-KPN-A71 | DUST SEAL | 1 шт. | — | |
|
| 8 | 17611-KE8-000 | CUSHION, FR. FUEL TANK | 2 шт. | — | |
|
| 9 | 17611-286-000 | CUSHION, FR. FUEL TANK | 2 шт. | — | |
|
| 10 | 17613-GAA-000 | RUBBER, RR. FUEL TANK | 1 шт. | — | |
|
| 11 | 17614-KR3-000 | COLLAR, FUEL TANK MOUNTING | 1 шт. | — | |
|
| 12 | 17620-K0F-T02 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 13 | 17620-K0F-T03 | CAP COMP | 1 шт. | — | |
|
| 14 | 17621-MGP-D62 | SEAL, BREATHER | 1 шт. | — | |
|
| 15 | 37800-K0F-T01 | FUEL UNIT | 1 шт. | — | |
|
| 16 | 90101-K26-900 | BOLT, SPECIAL (6MM) | 2 шт. | — | |
|
| 17 | 90120-MJE-D00 | BOLT, SOCKET (4X25) (SUS) | 3 шт. | — | |
|
| 18 | 90201-415-000 | NUT, CAP (6MM) | 2 шт. | — | |
|
| 19 | 94050-06000 | NUT, FLANGE (6MM) | 2 шт. | — | |
|
| 20 | 95005-80001-20M | BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M) | 1 шт. | — | |
|
| 21 | 95701-08028-07 | BOLT, FLANGE (8X28) | 1 шт. | — | |
|
