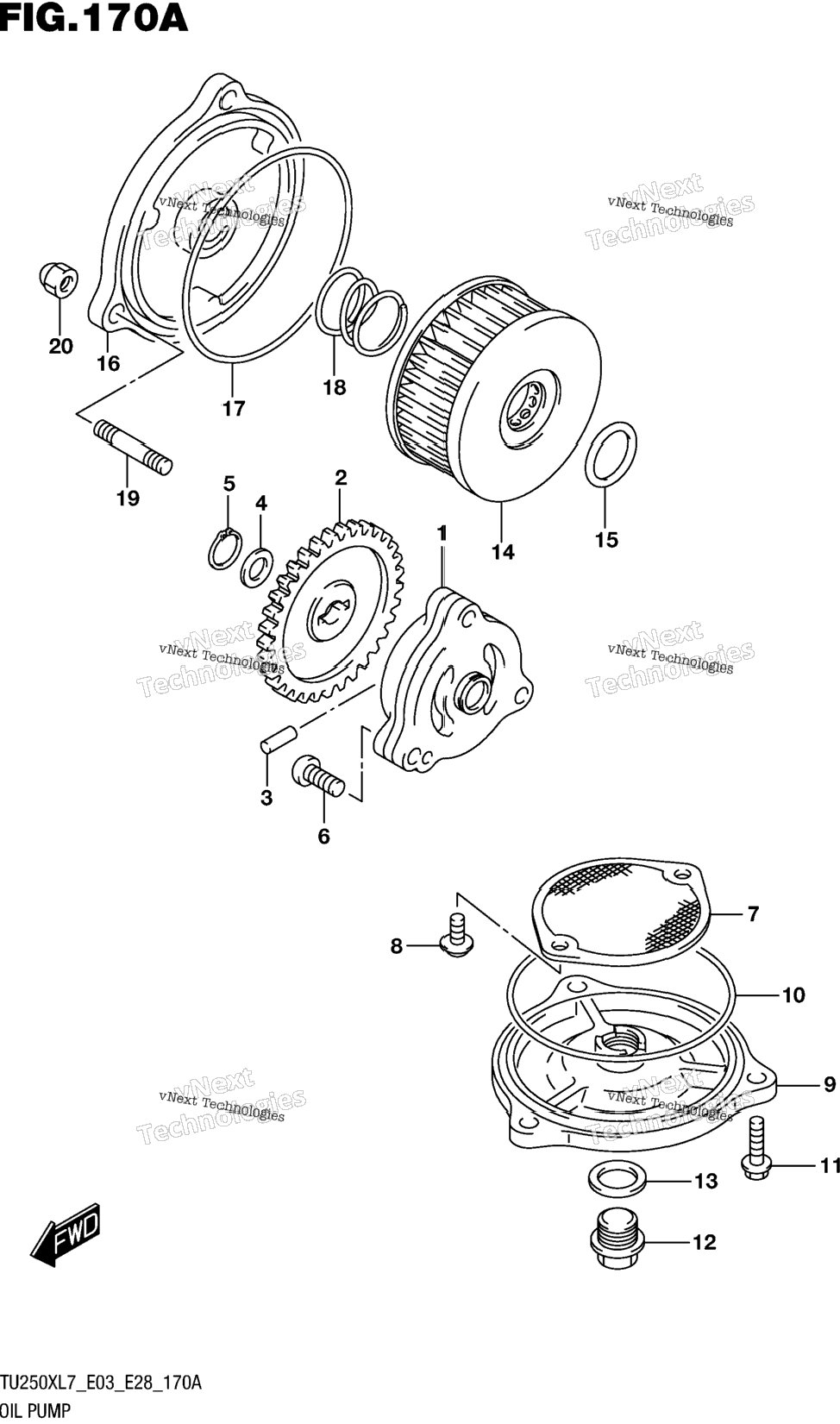

| 1 | 16400-38200 | PUMP ASSY, ENG OIL | 1 шт. | — | |
|
| 2 | 16331-26F00 | GEAR, OIL PUMP DRIVEN (NT:33) | 0 шт. | — | |
|
| 3 | 09261-04001 | PIN (4X18.5) | 1 шт. | — | |
|
| 4 | 09181-10158 | SHIM (10X18X0.5) | 1 шт. | — | |
|
| 5 | 08331-31109 | CIRCLIP | 1 шт. | — | |
|
| 6 | 07130-0625A | BOLT | 3 шт. | — | |
|
| 7 | 16520-37400 | STRAINER, ENGINE OIL | 1 шт. | — | |
|
| 8 | 02112-7512A | SCREW | 2 шт. | — | |
|
| 9 | 16523-38200 | CAP, OIL STRAINER | 1 шт. | — | |
|
| 10 | 09280-82001 | O RING (D:2.4,ID:85) | 1 шт. | — | |
|
| 11 | 01547-0620A | BOLT | 3 шт. | — | |
|
| 12 | 09247-14026 | PLUG (14X12) | 1 шт. | — | |
|
| 13 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 14 | 16510-38240 | FILTER, ENGINE OIL | 1 шт. | — | |
|
| 15 | 09280-15007 | O RING (D:2.4,ID:15.8) | 1 шт. | — | |
|
| 16 | 16512-25D00 | CAP, OIL FILTER | 1 шт. | — | |
|
| 17 | 09280-72001 | O RING (D:2.4,ID:73) | 1 шт. | — | |
|
| 18 | 09440-21006 | SPRING | 1 шт. | — | |
|
| 19 | 09108-06123 | STUD BOLT | 3 шт. | — | |
|
| 20 | 08313-10067 | NUT | 3 шт. | — | |
|
