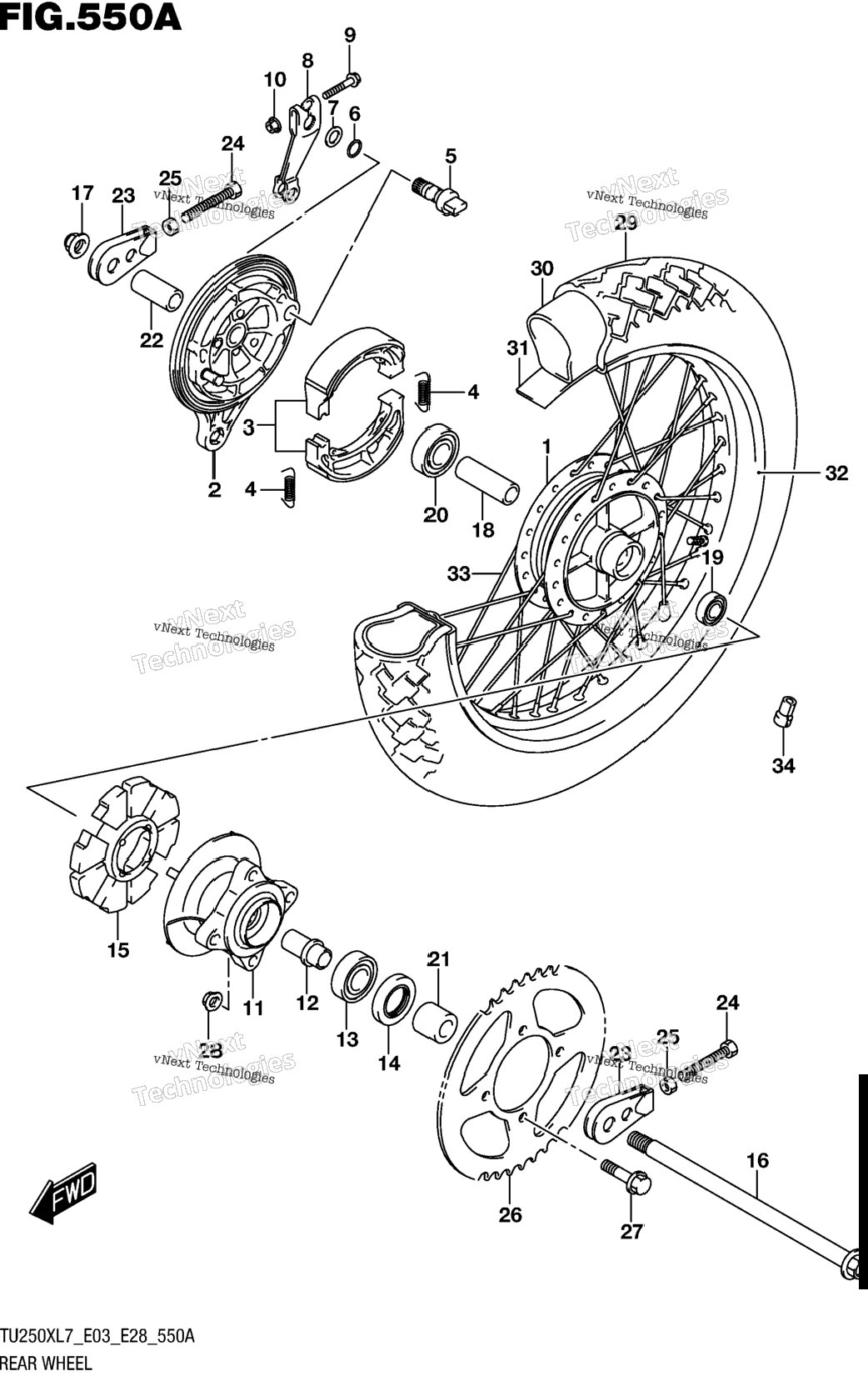

| 1 | 64110-07005 | HUB, REAR WHEEL | 0 шт. | — | |
|
| 2 | 64210-39115 | PANEL, REAR BRAKE ANCHOR | 1 шт. | — | |
|
| 3 | 54402-07810 | SHOE, REAR BRAKE | 1 шт. | — | |
|
| 4 | 09443-07001 | SPRING (L:34) | 2 шт. | — | |
|
| 5 | 54441-29305 | CAM, REAR BRAKE | 1 шт. | — | |
|
| 6 | 09280-14011 | O RING (D:2.5,ID:13.8) | 1 шт. | — | |
|
| 7 | 09160-14055 | WASHER (14.5X22X1.6) | 1 шт. | — | |
|
| 8 | 64451-38210 | LEVER, REAR BRAKE CAM | 1 шт. | — | |
|
| 9 | 01550-0635B | BOLT | 1 шт. | — | |
|
| 10 | 08316-1006B | NUT | 1 шт. | — | |
|
| 11 | 64610-38300 | DRUM, REAR SPROCKET MOUNTING | 0 шт. | — | |
|
| 12 | 64733-38300 | RETAINER, REAR SPROCKET DRUM | 1 шт. | — | |
|
| 13 | 09262-20069 | BEARING (20X47X14) | 1 шт. | — | |
|
| 14 | 09285-28001 | OIL SEAL (28X47X7) | 1 шт. | — | |
|
| 15 | 64651-07001 | ABSORBER, REAR HUB SHOCK | 1 шт. | — | |
|
| 16 | 64711-08320 | AXLE, REAR | 1 шт. | — | |
|
| 17 | 08319-3114A | NUT | 1 шт. | — | |
|
| 18 | 09180-15011 | SPACER (15.3X21.7X63) | 1 шт. | — | |
|
| 19 | 08143-62027 | BEARING LH | 1 шт. | — | |
|
| 20 | 08153-63027 | BEARING RH | 1 шт. | — | |
|
| 21 | 09180-15061 | SPACER (15X28X24.8) | 0 шт. | — | |
|
| 22 | 09180-15060 | SPACER (15X22X46.8) | 0 шт. | — | |
|
| 23 | 61410-38310 | ADJUSTER, CHAIN | 2 шт. | — | |
|
| 24 | 09100-08303 | BOLT (8X50) | 2 шт. | — | |
|
| 25 | 08310-0008B | NUT | 2 шт. | — | |
|
| 26 | 64511-25D00 | SPROCKET, REAR (NT:43) | 1 шт. | — | |
|
| 27 | 09103-10044 | BOLT (10X40) | 4 шт. | — | |
|
| 28 | 08319-3110A | NUT | 4 шт. | — | |
|
| 29 | 65110-26G10 | TIRE, REAR (110/90-18M/C 61S) | 1 шт. | — | |
|
| 30 | 65200-26G10 | TUBE ASSY, WHEEL INNER | 1 шт. | — | |
|
| 31 | 55261-26G00 | PROTECTOR, WHEEL INNER TUBE | 1 шт. | — | |
|
| 32 | 65311-26G00 | RIM, REAR WHEEL (18M/CXMT2.50 | 1 шт. | — | |
|
| 33 | 65320-26G00 | SPOKE SET, REAR WHEEL | 0 шт. | — | |
|
| 34 | 55411-26G00 | BALANCER WHEEL (15G) | 1 шт. | — | |
|
| 35 | 55413-41F00 | BALANCER WHEEL (30G) | 1 шт. | — | |
|
