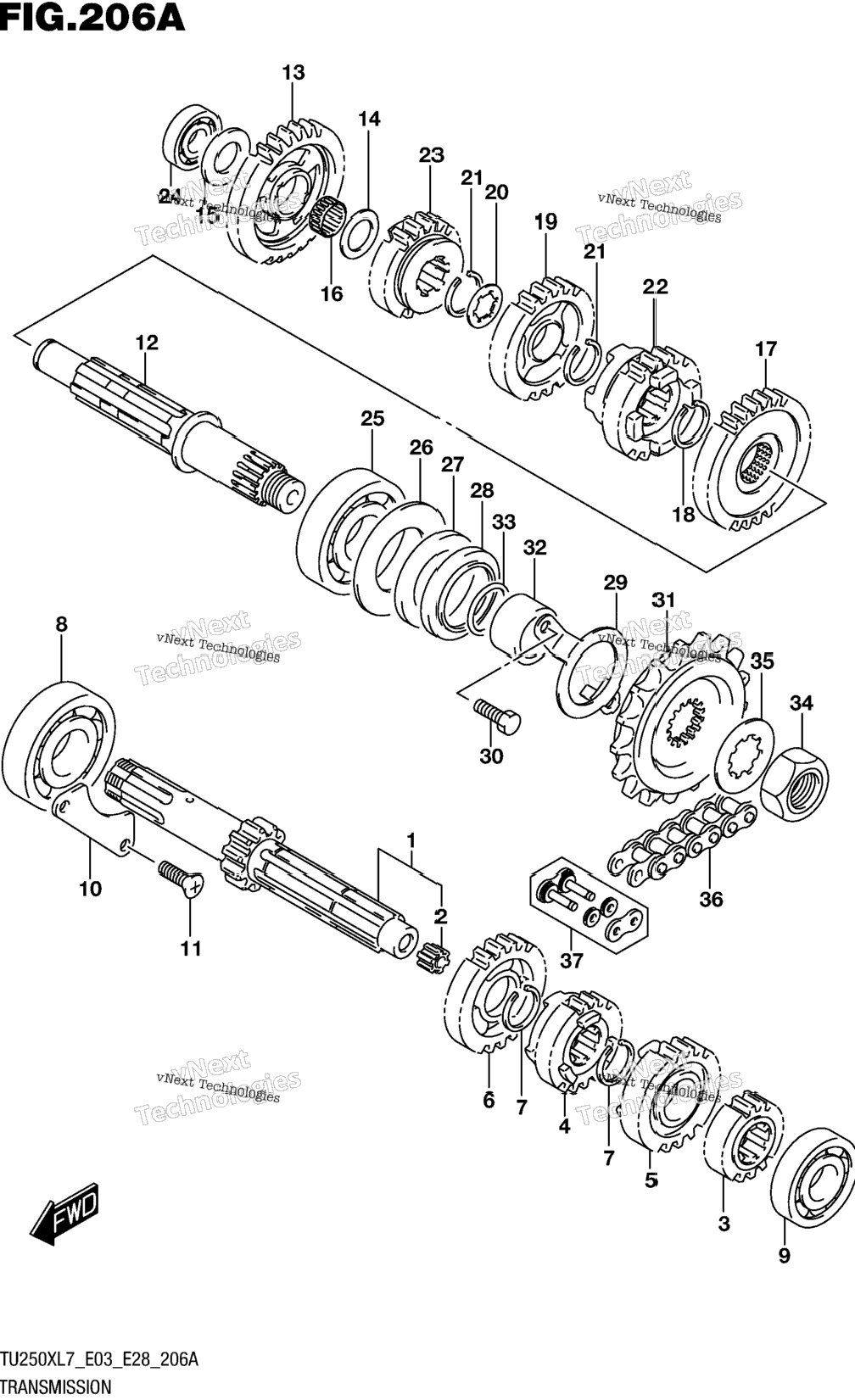

| 1 | 24120-38203 | SHAFT, COUNTER (NT:11) | 1 шт. | — | |
|
| 2 | 24125-38201 | .BUSH, COUNTER SHAFT | 1 шт. | — | |
|
| 3 | 24221-32412 | GEAR, 2ND DRIVE (NT:16) | 1 шт. | — | |
|
| 4 | 24231-38220 | GEAR, 3RD DRIVE (NT:20) | 0 шт. | — | |
|
| 5 | 24241-32420 | GEAR, 4TH DRIVE (NT:21) | 0 шт. | — | |
|
| 6 | 24251-32420 | GEAR, 2ND DRIVE (NT:22) | 1 шт. | — | |
|
| 7 | 09380-22006 | CIRCLIP | 2 шт. | — | |
|
| 8 | 09262-22025 | BEARING (22X56X16) | 1 шт. | — | |
|
| 9 | 09262-17046 | BEARING (17X40X12) | 1 шт. | — | |
|
| 10 | 24741-38200 | RETAINER, CNTR SHAFT BEARING | 0 шт. | — | |
|
| 11 | 09125-06122 | SCREW (6X12) | 2 шт. | — | |
|
| 12 | 24130-38301 | SHAFT, DRIVE | 0 шт. | — | |
|
| 13 | 24311-32401 | GEAR, 1ST DRIVEN (NT:29) | 0 шт. | — | |
|
| 14 | 09181-17195 | SHIM (17X28X1) | 1 шт. | — | |
|
| 15 | 08211-17283 | WASHER | 0 шт. | — | |
|
| 16 | 09263-17004 | BEARING (17X21X9.8) | 1 шт. | — | |
|
| 17 | 24320-32411 | GEAR, 2ND DRIVEN (NT:27) | 1 шт. | — | |
|
| 18 | 09380-22006 | CIRCLIP | 1 шт. | — | |
|
| 19 | 24330-38202 | GEAR, 3RD DRIVE (NT:24) | 1 шт. | — | |
|
| 20 | 09167-22011 | LOCK WASHER | 1 шт. | — | |
|
| 21 | 09380-22006 | CIRCLIP | 2 шт. | — | |
|
| 22 | 24341-38220 | GEAR, 4TH DRIVEN (NT:20) | 0 шт. | — | |
|
| 23 | 24351-38201 | GEAR, 5TH DRIVEN (NT:18) | 1 шт. | — | |
|
| 24 | 08110-62030 | BEARING | 1 шт. | — | |
|
| 25 | 09262-22025 | BEARING (22X56X16) | 1 шт. | — | |
|
| 26 | 09160-35007 | WASHER (35X55X1) | 1 шт. | — | |
|
| 27 | 09282-30004 | OIL SEAL (30X43X5) | 1 шт. | — | |
|
| 28 | 09283-30041 | OIL SEAL (30X43X7) | 1 шт. | — | |
|
| 29 | 24751-38210 | RETAINER, DRIVE SHAFT OIL SEA | 1 шт. | — | |
|
| 30 | 01500-0612A | SCREW | 2 шт. | — | |
|
| 31 | 27510-25D00 | SPROCKET, ENGINE (NT:15) | 1 шт. | — | |
|
| 32 | 27531-38300 | SPACER, ENGINE SPROCKET | 1 шт. | — | |
|
| 33 | 09280-21008 | O RING (D:2.5,ID:21) | 1 шт. | — | |
|
| 34 | 09140-18008 | NUT | 1 шт. | — | |
|
| 35 | 09167-22012 | WASHER LOCK (22.5X40.3X0.8) | 1 шт. | — | |
|
| 36 | 27600-14A20-108 | CHAIN ASSY, DRIVE (DID520V0) | 1 шт. | — | |
|
| 37 | 27620-14A20 | JOINT SET (DID520V0 ZJ) OPT | 1 шт. | — | |
|
