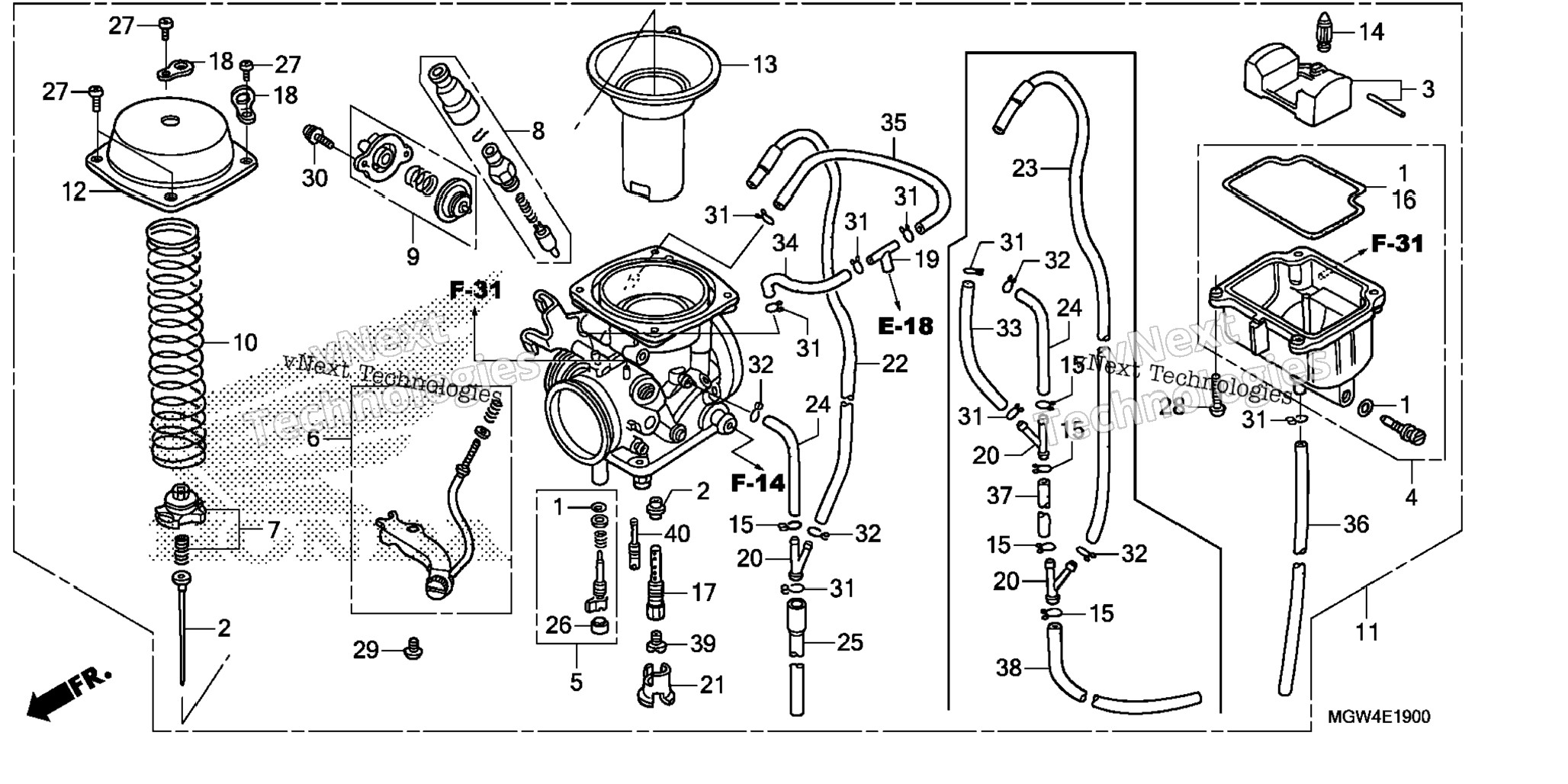

| 1 | 16010-KPK-901 | GASKET SET (CARBURETOR NO.) | 1 шт. | — | |
|
| 2 | 16012-MY6-770 | NEEDLE SET, JET | 1 шт. | — | |
|
| 3 | 16013-KR3-980 | FLOAT SET | 1 шт. | — | |
|
| 4 | 16015-MAK-003 | CHAMBER SET, FLOAT (CARBURETOR NO.) | 1 шт. | — | |
|
| 5 | 16016-MGW-A01 | SCREW SET | 1 шт. | — | |
|
| 6 | 16029-MY6-770 | SCREW SET | 1 шт. | — | |
|
| 7 | 16037-MAK-000 | PLATE SET, VALVE | 1 шт. | — | |
|
| 7 | 16037-MN9-004 | PLATE SET, VALVE | 1 шт. | — | |
|
| 8 | 16046-MY6-770 | VALVE SET, STARTER | 1 шт. | — | |
|
| 9 | 16048-MN9-004 | VALVE SET, AIR CUT (N/A- USE ALTERNATE PART NO. 16048-KAS-970) | 0 шт. | — | |
|
| 10 | 16050-MY6-670 | SPRING, COMPRESSION COIL | 1 шт. | — | |
|
| 11 | 16100-MGW-L11 | CARBURETOR ASSY. (VE86C A) | 1 шт. | — | |
|
| 12 | 16107-MK4-602 | TOP | 1 шт. | — | |
|
| 13 | 16111-MY6-670 | PISTON, VACUUM | 1 шт. | — | |
|
| 14 | 16155-MN9-004 | VALVE, FLOAT | 1 шт. | — | |
|
| 15 | 16163-GHB-600 | CLIP, TUBE | 4 шт. | — | |
|
| 16 | 16163-KPK-901 | GASKET, FLOAT CHAMBER (CARBURETOR NO.) | 1 шт. | — | |
|
| 17 | 16165-MY6-770 | HOLDER, NEEDLE JET | 1 шт. | — | |
|
| 18 | 16179-HA0-003 | BINDER | 2 шт. | — | |
|
| 19 | 16180-195-731 | JOINT (T-TYPE) | 1 шт. | — | |
|
| 20 | 16180-ML6-671 | JOINT | 2 шт. | — | |
|
| 21 | 16185-MN9-004 | PLATE, BUFFER | 1 шт. | — | |
|
| 23 | 16198-MY6-780 | TUBE | 1 шт. | — | |
|
| 24 | 16199-MN9-004 | TUBE | 1 шт. | — | |
|
| 26 | 16312-KYK-911 | CAP, ADJUSTING SCREW | 1 шт. | — | |
|
| 27 | 93500-04008-1A | SCREW, PAN (4X8) | 4 шт. | — | |
|
| 27 | 93500-04008-0A | SCREW, PAN (4X8) SCREW, PAN (4X12) | 4 шт. | — | |
|
| 28 | 93500-04014-0A | SCREW, PAN (4X14) | 4 шт. | — | |
|
| 29 | 93500-06010-0A | SCREW, PAN (6X10) | 1 шт. | — | |
|
| 29 | 93500-06010-1A | SCREW, PAN (6X10) | 1 шт. | — | |
|
| 30 | 93892-04010-18 | SCREW-WASHER (4X10) | 2 шт. | — | |
|
| 30 | 93892-04010-08 | SCREW-WASHER (4X10) | 2 шт. | — | |
|
| 31 | 95002-02079 | CLIP, TUBE (B17) | 6 шт. | — | |
|
| 32 | 95002-02089 | CLIP, TUBE (B1 8) | 2 шт. | — | |
|
| 33 | 95005-35001-50M | BULK HOSE, VACUUM (3.5X1000) (3.5X350) | 1 шт. | — | |
|
| 35 | 95005-35008-10M | BULK HOSE, VACUUM (3.5X8000) (3.5X1000) | 1 шт. | — | |
|
| 35 | 95005-35008-10M | BULK HOSE, VACUUM (3.5X8000) (3.5X1000) | 1 шт. | — | |
|
| 38 | 95005-50001-50M | BULK HOSE, VACUUM (5X1000) (5X200) (BULK HOSE: 95005-50001-50M) | 1 шт. | — | |
|
| 38 | 95005-50001-50M | BULK HOSE, VACUUM (5X1000) (5X200) (BULK HOSE: 95005-50001-50M) | 1 шт. | — | |
|
| 39 | 99101-GHB-1500 | JET, MAIN (#150) (Optional). | 1 шт. | — | |
|
| 39 | 99101-GHB-1520 | JET, MAIN (#152) | 1 шт. | — | |
|
| 40 | 99104-KC1-0500 | JET, SLOW (#50) | 1 шт. | — | |
|
