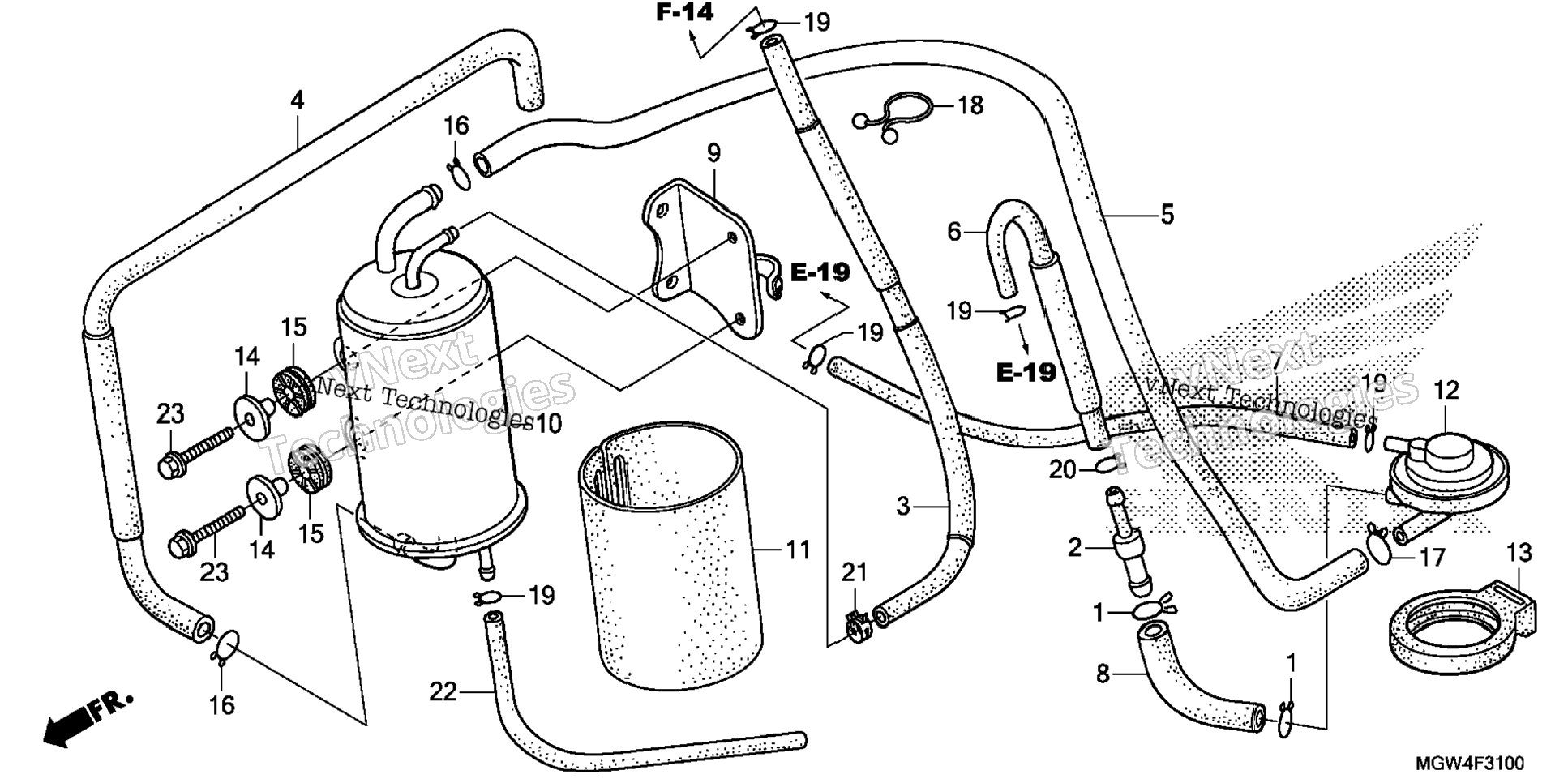

| 1 | 15772-551-000 | CLIP, BREATHER TUBE | 2 шт. | — | |
|
| 2 | 16966-MR1-000 | JOINT, FUEL TUBE | 1 шт. | — | |
|
| 3 | 17305-MY6-L80 | TUBE ASSY. (TANK-EVAP CANISTER) | 1 шт. | — | |
|
| 4 | 17306-MY6-680 | TUBE ASSY. (EVAP CANISTER-AIR) | 1 шт. | — | |
|
| 5 | 17308-MY6-680 | TUBE, CANISTER PURGE CONTROL VALVE | 1 шт. | — | |
|
| 6 | 17309-MY6-680 | TUBE A, P.C.V.-CARBURETOR AIR VENT | 1 шт. | — | |
|
| 7 | 17310-MY6-680 | TUBE | 1 шт. | — | |
|
| 8 | 17313-MY6-680 | TUBE B, P.C.V.-CARBURETOR AIR VENT | 1 шт. | — | |
|
| 9 | 17315-MY6-680 | STAY, CANISTER | 1 шт. | — | |
|
| 10 | 17410-MY6-682 | EVAPORATIVE EMISSION CANISTER (TOYO ROKI) | 1 шт. | — | |
|
| 11 | 17411-MG8-730 | COVER, CANISTER | 1 шт. | — | |
|
| 12 | 17440-MS2-721 | EVAPORATIVE EMISSION PURGE CONTROL VALVE | 1 шт. | — | |
|
| 13 | 17451-ME5-760 | RUBBER, PURGE CONTROL VALVE MOUNTING | 1 шт. | — | |
|
| 14 | 61104-422-000 | COLLAR, SETTING | 2 шт. | — | |
|
| 15 | 84703-425-000 | RUBBER, TAILLIGHT MOUNTING | 2 шт. | — | |
|
| 16 | 90651-KM9-000 | CLIP, TUBE (B14) | 2 шт. | — | |
|
| 17 | 90654-MK3-780 | CLIP, TUBE (B14) | 1 шт. | — | |
|
| 18 | 90683-GS9-670 | BAND, TUBE | 1 шт. | — | |
|
| 19 | 95002-02080 | CLIP, TUBE (B8) CLIP, TUBE (B7) | 5 шт. | — | |
|
| 20 | 95002-02100 | CLIP, TUBE (B10) | 1 шт. | — | |
|
| 21 | 95002-40800-08 | CLAMP, TUBE (D8) | 1 шт. | — | |
|
| 22 | 95005-45001-20M | BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M) | 1 шт. | — | |
|
| 23 | 96300-06022-00 | BOLT, FLANGE (6X22) | 2 шт. | — | |
|
