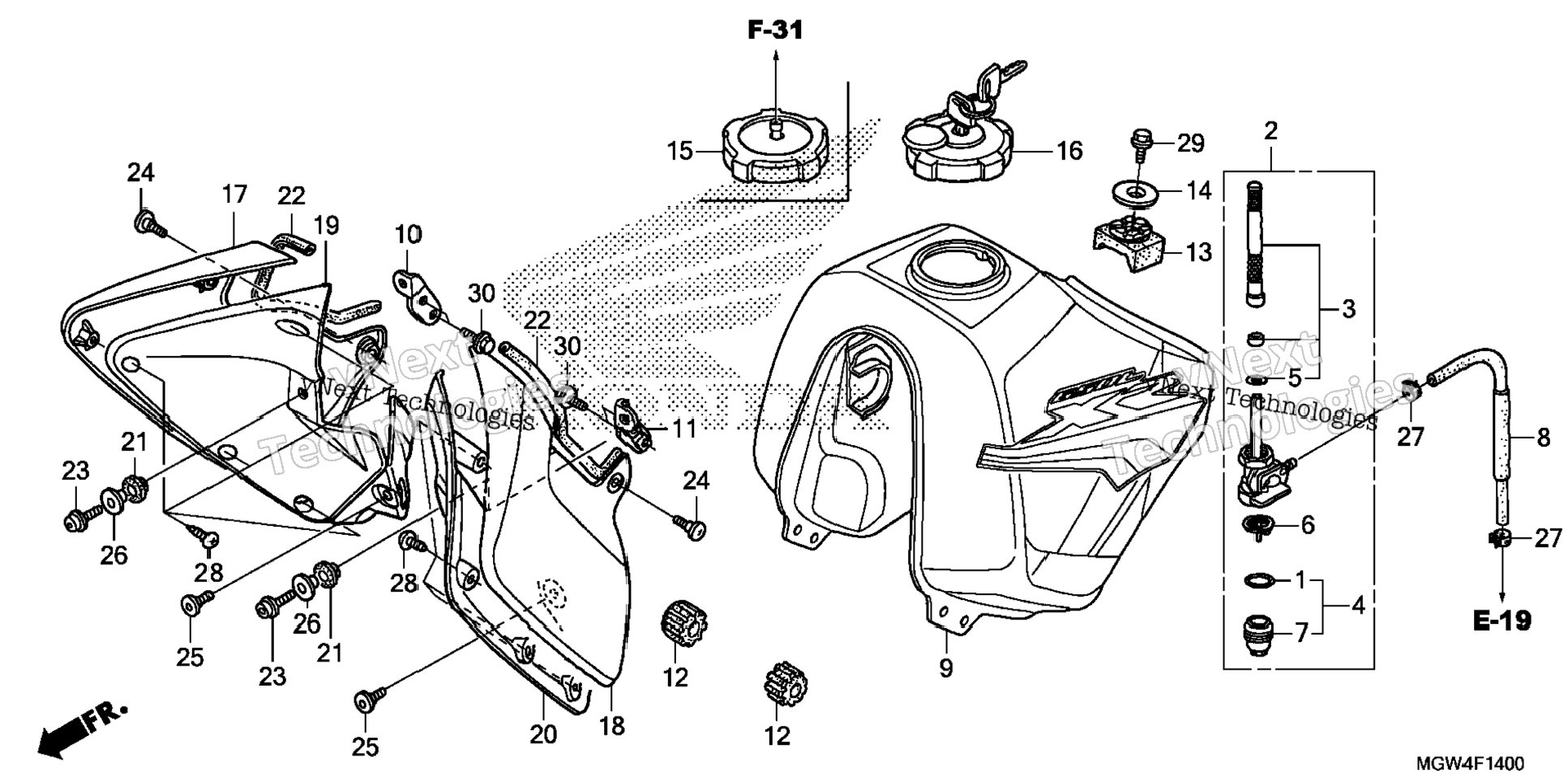

| 1 | 16173-001-004 | GASKET, FUEL STRAINER CUP | 1 шт. | — | |
|
| 2 | 16950-MY6-791 | PETCOCK ASSY. | 1 шт. | — | |
|
| 3 | 16952-HA8-005 | SCREEN SET, FUEL STRAINER | 1 шт. | — | |
|
| 4 | 16953-GT4-305 | CUP SET, FUEL STRAINER | 1 шт. | — | |
|
| 5 | 16075-GHB-720 | O-RING | 1 шт. | — | |
|
| 6 | 16195-657-300 | O-RING (10.6X1.3) | 1 шт. | — | |
|
| 7 | 16958-MA1-731 | O-RING | 1 шт. | — | |
|
| 8 | 16959-471-831 | FILTER, CUP | 1 шт. | — | |
|
| 9 | 16967-GA6-671 | CUP, FUEL STRAINER | 1 шт. | — | |
|
| 10 | 17515-MY6-A80 | TUBE, FUEL | 1 шт. | — | |
|
| 11 | 17520-MGW-L60ZB | TANK SET, FUEL (TYPE1) (WL) | 1 шт. | — | |
|
| 12 | 17523-MY6-700 | STAY, R. SHROUD (INNER) | 1 шт. | — | |
|
| 13 | 17524-MY6-700 | STAY, L. SHROUD (INNER) | 1 шт. | — | |
|
| 14 | 17611-MG2-000 | CUSHION, FR. FUEL TANK RUBBER, FR. FUEL TANK | 2 шт. | — | |
|
| 15 | 17613-MY6-770 | CUSHION, RR. FUEL TANK | 1 шт. | — | |
|
| 16 | 17614-MY6-670 | WASHER, TANK MOUNT SETTING | 1 шт. | — | |
|
| 17 | 17620-KE1-023 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 18 | 19030-MY6-700ZB | SHROUD, R. *R134* (FIGHTING RED) | 1 шт. | — | |
|
| 19 | 19040-MY6-700ZB | SHROUD, L. *R134* (FIGHTING RED) | 1 шт. | — | |
|
| 20 | 19050-MY6-700ZB | PANEL, R. SHROUD (INNER) *NH1* (BLACK) | 1 шт. | — | |
|
| 21 | 19065-MY6-690ZB | PANEL, L. SHROUD (INNER) *NH1* (BLACK) | 1 шт. | — | |
|
| 22 | 33718-GE2-690 | RUBBER, TAILLIGHT SETTING | 2 шт. | — | |
|
| 23 | 64106-MY6-A00 | MOLDING, SHROUD | 2 шт. | — | |
|
| 24 | 90004-ML4-610 | BOLT, FLANGE SOCKET (6X18) | 2 шт. | — | |
|
| 25 | 90112-MS2-000 | SCREW, PAN (6X22) | 2 шт. | — | |
|
| 26 | 90124-MY6-670 | SCREW, PAN (6X13) | 2 шт. | — | |
|
| 27 | 90505-MY6-700 | COLLAR (6.6X6.8) | 2 шт. | — | |
|
| 28 | 90651-HN6-A51 | CLAMP, TUBE (12.0) | 2 шт. | — | |
|
| 29 | 93903-24310 | SCREW, TAPPING (4X12) | 8 шт. | — | |
|
| 30 | 96300-06010-00 | BOLT, FLANGE (6X10) | 1 шт. | — | |
|
| 31 | 96300-06012-00 | BOLT, FLANGE (6X12) | 4 шт. | — | |
|
