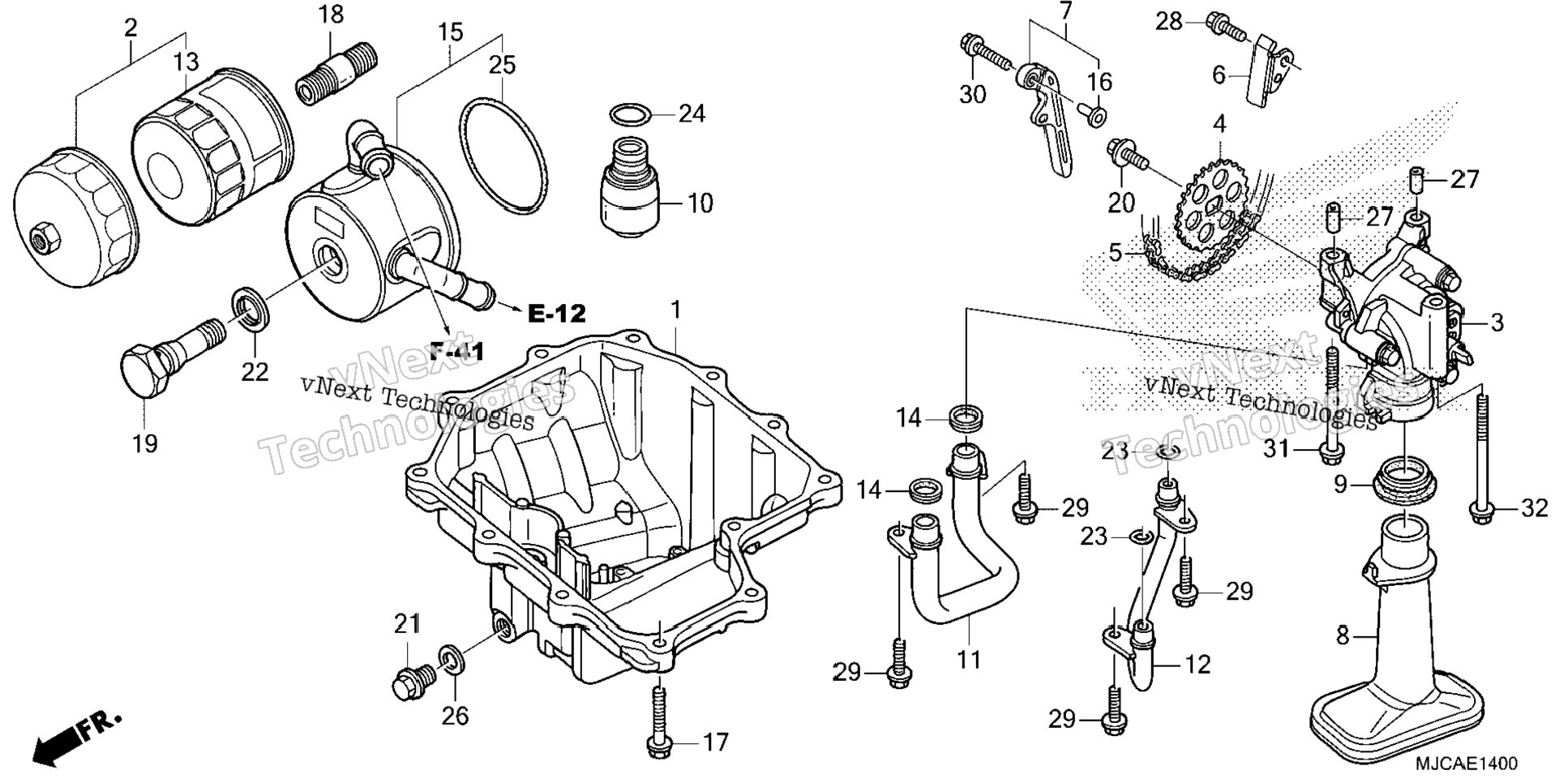

| 1 | 11210-MFJ-D01 | PAN, OIL | 0 шт. | — | |
|
| 2 | 15010-MKR-305 | FILTER SET, OIL | 0 шт. | — | |
|
| 3 | 15100-MFJ-D00 | PUMP ASSY., OIL | 0 шт. | — | |
|
| 4 | 15134-MAL-600 | SPROCKET, OIL PUMP DRIVEN (25T) | 0 шт. | — | |
|
| 5 | 15141-MFJ-D01 | CHAIN, OIL PUMP DRIVE (DID25H-72L) | 0 шт. | — | |
|
| 6 | 15145-MFJ-D00 | GUIDE A, OIL PUMP CHAIN | 0 шт. | — | |
|
| 7 | 15146-MFJ-D00 | GUIDE B, OIL PUMP CHAIN | 0 шт. | — | |
|
| 8 | 15150-MFJ-D01 | STRAINER, OIL | 0 шт. | — | |
|
| 9 | 15154-MAT-000 | GASKET, OIL STRAINER | 0 шт. | — | |
|
| 10 | 15220-MBW-000 | VALVE ASSY., RELIEF | 0 шт. | — | |
|
| 11 | 15310-MFJ-D01 | PIPE A, OIL | 0 шт. | — | |
|
| 12 | 15320-MFJ-D00 | PIPE B, OIL | 0 шт. | — | |
|
| 13 | 15410-MFJ-D02 | FILTER, OIL (WAKO FILTER) | 0 шт. | — | |
|
| 14 | 15433-MFJ-D01 | RING, SEAL | 0 шт. | — | |
|
| 15 | 15700-MFJ-D01 | COOLER, OIL | 0 шт. | — | |
|
| 16 | 61107-MCR-D00 | COLLAR, FR. FENDER | 0 шт. | — | |
|
| 17 | 90006-GHB-680 | BOLT, FLANGE (6X28) (NSHF) | 0 шт. | — | |
|
| 18 | 90019-MB0-000 | BOSS, OIL FILTER (Honda Code 1243435) | 0 шт. | — | |
|
| 19 | 90019-MGP-D60 | BOLT, OIL COOLER | 0 шт. | — | |
|
| 20 | 90021-MM5-000 | BOLT-WASHER (6X12) (Honda Code 2551760) | 0 шт. | — | |
|
| 21 | 90131-896-650 | BOLT, DRAIN PLUG (12X15) | 0 шт. | — | |
|
| 22 | 90402-MFJ-D01 | WASHER, SEALING (34.5MM) | 0 шт. | — | |
|
| 23 | 91309-ML7-003 | O-RING (9.6X2.6) (ARAI) | 0 шт. | — | |
|
| 24 | 91313-MG7-004 | O-RING (14.8X2.2) (Honda Code 3353620) | 0 шт. | — | |
|
| 25 | 91354-MCT-003 | O-RING, OIL COOLER | 0 шт. | — | |
|
| 26 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 0 шт. | — | |
|
| 27 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 0 шт. | — | |
|
| 28 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 0 шт. | — | |
|
| 29 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 0 шт. | — | |
|
| 30 | 95701-06020-00 | BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) | 0 шт. | — | |
|
| 31 | 95701-06050-00 | BOLT, FLANGE (6X50) (Honda Code 2410975) | 0 шт. | — | |
|
| 32 | 95701-06060-00 | BOLT, FLANGE (6X60) | 0 шт. | — | |
|
