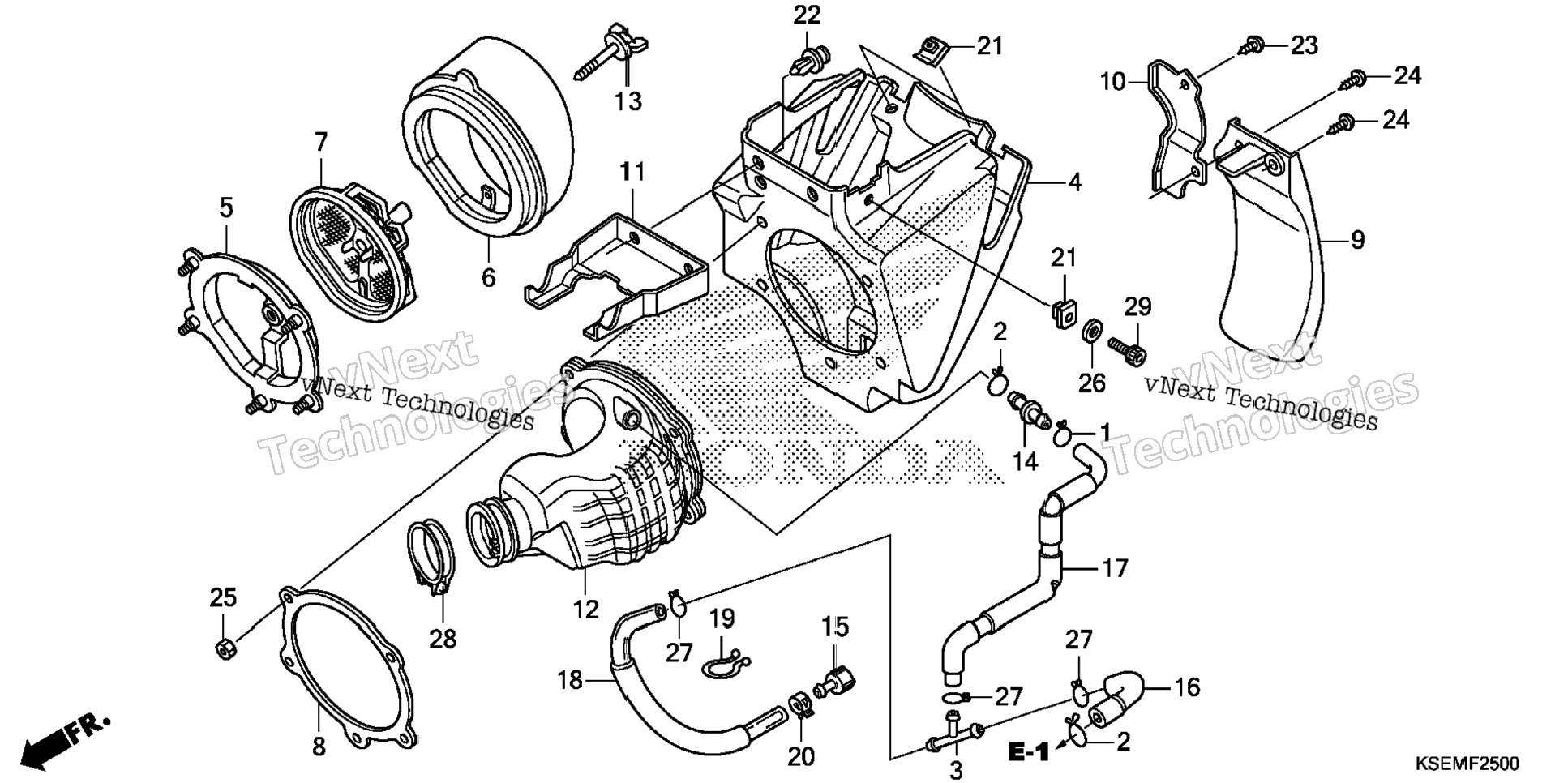

| 1 | 15707-634-000 | CLIP, OIL DRAIN TUBE | 1 шт. | — | |
|
| 2 | 15771-551-000 | CLIP, OIL DRAIN TUBE | 2 шт. | — | |
|
| 3 | 16959-MY1-000 | JOINT, FUEL TUBE | 1 шт. | — | |
|
| 4 | 17210-KSE-000 | HOUSING, AIR CLEANER | 1 шт. | — | |
|
| 5 | 17212-KSE-000 | STAY, AIR CLEANER ELEMENT | 1 шт. | — | |
|
| 6 | 17213-KSE-000 | ELEMENT, AIR CLEANER | 1 шт. | — | |
|
| 7 | 17214-KSE-000 | BASE ASSY., ELEMENT | 1 шт. | — | |
|
| 8 | 17217-KSE-000 | PLATE, FR. CASE | 1 шт. | — | |
|
| 9 | 17220-KSE-000 | SPLASH GUARD, AIR CLEANER | 1 шт. | — | |
|
| 10 | 17221-KSE-000 | GUARD, AIR CLEANER | 1 шт. | — | |
|
| 11 | 17223-KSE-000 | VISOR, AIR CLEANER HOUSING | 1 шт. | — | |
|
| 12 | 17253-KSE-000 | TUBE, AIR CLEANER CONNECTING | 1 шт. | — | |
|
| 13 | 17291-GBF-830 | BOLT, ELEMENT SETTING | 1 шт. | — | |
|
| 14 | 17359-MAG-L00 | JOINT, BREATHER TUBE | 1 шт. | — | |
|
| 15 | 17370-419-700 | PLUG, BREATHER TUBE | 1 шт. | — | |
|
| 16 | 17372-KSE-000 | TUBE A, BREATHER | 1 шт. | — | |
|
| 17 | 17373-KSE-000 | TUBE B, BREATHER | 1 шт. | — | |
|
| 18 | 17375-KSE-000 | TUBE C, BREATHER | 1 шт. | — | |
|
| 19 | 32171-GF9-621 | LOCK, PURSE | 1 шт. | — | |
|
| 20 | 43514-KS6-701 | CLAMP, MASTER CYLINDER OIL HOSE | 1 шт. | — | |
|
| 21 | 84601-HA7-670 | NUT, FENDER SETTING | 3 шт. | — | |
|
| 22 | 90653-HC4-900 | CLIP, SPLASH GUARD (Honda Code 3795994) | 2 шт. | — | |
|
| 23 | 93913-15280 | SCREW, TAPPING (5X12) (PO) | 1 шт. | — | |
|
| 24 | 93913-15410 | SCREW, TAPPING (5X16) (PO) | 2 шт. | — | |
|
| 25 | 94002-05000-0S | NUT, HEX. (5MM) | 5 шт. | — | |
|
| 26 | 94101-06000 | WASHER, PLAIN (6MM) | 1 шт. | — | |
|
| 27 | 94101-06080 | WASHER, PLAIN (6MM) | 1 шт. | — | |
|
| 28 | 94101-06800 | WASHER, PLAIN (6MM) (USED ON TAILLIGHT) | 1 шт. | — | |
|
| 29 | 95002-02120 | CLIP, TUBE (B12) | 3 шт. | — | |
|
| 30 | 95018-52201 | BAND, AIR CLEANER CONNECTING TUBE (52) | 1 шт. | — | |
|
| 31 | 96600-06014-00 | BOLT, SOCKET (6X14) | 1 шт. | — | |
|
