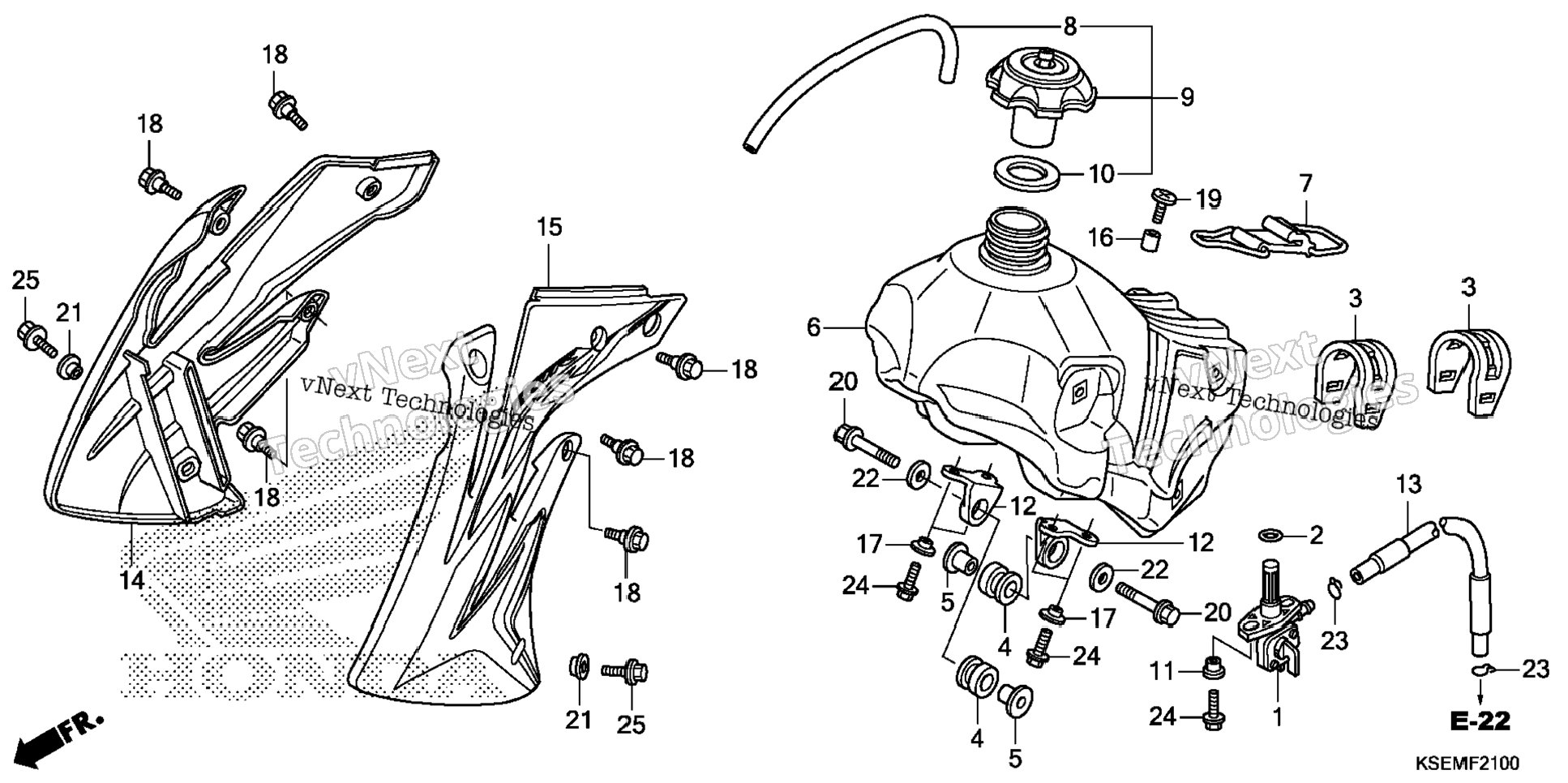

| 1 | 16950-KSE-003 | PETCOCK ASSY. | 1 шт. | — | |
|
| 2 | 16997-467-000 | O-RING (11.8X3.55) | 1 шт. | — | |
|
| 3 | 17506-KZ3-860 | RUBBER, FUEL TANK SETTING | 2 шт. | — | |
|
| 4 | 17508-GBF-830 | RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING | 2 шт. | — | |
|
| 5 | 17509-KSE-000 | COLLAR, TANK SET | 2 шт. | — | |
|
| 6 | 17510-KSE-000 | TANK, FUEL | 1 шт. | — | |
|
| 7 | 17516-KT0-670 | BAND, RR. TANK | 1 шт. | — | |
|
| 8 | 17521-429-000 | TUBE, FUEL CAP BREATHER | 1 шт. | — | |
|
| 9 | 17620-ML3-600 | CAP ASSY., FUEL TANK | 1 шт. | — | |
|
| 10 | 17624-KA4-000 | GASKET, FUEL TANK CAP | 1 шт. | — | |
|
| 11 | 17626-467-000 | COLLAR, FUEL TANK SETTING | 2 шт. | — | |
|
| 12 | 17634-KZ3-860 | BRACKET, FR. FUEL TANK | 2 шт. | — | |
|
| 13 | 17681-KSE-000 | TUBE, FUEL | 1 шт. | — | |
|
| 14 | 19071-KSE-N00ZA | SHROUD SET, R. RADIATOR (TYPE1) (WL) | 1 шт. | — | |
|
| 15 | 19072-KSE-N00ZA | SHROUD SET, L. RADIATOR (TYPE1) (WL) | 1 шт. | — | |
|
| 16 | 83607-356-000 | COLLAR, BATTERY (LOWER) | 1 шт. | — | |
|
| 17 | 84706-415-000 | COLLAR | 4 шт. | — | |
|
| 18 | 90113-GF0-000 | BOLT, FLANGE (6MM) | 6 шт. | — | |
|
| 19 | 90124-MM9-000 | SCREW, COWL SETTING (LOWER) | 1 шт. | — | |
|
| 20 | 90137-KA3-830 | BOLT, FLANGE (6X40) | 2 шт. | — | |
|
| 21 | 90501-KZ4-J20 | COLLAR A | 2 шт. | — | |
|
| 22 | 90506-430-000 | WASHER, FENDER MOUNTING | 2 шт. | — | |
|
| 23 | 95002-02120 | CLIP, TUBE (B12) | 2 шт. | — | |
|
| 24 | 96001-06016-00 | BOLT, FLANGE (6X16) | 6 шт. | — | |
|
| 25 | 96001-06018-00 | BOLT, FLANGE (6X18) | 2 шт. | — | |
|
