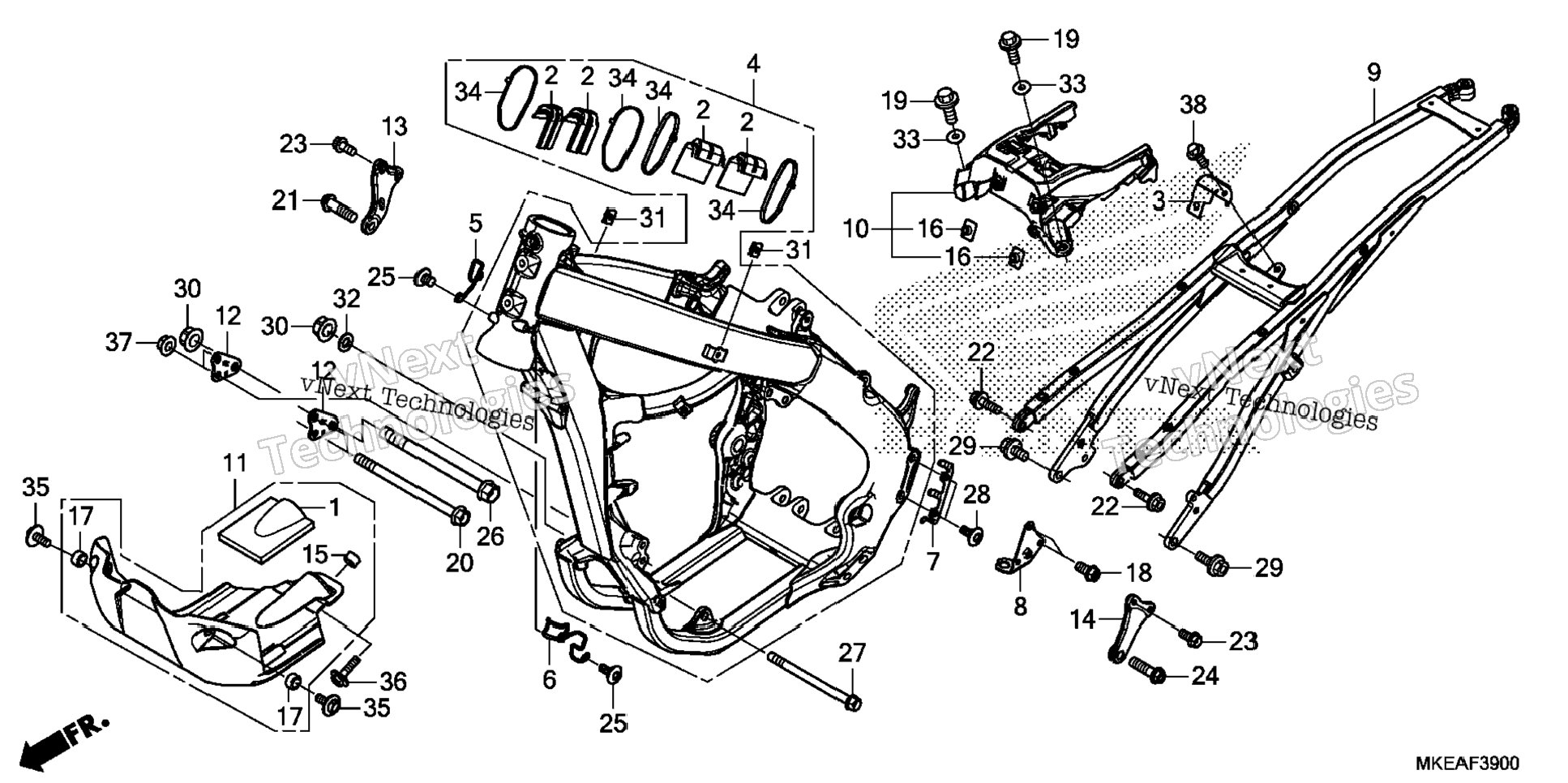

| 1 | 17269-MCZ-300 | MAT, SIDE COVER | 1 шт. | — | |
|
| 2 | 17522-MKE-A00 | RUBBER, TANK SIDE MOUNTING | 4 шт. | — | |
|
| 3 | 38315-MKE-A50 | STAY, RELAY | 1 шт. | — | |
|
| 4 | 50010-MKE-A50 | FRAME SET | 1 шт. | — | |
|
| 5 | 50128-MKE-A50 | GUIDE, CABLE | 1 шт. | — | |
|
| 6 | 50129-MKE-A50 | GUIDE, CLUTCH CABLE | 1 шт. | — | |
|
| 7 | 50133-MKE-A50 | CLAMP, SIDE STAND SWITCH HARNESS | 1 шт. | — | |
|
| 8 | 50175-MKE-A50 | STAY, STOP SWITCH | 1 шт. | — | |
|
| 9 | 50200-MKE-A50 | FRAME, RR. | 1 шт. | — | |
|
| 10 | 50250-MKE-A00 | BASE ASSY., SEAT SUPPORT | 1 шт. | — | |
|
| 11 | 50357-MKE-A50 | GUARD, ENGINE | 1 шт. | — | |
|
| 12 | 50405-K95-A20 | PLATE, FR. ENGINE HANGER | 2 шт. | — | |
|
| 13 | 50407-MKE-A50 | PLATE, R. HEAD HANGER | 1 шт. | — | |
|
| 14 | 50408-MKE-A50 | PLATE, L. HEAD HANGER | 1 шт. | — | |
|
| 15 | 61103-MGS-D30 | COLLAR B, FR. FENDER | 1 шт. | — | |
|
| 16 | 61304-GFC-900 | NUT, SPECIAL (6X7) | 2 шт. | — | |
|
| 17 | 80123-MA1-640 | COLLAR, SPLASH GUARD | 2 шт. | — | |
|
| 18 | 90020-GHB-620 | BOLT, FLANGE (6X12) | 2 шт. | — | |
|
| 19 | 90020-GHB-650 | BOLT, FLANGE (6X18) | 2 шт. | — | |
|
| 20 | 90101-MEN-A30 | BOLT, FLANGE (8X121) | 2 шт. | — | |
|
| 21 | 90102-MEN-A30 | BOLT, FLANGE (10X30) | 1 шт. | — | |
|
| 22 | 90102-MKE-A00 | BOLT, FLANGE (8X28) (SH) | 2 шт. | — | |
|
| 23 | 90103-MEB-670 | BOLT, FLANGE (8X18) | 4 шт. | — | |
|
| 24 | 90105-MEN-A30 | BOLT, FLANGE (10X37) | 1 шт. | — | |
|
| 25 | 90106-KSE-000 | SCREW, PAN (6X12) | 2 шт. | — | |
|
| 26 | 90106-MEN-A30 | BOLT, FLANGE (10X123) | 1 шт. | — | |
|
| 27 | 90111-MEN-A70 | BOLT, FLANGE (10X134) | 1 шт. | — | |
|
| 28 | 90114-MAC-780 | BOLT, FR. DISK COVER (FOR RR.) | 2 шт. | — | |
|
| 29 | 90122-MEN-730 | BOLT (10X24) | 2 шт. | — | |
|
| 30 | 90302-KZ3-J40 | NUT, FLANGE (10MM) | 2 шт. | — | |
|
| 31 | 90303-MGZ-J40 | NUT, CLIP (6MM) | 2 шт. | — | |
|
| 32 | 90410-HC4-000 | WASHER (10MM) | 1 шт. | — | |
|
| 33 | 90501-KZ4-J20 | COLLAR A | 2 шт. | — | |
|
| 34 | 91560-MS8-600 | TY-RAP, CABLE | 4 шт. | — | |
|
| 35 | 93404-06016-07 | BOLT-WASHER (6X16) | 2 шт. | — | |
|
| 36 | 93404-06025-07 | BOLT-WASHER (6X25) | 1 шт. | — | |
|
| 37 | 94050-08000 | NUT, FLANGE (8MM) NUT, FLANGE (10MM) | 2 шт. | — | |
|
| 38 | 96001-06010-00 | BOLT, FLANGE (6X10) | 1 шт. | — | |
|
