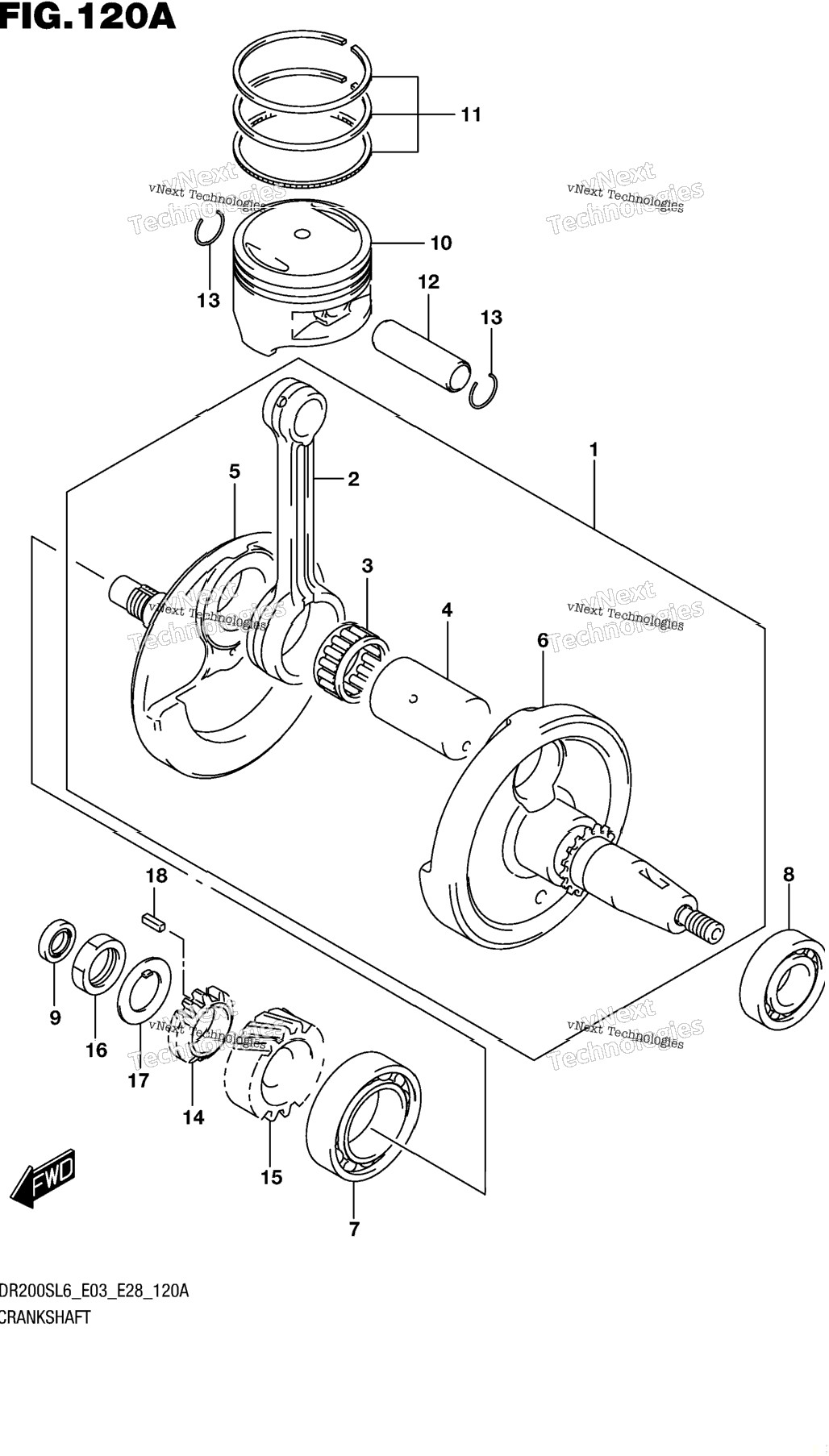

| 1 | 12200-42A21 | CRANKSHAFT ASSY | 1 шт. | — | |
|
| 2 | 12161-42A01 | .ROD, CONNECTING | 1 шт. | — | |
|
| 3 | 09263-31008-0B0 | .BEARING (31X38X18) | 1 шт. | — | |
|
| 4 | 12210-42A01 | .PIN, CRANK | 1 шт. | — | |
|
| 5 | 12221-42A02 | .CRANKSHAFT RH | 0 шт. | — | |
|
| 6 | 12261-42A20 | .CRANKSHAFT LH | 1 шт. | — | |
|
| 7 | 09262-28014 | BEARING (28X68X18) RH | 1 шт. | — | |
|
| 8 | 09262-35038 | BEARING (35X72X17) LH | 1 шт. | — | |
|
| 9 | 09282-12009 | OIL SEAL (12X21X7) | 1 шт. | — | |
|
| 10 | 12111-42A20-0F0 | PISTON | 1 шт. | — | |
|
| 11 | 12140-42A01 | RING SET, PISTON | 1 шт. | — | |
|
| 12 | 12151-22A02 | PIN, PISTON | 1 шт. | — | |
|
| 13 | 09381-16001 | CIRCLIP | 2 шт. | — | |
|
| 14 | 16321-42A00 | GEAR, OIL PUMP DRIVE (NT:15) | 0 шт. | — | |
|
| 15 | 21111-42A01 | GEAR, PRIMARY DRIVE (NT:19) | 0 шт. | — | |
|
| 16 | 09140-18004 | NUT | 1 шт. | — | |
|
| 17 | 09166-18003 | WASHER | 1 шт. | — | |
|
| 18 | 09421-04007 | KEY | 1 шт. | — | |
|
