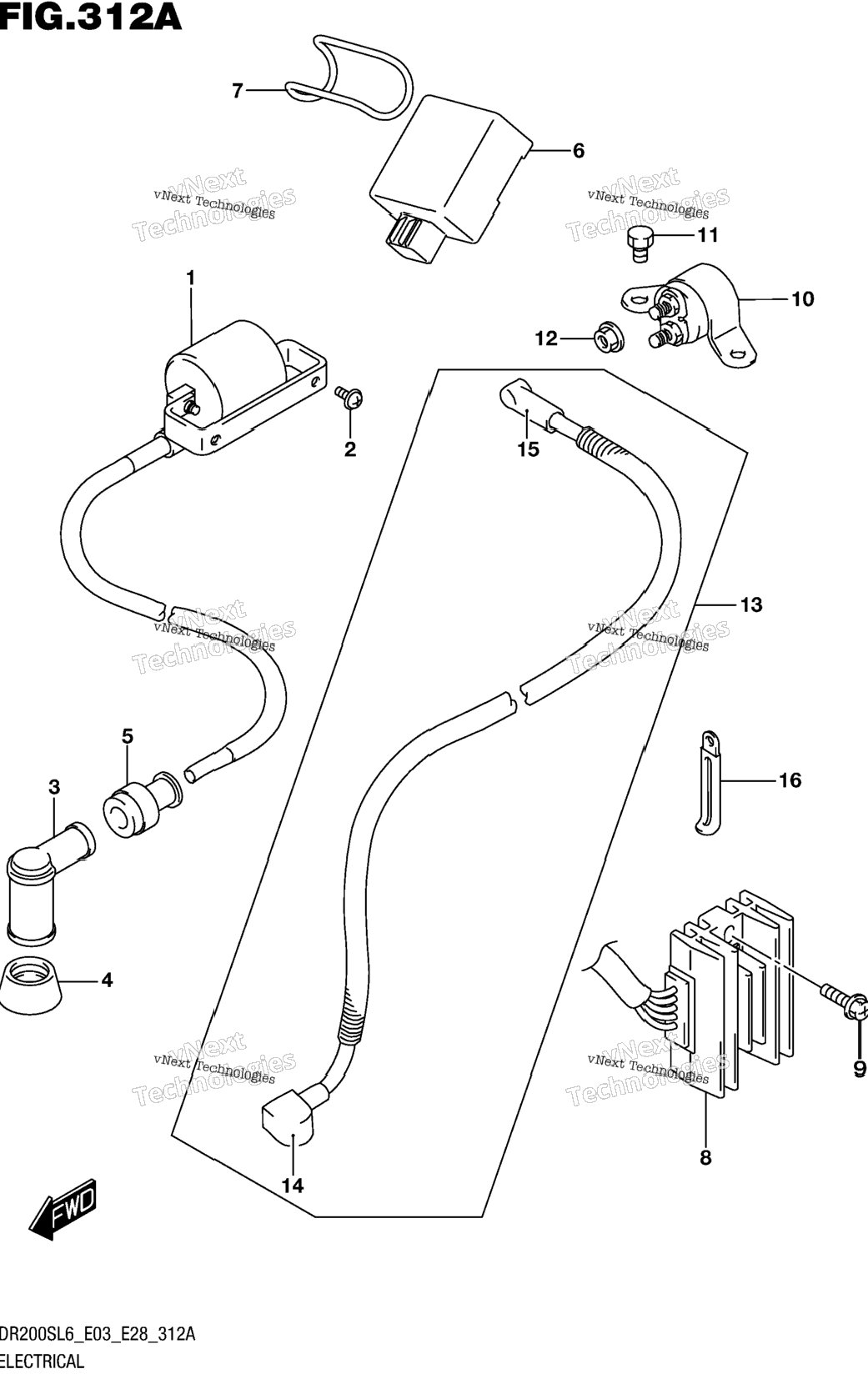

| 1 | 33410-44A00 | COIL ASSY, IGNITION | 1 шт. | — | |
|
| 2 | 02142-0510A | SCREW | 2 шт. | — | |
|
| 3 | 33510-22010 | CAP,SPARK PLUG | 1 шт. | — | |
|
| 4 | 33541-38210 | SEAL,SPARK PLUG | 1 шт. | — | |
|
| 5 | 33542-38B00 | SEAL, HIGH TENSION CORD | 1 шт. | — | |
|
| 6 | 32900-49J00 | CDI UNIT | 1 шт. | — | |
|
| 7 | 09280-63003 | O RING (D:3.5, ID:62.6) | 1 шт. | — | |
|
| 8 | 32800-19B11 | RECTIFIER ASSY | 1 шт. | — | |
|
| 9 | 02162-0625B | SCREW | 2 шт. | — | |
|
| 10 | 31800-15501 | RELAY ASSY, STARTING MOTOR | 1 шт. | — | |
|
| 11 | 09128-06044 | SCREW (6X10) | 2 шт. | — | |
|
| 12 | 08361-3506A | NUT | 2 шт. | — | |
|
| 13 | 33810-44A00 | WIRE, STARTER MOTOR LEAD | 1 шт. | — | |
|
| 14 | 31861-06C00 | .CAP, STARTER MOTOR TERMINAL | 1 шт. | — | |
|
| 15 | 31861-10D00 | .CAP, STARTER RELAY | 0 шт. | — | |
|
| 16 | 09404-06429 | CLAMP (L:45) | 1 шт. | — | |
|
