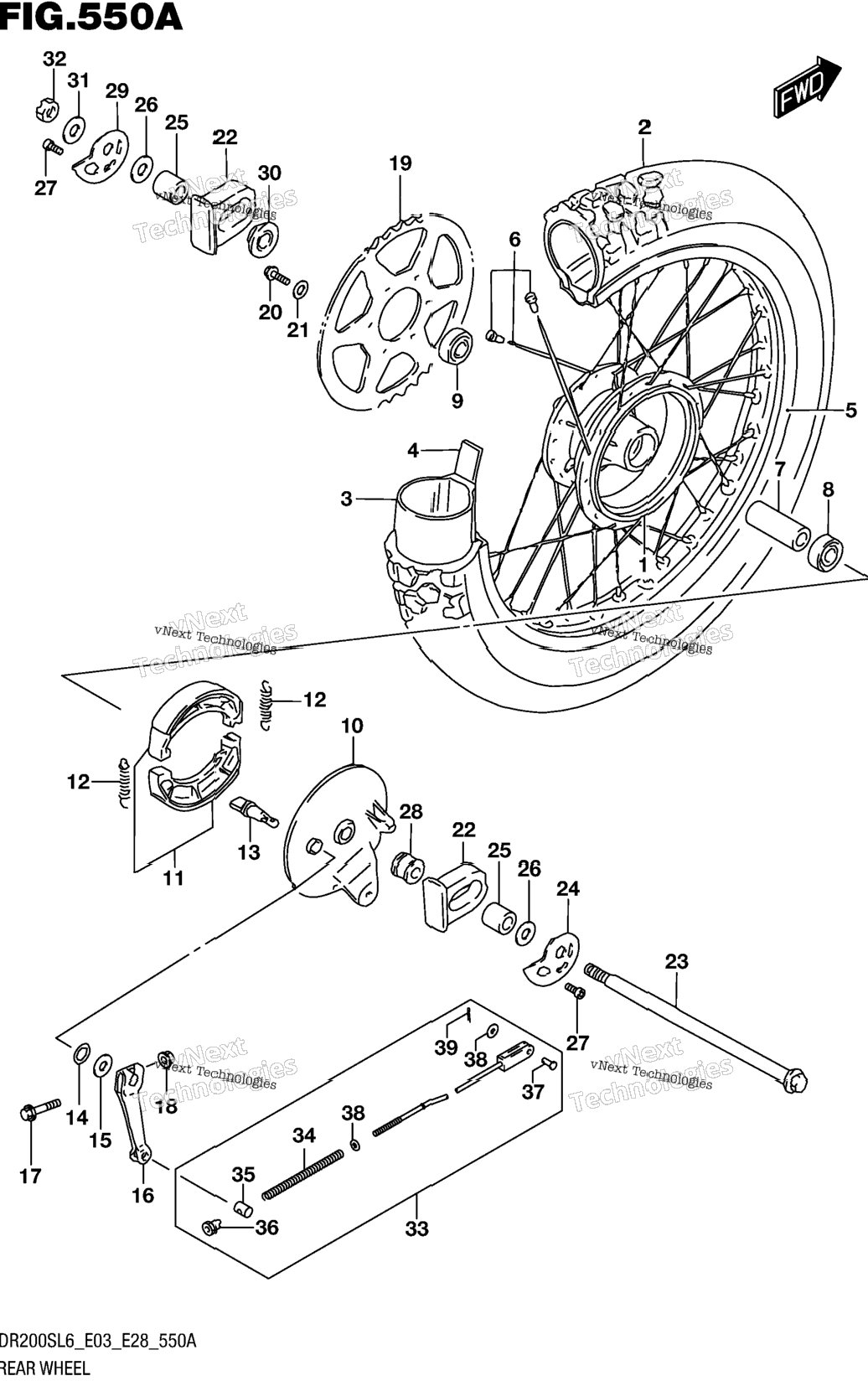

| 1 | 64110-44A10 | HUB, REAR WHEEL | 1 шт. | — | |
|
| 2 | 65110-42AA0 | TIRE, REAR (100/90-18M/C 56P) BRIDGESTONE | 1 шт. | — | |
|
| 3 | 65200-42AA1 | TUBE ASSY, WHEEL INNER | 1 шт. | — | |
|
| 4 | 65261-29231 | PROTECTOR, WHEEL INNER TUBE | 0 шт. | — | |
|
| 5 | 65311-42AA0 | RIM, REAR WHEEL (18X2.15) | 1 шт. | — | |
|
| 6 | 65320-42AA0 | SPOKE ASSY, REAR WHEEL | 1 шт. | — | |
|
| 7 | 09180-15013 | SPACER (15.3X21.7X107.5) | 1 шт. | — | |
|
| 8 | 08143-62027 | BEARING RH | 1 шт. | — | |
|
| 9 | 08123-63027 | BEARING LH | 1 шт. | — | |
|
| 10 | 64210-44A00 | PANEL, REAR BRAKE ANCHOR | 1 шт. | — | |
|
| 11 | 54400-07870 | SHOE SET, BRAKE | 1 шт. | — | |
|
| 12 | 09443-07001 | SPRING | 2 шт. | — | |
|
| 13 | 54441-29305 | CAM, BRAKE | 1 шт. | — | |
|
| 14 | 09280-14011 | O RING (D:2.5, ID:13.8) | 1 шт. | — | |
|
| 15 | 09160-14055 | WASHER (14.5X22X1.6) | 1 шт. | — | |
|
| 16 | 64451-30501 | LEVER, REAR BRAKE CAM | 1 шт. | — | |
|
| 17 | 01550-0640B | BOLT | 1 шт. | — | |
|
| 18 | 08316-1006B | NUT | 1 шт. | — | |
|
| 19 | 64511-42A01 | SPROCKET, REAR (NT:45) | 1 шт. | — | |
|
| 20 | 09103-08048 | BOLT (8X30) | 6 шт. | — | |
|
| 21 | 09164-08020 | WASHER | 6 шт. | — | |
|
| 22 | 61470-42A00 | CAP, REAR SWINGING ARM | 2 шт. | — | |
|
| 23 | 64711-44A11 | AXLE, REAR | 1 шт. | — | |
|
| 24 | 61411-42A00 | ADJUSTER, CHAIN RH | 1 шт. | — | |
|
| 25 | 61413-42A00 | SPACER, CHAIN ADJUSTER | 2 шт. | — | |
|
| 26 | 09160-15039 | WASHER (15.5X30X3.2) | 2 шт. | — | |
|
| 27 | 61431-42A10 | BOLT, CHAIN ADJUSTER | 2 шт. | — | |
|
| 28 | 64741-42A00 | SPACER, AXLE RH | 1 шт. | — | |
|
| 29 | 61421-42A00 | ADJUSTER, CHAIN LH | 1 шт. | — | |
|
| 30 | 64750-42A00 | SPACER, AXLE LH | 1 шт. | — | |
|
| 31 | 09160-14062 | WASHER (14.5X30X3.2) | 1 шт. | — | |
|
| 32 | 08319-3114A | NUT | 1 шт. | — | |
|
| 33 | 43300-42A02 | ROD ASSY, REAR BRAKE | 1 шт. | — | |
|
| 34 | 09440-09004 | .SPRING | 1 шт. | — | |
|
| 35 | 09209-13018 | .PIN (13X18) | 1 шт. | — | |
|
| 36 | 09150-06010 | .NUT | 1 шт. | — | |
|
| 37 | 09200-06013 | .PIN (10X16) | 1 шт. | — | |
|
| 38 | 08322-0106B | WASHER | 2 шт. | — | |
|
| 39 | 04111-2020A | .PIN, COTTER | 1 шт. | — | |
|
