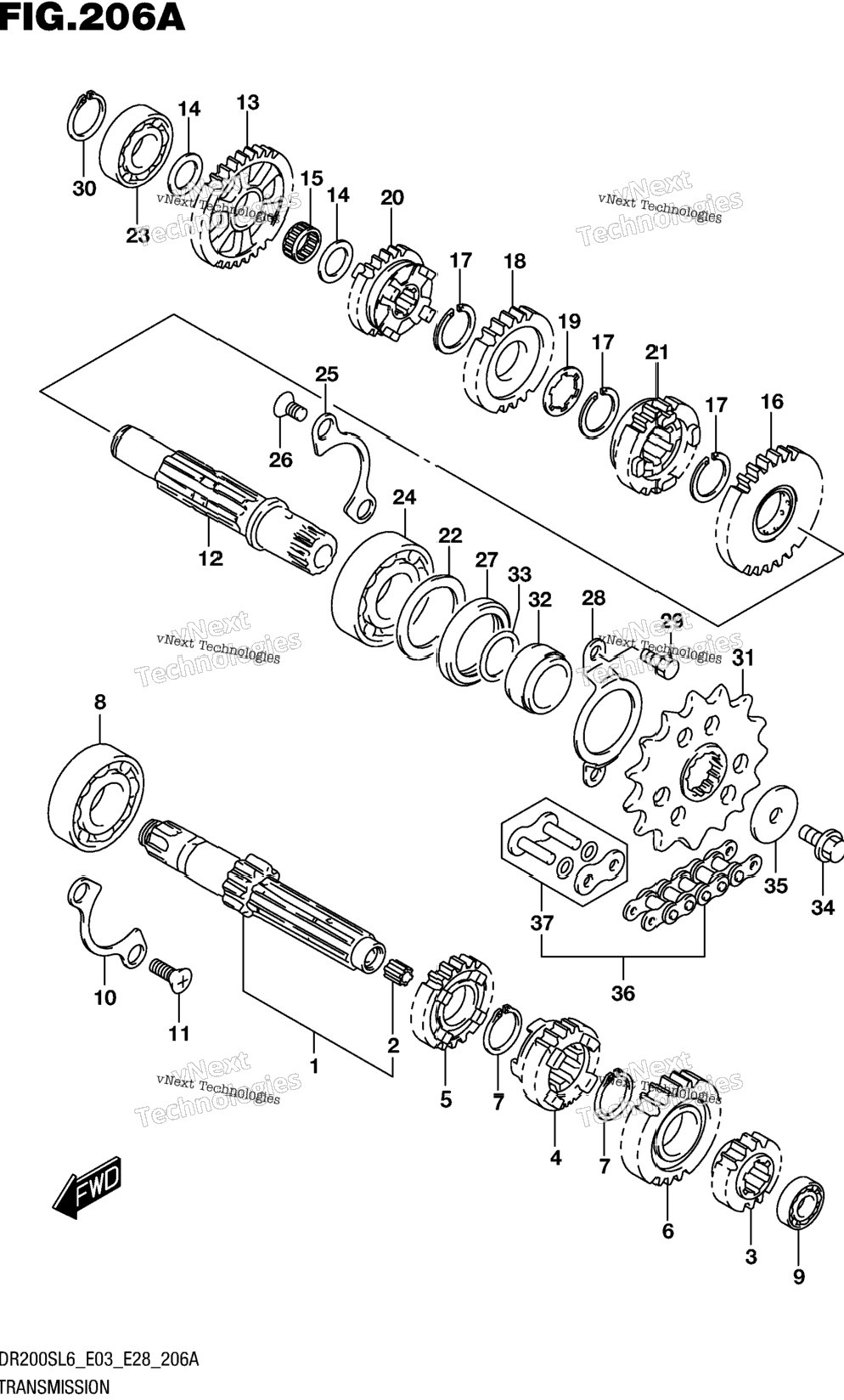

| 1 | 24120-42A10 | SHAFT, COUNTER (NT:11) | 0 шт. | — | |
|
| 2 | 24125-38201 | .BUSH | 1 шт. | — | |
|
| 3 | 24221-42A02 | GEAR, 2ND DRIVE (NT:15) | 1 шт. | — | |
|
| 4 | 24231-42A03 | GEAR, 3RD DRIVE (NT:16) | 0 шт. | — | |
|
| 5 | 24241-42A00 | GEAR, 4TH DRIVE (NT:21) | 1 шт. | — | |
|
| 6 | 24251-42A10 | GEAR, 5TH DRIVE (NT:23) | 0 шт. | — | |
|
| 7 | 09380-20009 | CIRCLIP | 2 шт. | — | |
|
| 8 | 09262-20069 | BEARING (20X47X14) RH | 1 шт. | — | |
|
| 9 | 08123-60027 | BEARING LH | 1 шт. | — | |
|
| 10 | 24741-05200 | RETAINER, DRIVE SHAFT BEARING | 0 шт. | — | |
|
| 11 | 09126-06011 | SCREW (6X12) | 2 шт. | — | |
|
| 12 | 24130-42A20 | SHAFT, DRIVE | 1 шт. | — | |
|
| 13 | 24311-42A00 | GEAR, 1ST DRIVEN (NT:33) | 1 шт. | — | |
|
| 14 | 09181-17167 | SHIM (17X26X1) | 2 шт. | — | |
|
| 15 | 09263-17004 | BEARING (17X21X9.8) | 1 шт. | — | |
|
| 16 | 24320-42A03 | GEAR, 2ND DRIVEN (NT:29) | 1 шт. | — | |
|
| 17 | 09380-22006 | CIRCLIP | 3 шт. | — | |
|
| 18 | 24331-42A02 | GEAR, 3RD DRIVEN (NT:23) | 1 шт. | — | |
|
| 19 | 09167-22011 | LOCK WASHER | 1 шт. | — | |
|
| 20 | 24341-42A02 | GEAR, 4TH DRIVEN (NT:23) | 1 шт. | — | |
|
| 21 | 24351-42A02 | GEAR, 5TH DRIVEN (NT:21) | 0 шт. | — | |
|
| 22 | 24359-42A00 | WASHER, OIL SEALING | 1 шт. | — | |
|
| 23 | 09264-17001 | BEARING (17X36X12) RH | 1 шт. | — | |
|
| 24 | 09262-22018 | BEARING (22X50X14) LH | 1 шт. | — | |
|
| 25 | 24741-05200 | RETAINER, DRIVE SHAFT BEARING | 0 шт. | — | |
|
| 26 | 09126-06011 | SCREW (6X12) | 2 шт. | — | |
|
| 27 | 09283-30053 | OIL SEAL (30X40X6) | 1 шт. | — | |
|
| 28 | 24751-42A10 | RETAINER, DRIVE SHAFT OIL SEA | 1 шт. | — | |
|
| 29 | 01500-0610A | BOLT | 2 шт. | — | |
|
| 30 | 08331-31179 | CIRCLIP | 1 шт. | — | |
|
| 31 | 27510-42A10 | SPROCKET, ENGINE (NT:15) | 1 шт. | — | |
|
| 32 | 27531-42A00 | SPACER, ENGINE SPROCKET | 1 шт. | — | |
|
| 33 | 09280-21008 | O RING (D:2.5, ID:21) | 1 шт. | — | |
|
| 34 | 01550-0812A | BOLT | 1 шт. | — | |
|
| 35 | 08211-08283 | WASHER | 1 шт. | — | |
|
| 36 | 27600-14A20-112 | CHAIN ASSY, DRIVE (DID520VC5) | 1 шт. | — | |
|
| 37 | 27620-14A20 | .JOINT SET, CHAIN | 1 шт. | — | |
|
