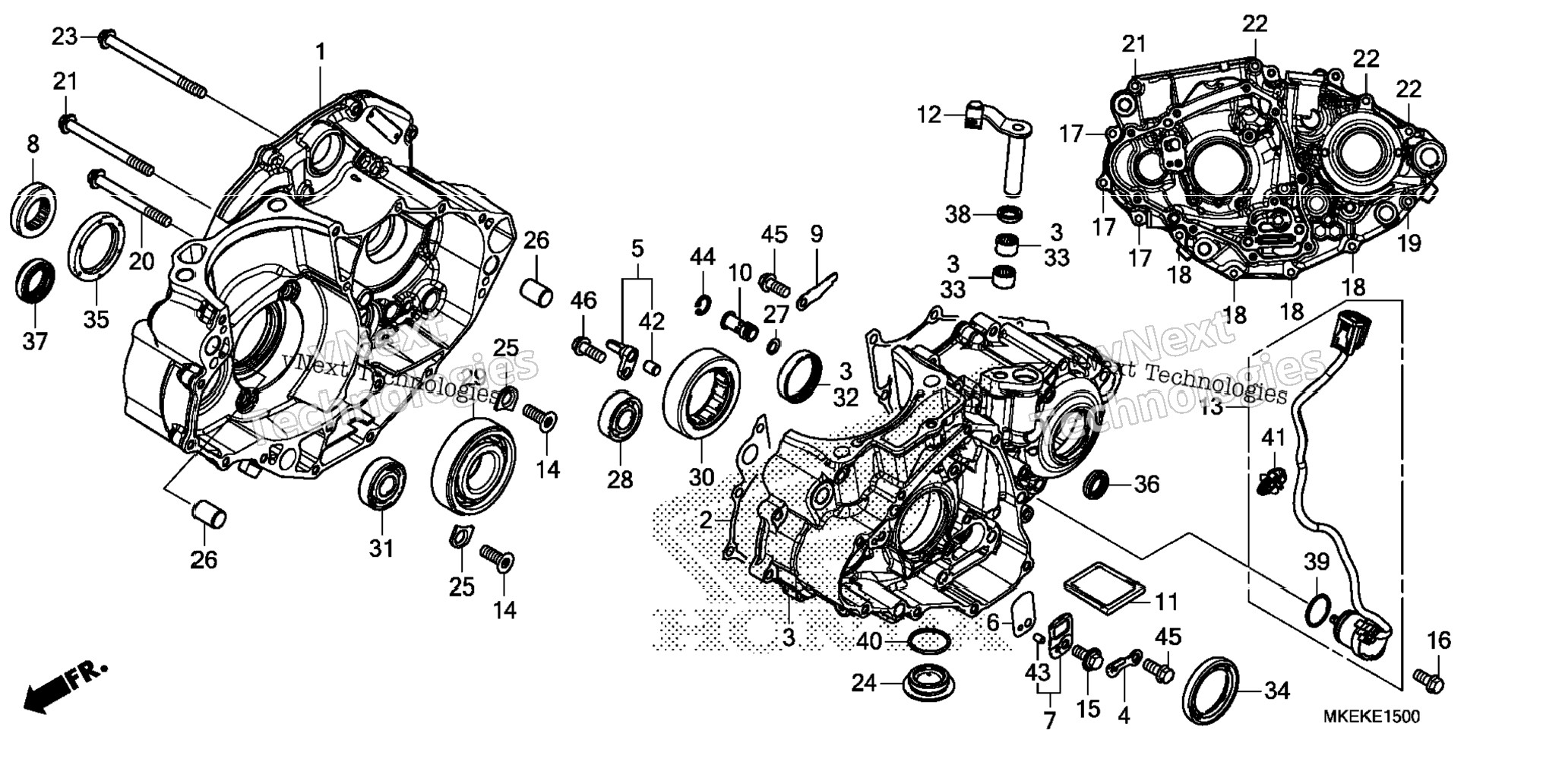

| 1 | 11100-MKE-A70 | CRANKCASE, R. | 1 шт. | — | |
|
| 2 | 11191-MKE-A01 | GASKET, CRANKCASE | 1 шт. | — | |
|
| 3 | 11200-MKE-A70 | CRANKCASE, L. | 1 шт. | — | |
|
| 4 | 11206-MKE-A00 | PLATE, CAM CHAIN GUIDE | 1 шт. | — | |
|
| 5 | 11210-MKE-A71 | JET, PISTON | 1 шт. | — | |
|
| 6 | 11221-MKE-A00 | VALVE, REED | 1 шт. | — | |
|
| 7 | 11230-MKE-A00 | STOPPER, REED VALVE | 1 шт. | — | |
|
| 8 | 13415-MKE-A00 | COLLAR, CRANKSHAFT | 1 шт. | — | |
|
| 9 | 15201-MKE-A00 | PLATE, OIL GUIDE | 1 шт. | — | |
|
| 10 | 15220-MEN-A30 | VALVE ASSY., RELIEF | 1 шт. | — | |
|
| 11 | 15421-MKE-A70 | SCREEN, OIL FILTER | 1 шт. | — | |
|
| 12 | 22810-MKE-A70 | LEVER, CLUTCH LIFTER | 1 шт. | — | |
|
| 13 | 35759-MKE-A72 | SWITCH ASSY., CHANGE | 1 шт. | — | |
|
| 14 | 90001-MEN-850 | SCREW, SPECIAL FLAT (6X17) | 2 шт. | — | |
|
| 15 | 90019-MKE-A00 | BOLT-WASHER (6X14) | 1 шт. | — | |
|
| 16 | 90020-GHB-620 | BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 17 | 90025-GHB-690 | BOLT, FLANGE (6X28) | 3 шт. | — | |
|
| 18 | 90025-GHB-740 | BOLT, FLANGE (6X40) | 4 шт. | — | |
|
| 19 | 90025-GHB-760 | BOLT, FLANGE (6X50) | 1 шт. | — | |
|
| 20 | 90025-GHB-780 | BOLT, FLANGE (6X60) | 1 шт. | — | |
|
| 21 | 90025-GHB-800 | BOLT, FLANGE (6X70) | 2 шт. | — | |
|
| 22 | 90025-GHB-810 | BOLT, FLANGE (6X75) | 3 шт. | — | |
|
| 23 | 90025-GHB-820 | BOLT, FLANGE (6X80) | 1 шт. | — | |
|
| 24 | 90088-MKE-A70 | BOLT, DRAIN (30MM) | 1 шт. | — | |
|
| 25 | 90441-MEN-A30 | PLATE, BEARING HOLDER | 2 шт. | — | |
|
| 26 | 90701-MKE-A00 | PIN, DOWEL (14X20) | 2 шт. | — | |
|
| 27 | 90751-GK1-003 | O-RING (8.5X1.7) | 1 шт. | — | |
|
| 28 | 91001-MEN-A31 | BEARING, RADIAL BALL SPECIAL (6202) | 1 шт. | — | |
|
| 29 | 91001-MKE-A71 | BEARING, RADIAL BALL (30X72X19) | 1 шт. | — | |
|
| 30 | 91002-MEY-671 | BEARING, SPECIAL ROLLER (NTN) | 1 шт. | — | |
|
| 31 | 91004-MKE-A01 | BEARING, RADIAL BALL (15X38X11) | 1 шт. | — | |
|
| 32 | 91022-KA4-741 | BEARING, SHELL (33X38X8) | 1 шт. | — | |
|
| 33 | 91101-PZ9-000 | BEARING, NEEDLE (12X16X10) | 2 шт. | — | |
|
| 33 | 91053-719-005 | BEARING, NEEDLE (12X16X10) (NTN) | 2 шт. | — | |
|
| 34 | 91201-MEB-671 | OIL SEAL (38X52X7) (ARAI) | 1 шт. | — | |
|
| 35 | 91202-MKE-A01 | OIL SEAL (39X53X7) | 1 шт. | — | |
|
| 36 | 91203-KSP-911 | OIL SEAL (14X22X5) (ARAI) | 1 шт. | — | |
|
| 37 | 91203-MKE-A01 | OIL SEAL (22X33X7.5) | 1 шт. | — | |
|
| 38 | 91205-MEB-671 | OIL SEAL (12X18X3) (ARAI) | 1 шт. | — | |
|
| 39 | 91305-KC1-850 | O-RING (16.5X2.5) | 1 шт. | — | |
|
| 40 | 91356-425-005 | O-RING (29.7X2.4) (NOK) | 1 шт. | — | |
|
| 41 | 91541-S0A-003 | CLIP, HARNESS BAND (145MM) (BLACK) | 1 шт. | — | |
|
| 42 | 94301-08100 | PIN A, DOWEL (8X10) | 1 шт. | — | |
|
| 43 | 94303-04065 | PIN C, DOWEL (4X6.5) | 1 шт. | — | |
|
| 44 | 94520-14000 | CIRCLIP (INNER) (14MM) | 1 шт. | — | |
|
| 45 | 96001-06014-00 | BOLT, FLANGE (6X14) | 2 шт. | — | |
|
| 46 | 96001-06016-00 | BOLT, FLANGE (6X16) | 1 шт. | — | |
|
