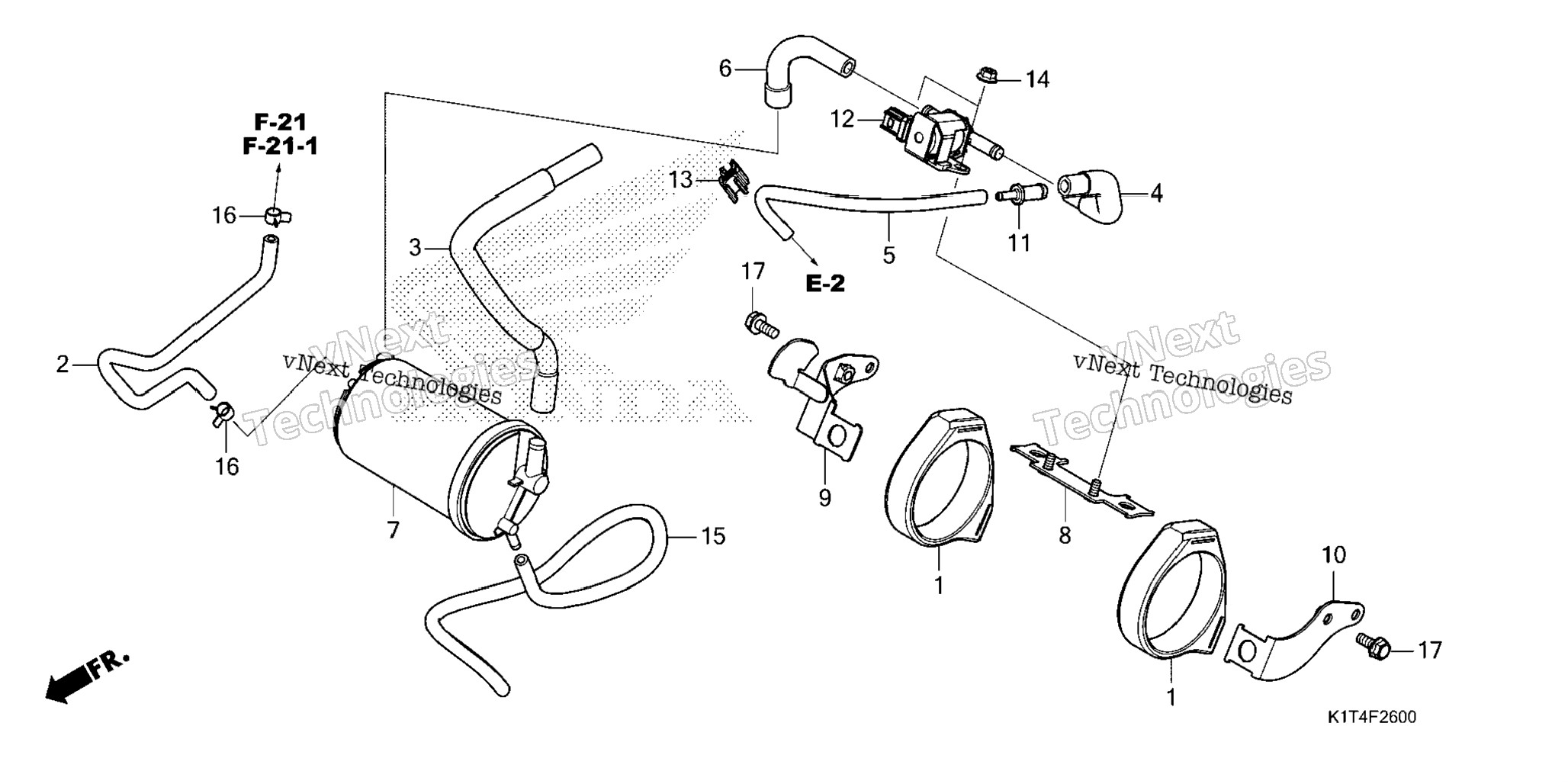

| 1 | 17411-KZZ-900 | RUBBER, CANISTER MOUNT | 2 шт. | — | |
|
| 2 | 17412-K1T-A10 | TUBE, CHARGE | 1 шт. | — | |
|
| 3 | 17413-K1T-E10 | TUBE, AIR | 1 шт. | — | |
|
| 4 | 17416-K1T-E10 | TUBE (PCSV-JOINT) | 1 шт. | — | |
|
| 5 | 17417-K1T-E10 | TUBE (JOINT-ENGINE) | 1 шт. | — | |
|
| 6 | 17418-K1T-E10 | TUBE (CANISTER-PCSV) | 1 шт. | — | |
|
| 7 | 17421-KYJ-902 | CANISTER | 1 шт. | — | |
|
| 8 | 17430-K1T-E10 | STAY, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 9 | 17450-K1T-E10 | STAY, R. CANISTER | 1 шт. | — | |
|
| 10 | 17460-K1T-E10 | STAY, L. CANISTER | 1 шт. | — | |
|
| 11 | 19126-KM1-010 | JOINT, TUBE | 1 шт. | — | |
|
| 12 | 36162-MKA-D81 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 13 | 78417-SJ6-003 | E-CLIP, SPEEDOMETER CABLE (BLACK) | 1 шт. | — | |
|
| 14 | 94050-05080 | NUT, FLANGE (5MM) | 2 шт. | — | |
|
| 15 | 95001-45003-60M | BULK HOSE, FUEL (4.5X3000) (95001-4500(95001-45001-60M) | 1 шт. | — | |
|
| 16 | 95002-40800-08 | CLAMP, TUBE (D8) | 2 шт. | — | |
|
| 17 | 96300-06014-00 | BOLT, FLANGE (6X14) | 2 шт. | — | |
|
