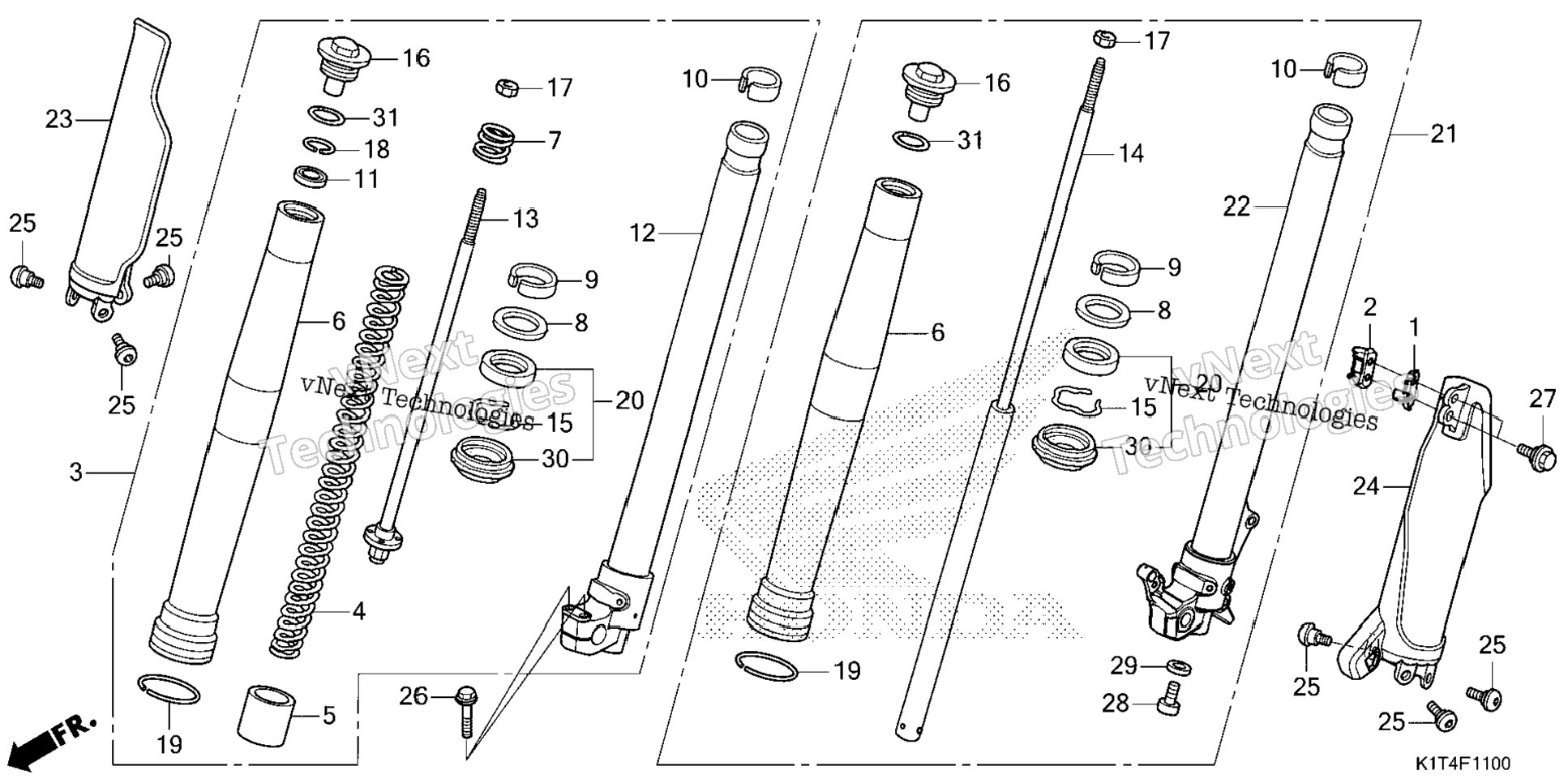

| 1 | 45461-KZZ-J00 | CLAMP A, BRAKE HOSE | 1 шт. | — | |
|
| 2 | 45462-KZZ-J00 | CLAMP B, BRAKE HOSE | 1 шт. | — | |
|
| 3 | 51400-K1T-E51 | FORK ASSY., R. FR. (SHOWA) | 1 шт. | — | |
|
| 4 | 51401-K1T-E51 | SPRING, FR. FORK | 1 шт. | — | |
|
| 5 | 51402-KZZ-J01 | COLLAR, SPRING | 1 шт. | — | |
|
| 6 | 51410-K1T-E11 | TUBE (OUTER) | 2 шт. | — | |
|
| 7 | 51412-K1T-E11 | SPRING B, REBOUND | 1 шт. | — | |
|
| 8 | 51412-KA4-711 | RING, BACK-UP | 2 шт. | — | |
|
| 9 | 51414-MFN-D01 | BUSH, GUIDE | 2 шт. | — | |
|
| 10 | 51415-MGP-D01 | BUSH, SLIDER | 2 шт. | — | |
|
| 11 | 51419-KZZ-901 | SEAT, STOPPER | 1 шт. | — | |
|
| 12 | 51425-K1T-E11 | PIPE, R. SLIDE | 1 шт. | — | |
|
| 13 | 51426-K1T-E11 | ROD | 1 шт. | — | |
|
| 14 | 51430-K1T-E11 | DAMPER, FR. | 1 шт. | — | |
|
| 15 | 51447-KA4-711 | RING, OIL SEAL STOPPER (SHOWA) | 2 шт. | — | |
|
| 16 | 51450-KZZ-901 | BOLT, FR. FORK | 2 шт. | — | |
|
| 17 | 51451-MAJ-G41 | NUT, HEX. (10MM) | 2 шт. | — | |
|
| 18 | 51456-KZZ-901 | RING, STOPPER | 1 шт. | — | |
|
| 19 | 51476-MFB-003 | RING, WEAR | 2 шт. | — | |
|
| 20 | 51490-KZZ-J01 | SEAL SET, FR. FORK | 2 шт. | — | |
|
| 21 | 51500-K1T-T01 | FORK ASSY., L. FR. (SHOWA) | 1 шт. | — | |
|
| 22 | 51525-K1T-T01 | PIPE, L. SLIDE | 1 шт. | — | |
|
| 23 | 51610-KZZ-D20ZC | PROTECTOR, R. FR. FORK (TYPE3) | 1 шт. | — | |
|
| 24 | 51620-KZZ-D20ZC | PROTECTOR, L. FR. FORK (TYPE3) | 1 шт. | — | |
|
| 25 | 90106-KZZ-900 | BOLT, PROTECTOR (6MM) | 6 шт. | — | |
|
| 26 | 90107-MGE-000 | BOLT, FLANGE (8X40) | 2 шт. | — | |
|
| 27 | 90113-KZZ-900 | BOLT, FLANGE (6MM) | 2 шт. | — | |
|
| 28 | 90116-KV3-701 | BOLT, SOCKET (8MM) (SHOWA) | 1 шт. | — | |
|
| 29 | 90544-283-000 | WASHER, SPECIAL (8MM) (SHOWA) | 1 шт. | — | |
|
| 30 | 91254-ML3-791 | DUST SEAL | 2 шт. | — | |
|
| 31 | 91356-KZ3-003 | O-RING (44.7X2.4) | 2 шт. | — | |
|
