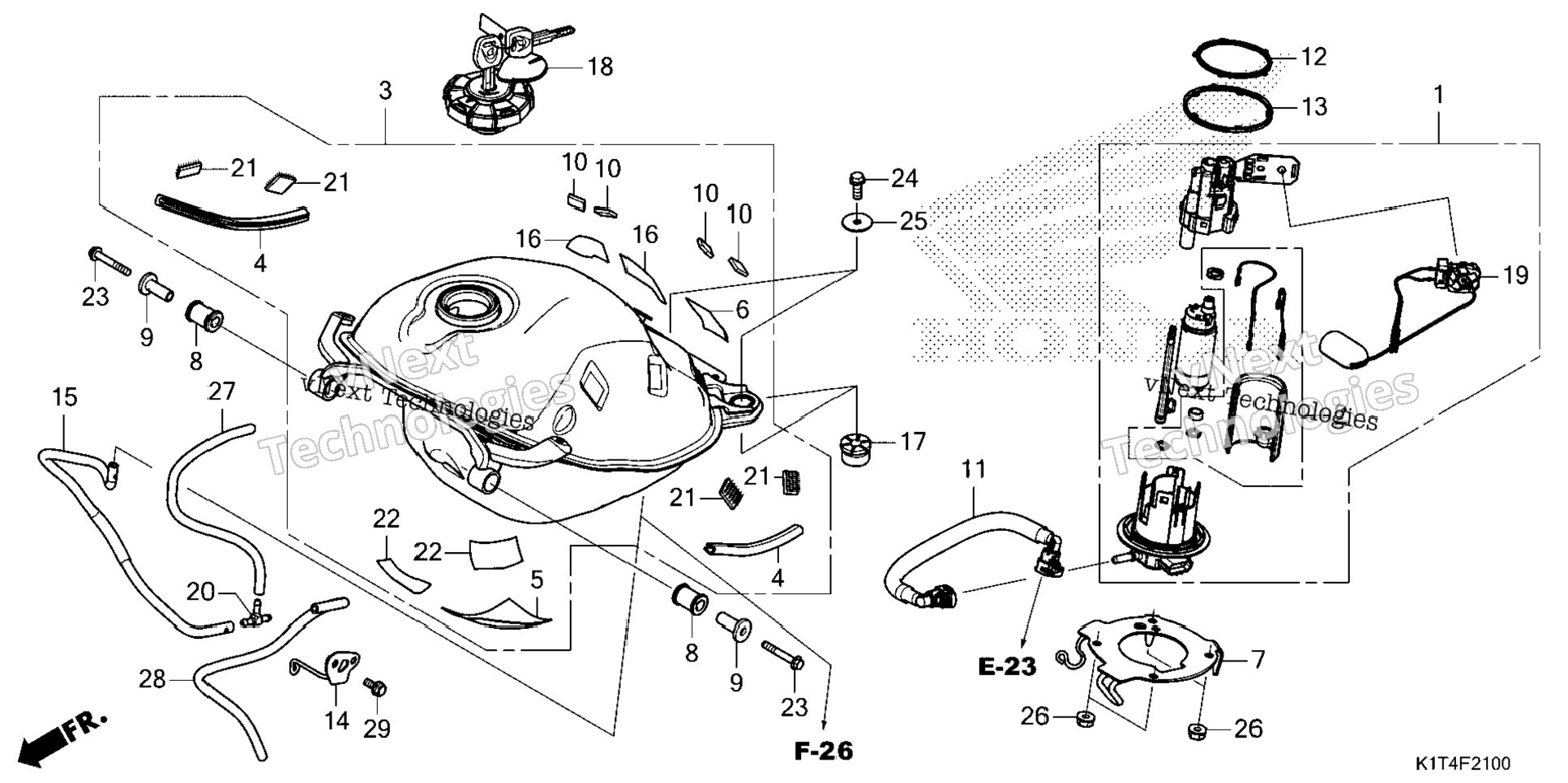

| 1 | 16700-K1T-E51 | PUMP ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 2 | 16707-K45-N01 | FILTER SET | 1 шт. | — | |
|
| 3 | 17500-K1T-E50ZA | TANK ASSY., FUEL *NH105* (MAT BLACK) | 1 шт. | — | |
|
| 4 | 17516-KZZ-900 | TRIM A, FUEL TANK | 2 шт. | — | |
|
| 5 | 17519-K1B-T00 | FILM, TANK PROTECTOR | 1 шт. | — | |
|
| 6 | 17519-K35-V00 | FILM, TANK PROTECTOR | 1 шт. | — | |
|
| 7 | 17527-K1T-E10 | PLATE, SETTING | 1 шт. | — | |
|
| 8 | 17534-MFJ-D00 | RUBBER, RR. TANK MOUNTING (FRONT SIDE) | 2 шт. | — | |
|
| 9 | 17538-KZZ-900 | COLLAR | 2 шт. | — | |
|
| 10 | 17546-K1T-E50 | RUBBER, TANK | 4 шт. | — | |
|
| 11 | 17570-K1T-E11 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 12 | 17572-GHB-613 | GASKET, FUEL PUMP | 1 шт. | — | |
|
| 13 | 17573-KPN-A71 | DUST SEAL | 1 шт. | — | |
|
| 14 | 17583-K1T-E10 | FILM, TANK PROTECTOR | 2 шт. | — | |
|
| 15 | 17613-K1T-E10 | CUSHION, FUEL TANK | 2 шт. | — | |
|
| 16 | 17620-K1T-E51 | CAP, FUEL FILLER (HONDALOCK) | 1 шт. | — | |
|
| 17 | 37800-K1T-E51 | FUEL UNIT | 1 шт. | — | |
|
| 18 | 64243-MEW-920 | FASTENER B, DUAL LOCK (20X20) | 4 шт. | — | |
|
| 19 | 84114-MFP-C80 | FILM, PROTECTOR | 2 шт. | — | |
|
| 20 | 90004-GHB-710 | BOLT, FLANGE (6X40) (NSHF) | 2 шт. | — | |
|
| 21 | 90013-GHB-620 | BOLT, FLANGE (6X14) | 2 шт. | — | |
|
| 22 | 90521-K1T-E10 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 23 | 94050-06080 | NUT, FLANGE (6MM) | 4 шт. | — | |
|
