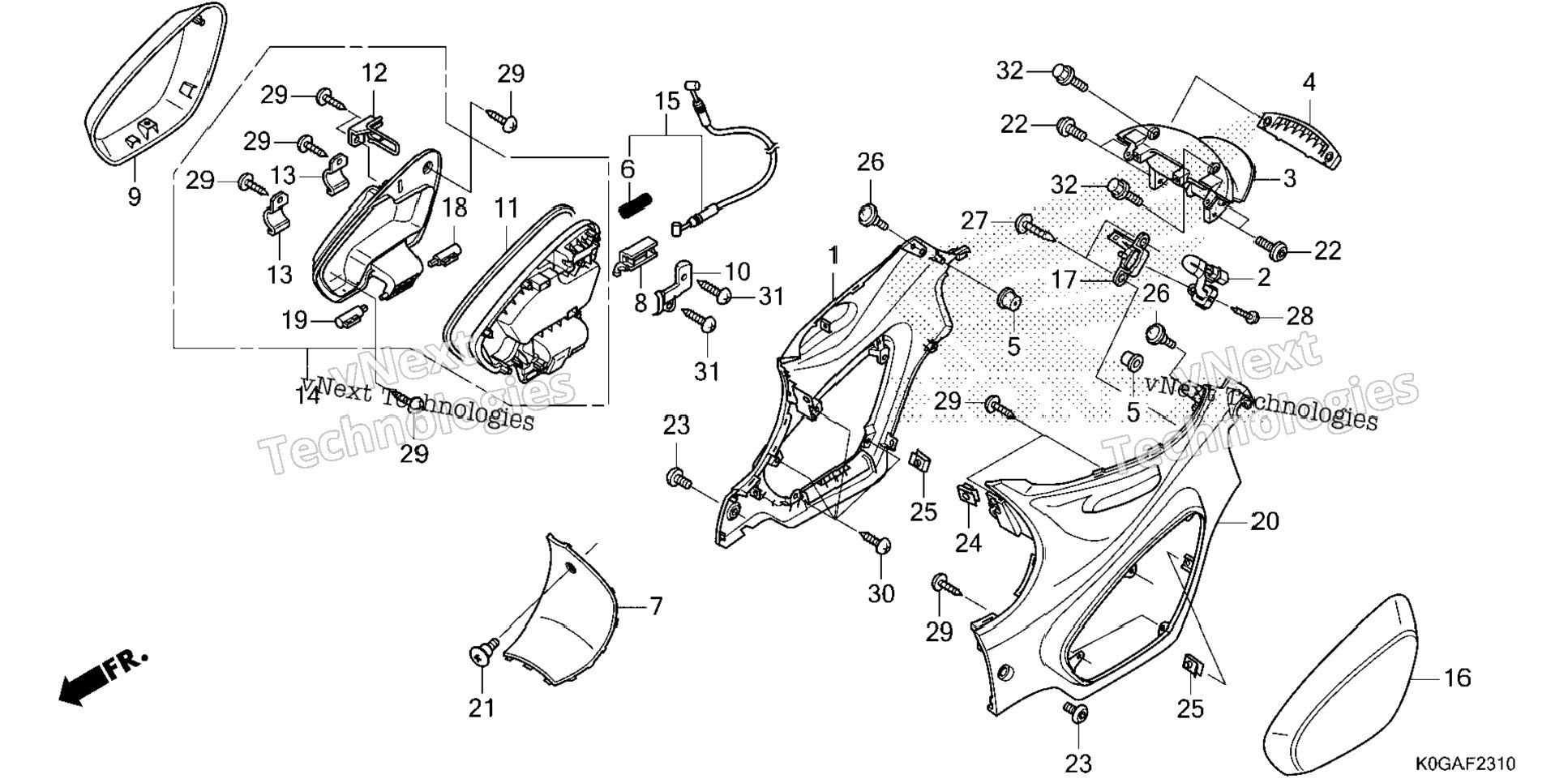

| 1 | 04801-K0G-900ZB | COVER, R. BODY *PB415P* (WL) (PEARL NILTAVA BLUE) | 1 шт. | — | |
|
| 2 | 04801-K0G-900ZC | COVER, R. *NHB95P* | 1 шт. | — | |
|
| 3 | 35380-K0G-901 | SWITCH ASSY., SEAT OPENER | 1 шт. | — | |
|
| 4 | 50410-K0G-900ZB | GRIP, MAIN STAND *PB415P* (PEARL NILTAVA BLUE) | 1 шт. | — | |
|
| 5 | 50410-K0G-900ZD | GRIP *NHB95P* | 1 шт. | — | |
|
| 6 | 50420-K0G-900ZB | GRIP, MAIN STAND (LOWER) *PB415P* (PEARL NILTAVA BLUE) | 1 шт. | — | |
|
| 7 | 50420-K0G-900ZD | GRIP *NHB95P* | 1 шт. | — | |
|
| 8 | 61312-149-300 | BOOT, HEADLIGHT BRACKET | 2 шт. | — | |
|
| 9 | 77237-KZR-700 | SPRING, CABLE RETURN | 1 шт. | — | |
|
| 10 | 80151-K0G-900ZB | COVER, CENTER *PB415P* (PEARL NILTAVA BLUE) | 1 шт. | — | |
|
| 11 | 80151-K0G-900ZD | CVR, CENTER *NHB95P* | 1 шт. | — | |
|
| 12 | 80181-K0G-900 | SLIDER, LID HINGE | 1 шт. | — | |
|
| 13 | 83404-K0G-900ZA | COVER, R. SIDE *PB414P* (PEARL RETRO BLUE) | 1 шт. | — | |
|
| 14 | 83404-K0G-900ZB | COVER, R. SIDE *NHC13P* (PEARL SUGARCANE BEIGE) | 1 шт. | — | |
|
| 15 | 83408-K0G-900 | COVER, SLIDER | 1 шт. | — | |
|
| 16 | 83409-K0G-900 | RUBBER, SEAL | 1 шт. | — | |
|
| 17 | 83410-K0G-900 | BAR, SIDE COVER | 1 шт. | — | |
|
| 18 | 83411-K0G-900 | CLAMP, LID HINGE | 2 шт. | — | |
|
| 19 | 83420-K0G-900 | LID ASSY., R. SIDE | 1 шт. | — | |
|
| 20 | 83460-K0G-901 | CABLE, SIDE COVER | 1 шт. | — | |
|
| 21 | 83504-K0G-900ZA | COVER, L. SIDE *PB414P* (PEARL RETRO BLUE) | 1 шт. | — | |
|
| 22 | 83504-K0G-900ZB | COVER, L. SIDE *NHC13P* (PEARL SUGARCANE BEIGE) | 1 шт. | — | |
|
| 23 | 83506-K0G-900 | STAY, SEAT OPENER | 1 шт. | — | |
|
| 24 | 83534-K04-931 | DAMPER, L. LID | 1 шт. | — | |
|
| 25 | 83534-K35-V01 | DAMPER, R. LID | 1 шт. | — | |
|
| 26 | 83650-K0G-T20ZB | CVR, L. *PB415P* | 1 шт. | — | |
|
| 27 | 83650-K0G-T20ZE | CVR, L. *NHB95P* | 1 шт. | — | |
|
| 28 | 90103-K88-L20 | SCREW, SIDE COVER | 1 шт. | — | |
|
| 29 | 90105-K0G-900 | BOLT, SOCKET SPECIAL (6X14) | 4 шт. | — | |
|
| 30 | 90132-KPP-T00 | SCREW, PAN (6X10) | 2 шт. | — | |
|
| 31 | 90305-GK8-000 | NUT, CLIP (6MM) | 1 шт. | — | |
|
| 32 | 90677-KAN-T00 | NUT, CLIP (5MM) | 2 шт. | — | |
|
| 33 | 91509-GE2-760 | SCREW, PAN (5X11.5) | 2 шт. | — | |
|
| 34 | 93903-25310 | SCREW, TAPPING (5X16) | 2 шт. | — | |
|
| 35 | 93903-32210 | SCREW, TAPPING (3X10) | 1 шт. | — | |
|
| 36 | 93903-34380 | SCREW, TAPPING (4X12) | 10 шт. | — | |
|
| 37 | 93903-35210 | SCREW, TAPPING (5X12) | 4 шт. | — | |
|
| 38 | 93903-35310 | SCREW, TAPPING (5X16) | 2 шт. | — | |
|
| 39 | 96001-06016-02 | BOLT, FLANGE (6X16) | 2 шт. | — | |
|
