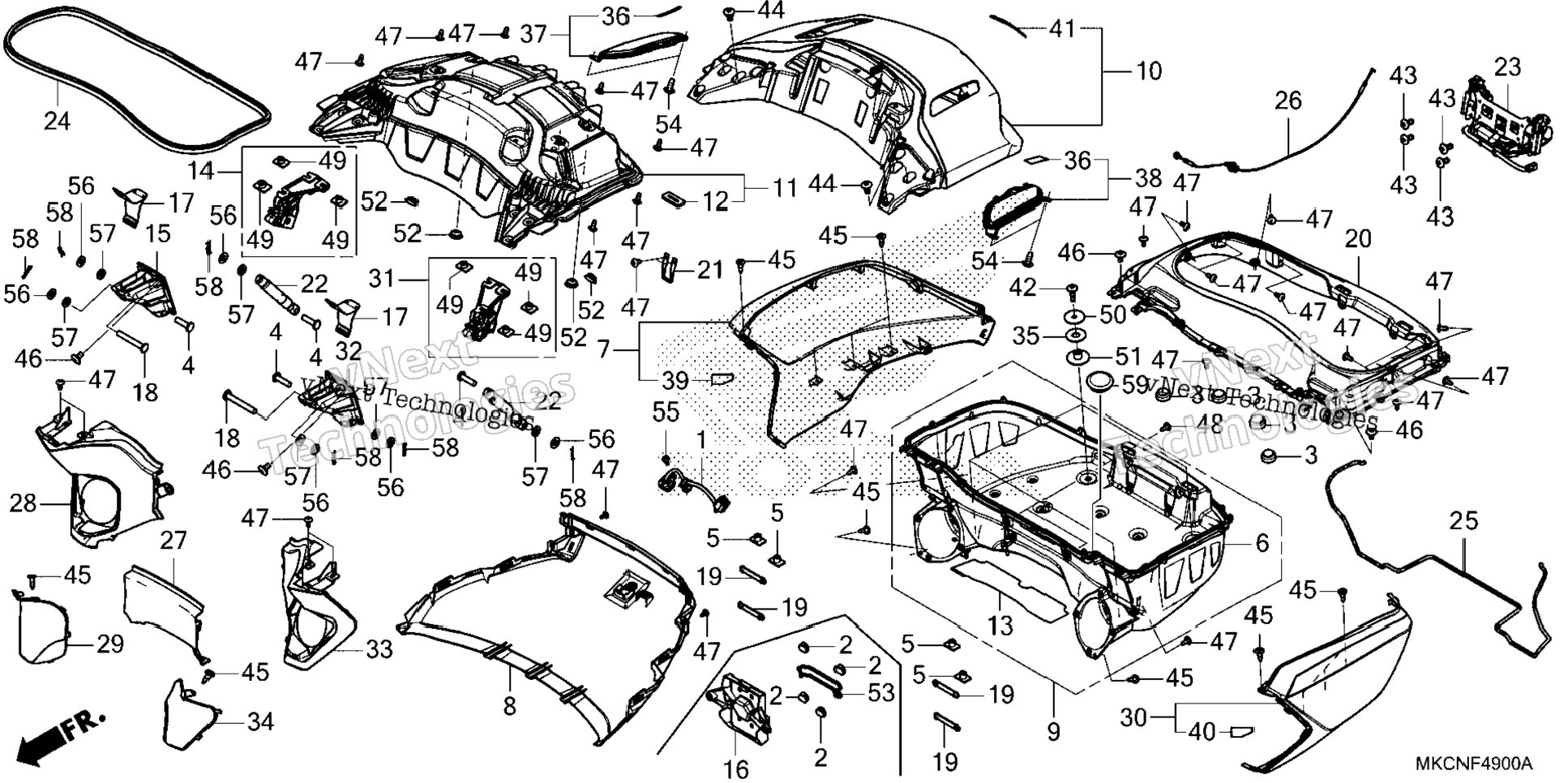

| 1 | 35390-MKC-A01 | SWITCH ASSY., TRUNK OPENER | 1 шт. | — | |
|
| 2 | 77110-KA3-730 | RUBBER, SEAT MOUNTING | 4 шт. | — | |
|
| 3 | 77156-GZ4-670 | PIN, SEAT HOOK | 4 шт. | — | |
|
| 4 | 80104-KJ2-000 | NUT, RR. FENDER | 4 шт. | — | |
|
| 5 | 81111-MKC-L00 | BOX, TRUNK (LOWER) (INNER) | 1 шт. | — | |
|
| 6 | 81111-MKC-L80 | BOX LOWER, TRUNK | 1 шт. | — | |
|
| 7 | 81113-MKC-LD0ZA | COVER ASSY. (TYPE1) | 1 шт. | — | |
|
| 8 | 81115-MKC-LD0ZA | SET ILLUS (TYPE1) | 1 шт. | — | |
|
| 9 | 81120-MKC-LD0ZA | SET ILLUS *2TN0040* | 1 шт. | — | |
|
| 10 | 81126-MKC-L00 | INNER LID, TRUNK | 1 шт. | — | |
|
| 11 | 81127-MKC-A00 | MAT, LID (INNER) | 2 шт. | — | |
|
| 12 | 81131-MKC-A00 | HINGE A, R. TRUNK | 1 шт. | — | |
|
| 13 | 81132-MKC-A00 | HINGE B, R. TRUNK | 1 шт. | — | |
|
| 14 | 81134-MKC-A00 | RUBBER, HINGE | 2 шт. | — | |
|
| 15 | 81136-MKC-A00 | PIN A, TRUNK HINGE | 2 шт. | — | |
|
| 16 | 81140-MKC-A00 | PLATE, TRUNK HINGE | 4 шт. | — | |
|
| 17 | 81150-MKC-L00 | BOX, TRUNK (UPPER) (INNER) | 1 шт. | — | |
|
| 18 | 81151-MKC-A00 | ROD, TRUNK STRIKER | 2 шт. | — | |
|
| 19 | 81155-MKC-L01 | DAMPER, TRUNK LID | 2 шт. | — | |
|
| 20 | 81160-MKC-A01 | CATCH, TRUNK | 1 шт. | — | |
|
| 21 | 81181-MKC-L00 | RUBBER, TRUNK LID SEAL | 1 шт. | — | |
|
| 22 | 81182-MKC-L00 | RUBBER, TRUNK BOX SEAL (INNER) | 1 шт. | — | |
|
| 23 | 81184-MKC-L01 | CABLE, TRUNK EMERGENCY | 1 шт. | — | |
|
| 24 | 81191-MKC-L00ZA | PANEL, FR. TRUNK (LOWER) *NH1* (BLACK) | 1 шт. | — | |
|
| 25 | 81193-MKC-L00ZA | COVER, R. FR. TRUNK *NH1* (BLACK) | 1 шт. | — | |
|
| 26 | 81194-MKC-L00ZA | COVER, R. RR. SPEAKER *NH1* (BLACK) | 1 шт. | — | |
|
| 27 | 81213-MKC-LD0ZA | COVER ASSY. (TYPE1) | 1 шт. | — | |
|
| 28 | 81231-MKC-A00 | HINGE A, L. TRUNK | 1 шт. | — | |
|
| 29 | 81232-MKC-A00 | HINGE B, L. TRUNK | 1 шт. | — | |
|
| 30 | 81293-MKC-L00ZA | COVER, L. FR. TRUNK *NH1* (BLACK) | 1 шт. | — | |
|
| 31 | 81294-MKC-L00ZA | COVER, L. RR. SPEAKER *NH1* (BLACK) | 1 шт. | — | |
|
| 32 | 81356-MKC-A00 | RUBBER, TRUNK MOUNTING | 4 шт. | — | |
|
| 33 | 81552-MKC-L00 | SEAL, LID COVER | 2 шт. | — | |
|
| 34 | 81650-MKC-LD0ZA | COVER COMP (TYPE1) | 1 шт. | — | |
|
| 35 | 81655-MKC-LD0ZA | COVER COMP (TYPE1) | 1 шт. | — | |
|
| 36 | 81991-MKC-L00 | TAPE, R. PROTECTION | 1 шт. | — | |
|
| 37 | 81992-MKC-L00 | TAPE, L. PROTECTION | 1 шт. | — | |
|
| 38 | 86102-MKC-L00 | EMBLEM, HONDA (100MM) | 1 шт. | — | |
|
| 39 | 90085-MAJ-A20 | BOLT, SPECIAL (6X22) | 4 шт. | — | |
|
| 40 | 90112-MJK-N20 | SCREW (5X12) | 4 шт. | — | |
|
| 41 | 90114-MCJ-000 | SCREW, SPECIAL (6X14) | 6 шт. | — | |
|
| 42 | 90116-SP0-003 | CLIP, BUMPER SEAL | 12 шт. | — | |
|
| 43 | 90119-MEW-920 | SCREW, PAN (6X11) | 12 шт. | — | |
|
| 44 | 90121-MJK-N20 | SCREW, TAPPING (5X12) | 44 шт. | — | |
|
| 45 | 90121-MJK-N20 | SCREW, TAPPING (5X12) | 2 шт. | — | |
|
| 46 | 90303-HA0-680 | NUT, SPECIAL (6X7) | 6 шт. | — | |
|
| 47 | 90506-MKC-A00 | WASHER, TRUNK SET | 4 шт. | — | |
|
| 48 | 90508-MKC-A00 | COLLAR, RR. TRUNK | 4 шт. | — | |
|
| 49 | 90852-KPP-T00 | PLUG, HOLE | 6 шт. | — | |
|
| 50 | 93903-24280 | SCREW, TAPPING (4X10) | 4 шт. | — | |
|
| 51 | 93903-32180 | SCREW, TAPPING (3X8) | 1 шт. | — | |
|
| 52 | 94101-06000 | WASHER, PLAIN (6MM) | 6 шт. | — | |
|
| 53 | 94101-06080 | WASHER, PLAIN (6MM) | 6 шт. | — | |
|
| 54 | 94101-06800 | WASHER, PLAIN (6MM) (USED ON TAILLIGHT) | 6 шт. | — | |
|
| 55 | 94111-06800 | WASHER, SPRING (6MM) | 6 шт. | — | |
|
| 56 | 94251-06000 | PIN, LOCK (6MM) | 6 шт. | — | |
|
| 57 | 82871-671-000 | GROMMET, DRAIN HOLE (25MM) | 1 шт. | — | |
|
