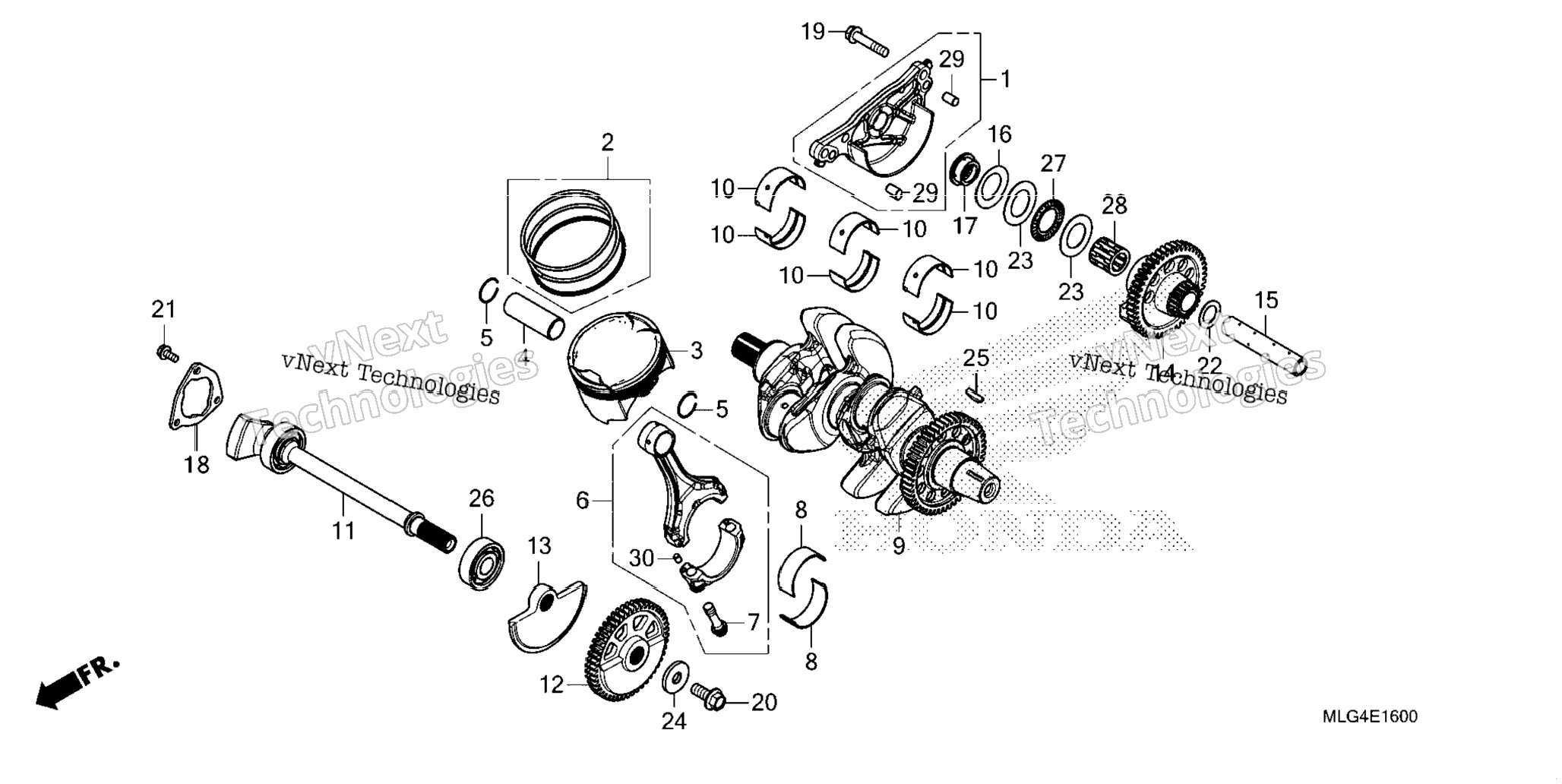

| 1 | 11230-MJP-G50 | HOLDER, RR. BALANCER SHAFT | 1 шт. | — | |
|
| 2 | 13011-MKS-E00 | RING SET, PISTON (STD) | 2 шт. | — | |
|
| 3 | 13101-MKS-E00 | PISTON | 2 шт. | — | |
|
| 4 | 13111-MKS-E00 | PIN, PISTON | 2 шт. | — | |
|
| 5 | 13112-MC7-000 | CLIP, PISTON PIN (22MM) (Honda Code 1206705) | 4 шт. | — | |
|
| 6 | 13210-MKS-E00 | ROD ASSY., CONNECTING | 2 шт. | — | |
|
| 7 | 13213-MJP-G51 | BOLT, CONNECTING ROD | 4 шт. | — | |
|
| 8 | 13214-MJP-G51 | BEARING A, CONNECTING ROD (BLUE) | 4 шт. | — | |
|
| 8 | 13215-MJP-G51 | BEARING B, CONNECTING ROD (BLACK) | 4 шт. | — | |
|
| 8 | 13216-MJP-G51 | BEARING C, CONNECTING ROD (BROWN) | 4 шт. | — | |
|
| 8 | 13217-MJP-G51 | BEARING D, CONNECTING ROD (GREEN) | 4 шт. | — | |
|
| 8 | 13218-MJP-G51 | BEARING E, CONNECTING ROD (YELLOW) | 4 шт. | — | |
|
| 9 | 13300-MKS-E50 | CRANKSHAFT | 1 шт. | — | |
|
| 10 | 13312-MKS-E01 | BEARING A, CRANKSHAFT (BLUE) | 6 шт. | — | |
|
| 10 | 13313-MKS-E01 | BEARING B, CRANKSHAFT (BLACK) | 6 шт. | — | |
|
| 10 | 13314-MKS-E01 | BEARING C, CRANKSHAFT (BROWN) | 6 шт. | — | |
|
| 10 | 13315-MKS-E01 | BEARING D, CRANKSHAFT (GREEN) | 6 шт. | — | |
|
| 10 | 13316-MKS-E01 | BEARING E, CRANKSHAFT (YELLOW) | 6 шт. | — | |
|
| 11 | 13420-MKS-E00 | SHAFT, FR. BALANCER | 1 шт. | — | |
|
| 11 | 13420-MLN-E00 | SHAFT, FR. BALANCER | 1 шт. | — | |
|
| 12 | 13431-MKS-E00 | GEAR, FR. BALANCER DRIVEN (56T) | 1 шт. | — | |
|
| 13 | 13433-MKS-E00 | WEIGHT, L. FR. BALANCER | 1 шт. | — | |
|
| 14 | 13440-MKS-E00 | GEAR, RR. BALANCER DRIVEN (46T) | 1 шт. | — | |
|
| 15 | 13445-MJP-G50 | SHAFT, RR. BALANCER | 1 шт. | — | |
|
| 16 | 13446-MKS-E00 | SPRING, RR. BALANCER THRUST | 1 шт. | — | |
|
| 17 | 13447-MJP-G50 | COLLAR, RR. BALANCER | 1 шт. | — | |
|
| 18 | 13481-MJP-G50 | PLATE, BALANCER BEARING SETTING | 1 шт. | — | |
|
| 19 | 90003-MCS-000 | BOLT, FLANGE (8X40) | 3 шт. | — | |
|
| 20 | 90013-MJP-G50 | BOLT, SPECIAL (10X25) | 1 шт. | — | |
|
| 21 | 90030-GHB-630 | BOLT, FLANGE (6X14) | 3 шт. | — | |
|
| 22 | 90402-MKS-E00 | WASHER (18X27.5X1.0) | 1 шт. | — | |
|
| 23 | 90404-MJP-G50 | WASHER (25X42X1.0) | 2 шт. | — | |
|
| 24 | 90405-MFA-D00 | WASHER (10.5X31.8) | 1 шт. | — | |
|
| 25 | 90701-KAS-900 | KEY, SPECIAL WOODRUFF (25X18) | 1 шт. | — | |
|
| 26 | 91002-MJP-G53 | BEARING, RADIAL BALL (17X47X14) | 1 шт. | — | |
|
| 27 | 91005-MJP-G51 | BEARING, THRUST NEEDLE (25X42X2) | 1 шт. | — | |
|
| 28 | 91015-MJP-G51 | BEARING B, NEEDLE (18X27X26.8) (BLUE) | 1 шт. | — | |
|
| 28 | 91016-MJP-G51 | BEARING C, NEEDLE (18X27X26.8) (WHITE) | 1 шт. | — | |
|
| 28 | 91017-MJP-G51 | BEARING D, NEEDLE (18X27X26.8) (GREEN) | 1 шт. | — | |
|
| 29 | 94302-08140 | PIN B, DOWEL (8X14) | 2 шт. | — | |
|
| 30 | 94303-04065 | PIN C, DOWEL (4X6.5) | 4 шт. | — | |
|
