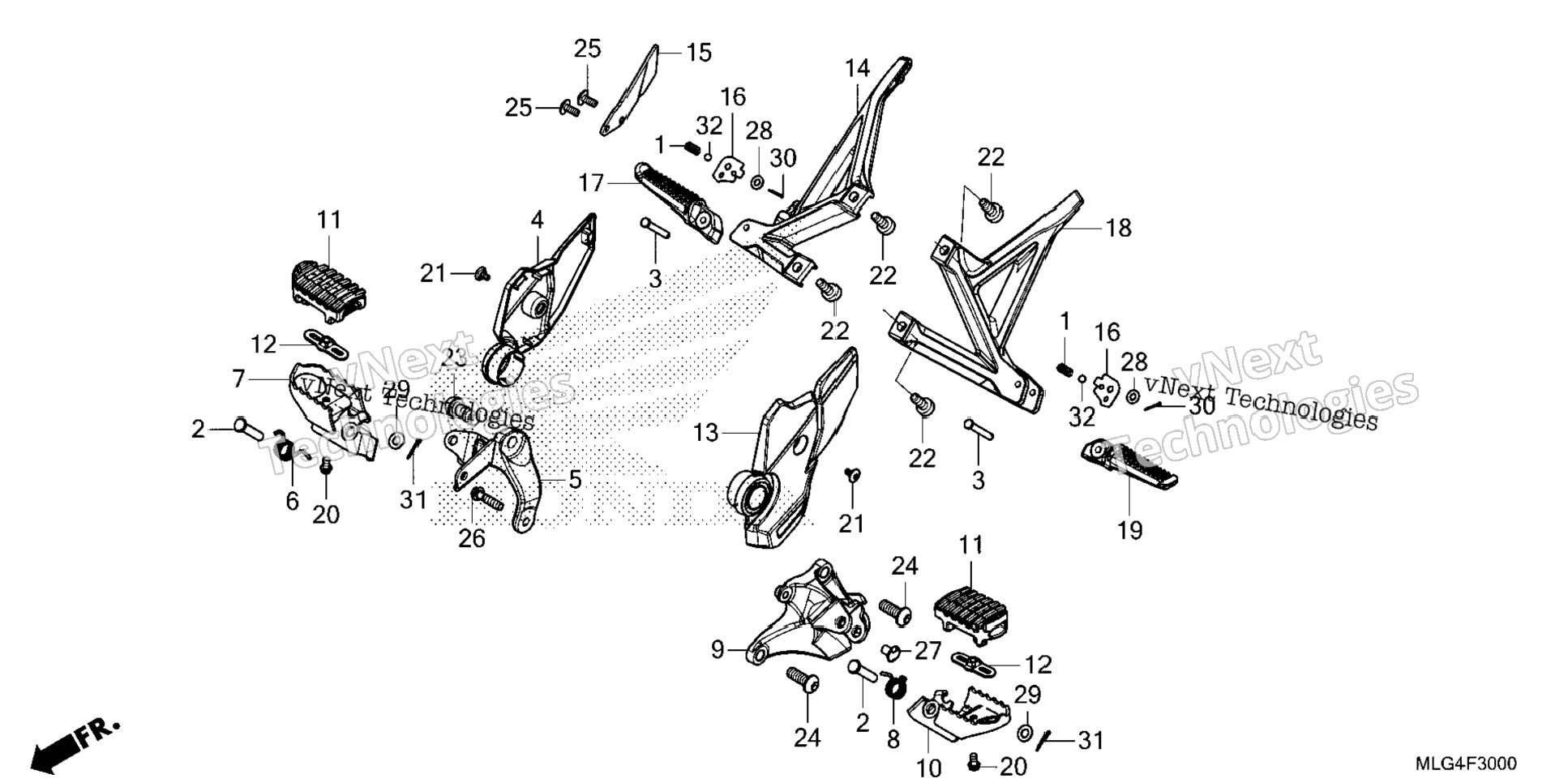

| 1 | 28333-300-000 | SPRING, KICK STARTER STOPPER | 2 шт. | — | |
|
| 2 | 50603-KA3-710 | PIN, STEP JOINT | 2 шт. | — | |
|
| 3 | 50603-KL4-000 | PIN, STEP BAR JOIN | 2 шт. | — | |
|
| 4 | 50603-MFJ-D00 | PIN, STEP JOINT | 2 шт. | — | |
|
| 5 | 50607-MKS-E00ZA | GUARD, R. HEEL *NH212R* (GRACEFUL GRAY) | 1 шт. | — | |
|
| 6 | 50615-MKS-E00ZA | BRACKET, R. STEP *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 7 | 50617-KZ4-J40 | SPRING, R. STEP RETURN | 1 шт. | — | |
|
| 8 | 50617-MKK-D00 | STEP, R. | 1 шт. | — | |
|
| 9 | 50618-KZ4-J40 | SPRING, L. STEP RETURN | 1 шт. | — | |
|
| 10 | 50625-MKS-E00ZA | BRACKET, L. STEP *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 11 | 50627-MKK-D00 | STEP, L. | 1 шт. | — | |
|
| 12 | 50661-MKK-D00 | RUBBER, MAIN STEP | 2 шт. | — | |
|
| 13 | 50662-MKK-D00 | PLATE, STEP RUBBER SETTING | 2 шт. | — | |
|
| 14 | 50707-MKS-E00ZA | GUARD, L. HEEL *NH212R* (GRACEFUL GRAY) | 1 шт. | — | |
|
| 15 | 50715-MKS-E00ZA | HOLDER, R. PILLION STEP *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 16 | 50716-MKS-E00 | GUARD, PILLION HEEL | 1 шт. | — | |
|
| 17 | 50718-KT7-761 | PLATE, PILLION STEP CLICK | 2 шт. | — | |
|
| 18 | 50720-KT7-761 | BAR, R. PILLION STEP BAR, R. PILLION STEP (COO) | 1 шт. | — | |
|
| 19 | 50720-K26-305 | BAR, R. PILLION STEP (COO) | 1 шт. | — | |
|
| 20 | 50725-MKS-E00ZA | HOLDER, L. PILLION STEP *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 21 | 50730-KT7-761 | BAR, L. PILLION STEP | 1 шт. | — | |
|
| 22 | 50730-K26-305 | BAR, L. PILLION STEP (COO) | 1 шт. | — | |
|
| 23 | 90102-MW3-600 | BOLT, FLANGE (6X10) | 2 шт. | — | |
|
| 24 | 90106-MBY-000 | SCREW, SPECIAL (5X12) | 2 шт. | — | |
|
| 25 | 90109-MKE-A00 | BOLT, FLANGE (8X25) (SH) | 4 шт. | — | |
|
| 26 | 90112-MKS-E00 | BOLT, SOCKET (12X28) | 1 шт. | — | |
|
| 27 | 90118-MJN-A00 | BOLT, SOCKET (10X28) | 2 шт. | — | |
|
| 28 | 90118-MR1-000 | SCREW, PAN (6X14) | 2 шт. | — | |
|
| 29 | 90124-MKS-E00 | BOLT, FLANGE (8X32) | 1 шт. | — | |
|
| 30 | 90656-MGH-641 | CLIP, BRUSH | 1 шт. | — | |
|
| 31 | 94101-06000 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 32 | 94101-06080 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 33 | 94101-06800 | WASHER, PLAIN (6MM) (USED ON TAILLIGHT) | 2 шт. | — | |
|
| 34 | 94102-10000 | WASHER, PLAIN (10MM) | 2 шт. | — | |
|
| 35 | 94201-16120 | PIN, COTTER (1.6X12) | 2 шт. | — | |
|
| 36 | 94201-20180 | PIN, COTTER (2.0X18) PIN, COTTER (2.0X20) | 2 шт. | — | |
|
| 37 | 94201-20200 | PIN, COTTER (2.0X20) PIN, COTTER (2.0X22) | 2 шт. | — | |
|
| 38 | 94201-20220 | PIN, COTTER (2.0X22) PIN, COTTER (2.0X25) | 2 шт. | — | |
|
| 39 | 94201-20250 | PIN, COTTER (2.0X25) PIN, COTTER (2X28) | 2 шт. | — | |
|
| 40 | 94201-20280 | PIN, SPLIT (2.0X28) PIN, COTTER (2.0X32) | 2 шт. | — | |
|
| 41 | 94201-20320 | PIN, COTTER (2.0X32) PIN, COTTER (2.0X35) | 2 шт. | — | |
|
| 42 | 94201-20350 | PIN, COTTER (2.0X35) PIN, COTTER (2.0X22) | 2 шт. | — | |
|
| 43 | 94201-29220 | PIN, COTTER (2.0X22) | 2 шт. | — | |
|
| 44 | 96211-08000 | BALL, STEEL (#8) (1/4) | 2 шт. | — | |
|
