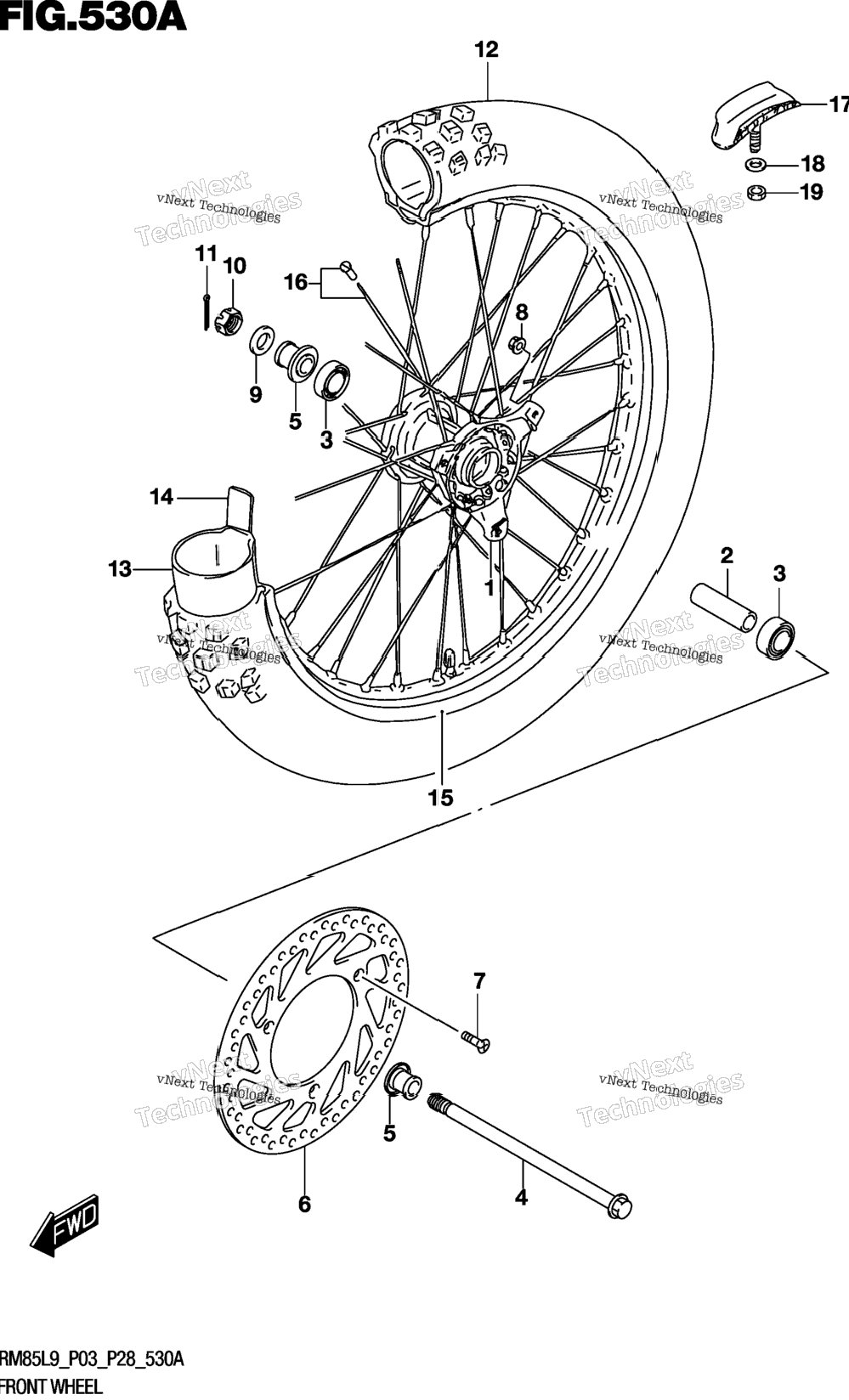

| 1 | 54111-02B42 | HUB, FRONT WHEEL | 1 шт. | — | |
|
| 2 | 54731-02B40 | SPACER, FRONT HUB BEARING | 1 шт. | — | |
|
| 3 | 08133-62017 | BEARING | 2 шт. | — | |
|
| 4 | 54711-03B00 | AXLE,FRONT | 1 шт. | — | |
|
| 5 | 54740-02B40 | SPACER, FRONT AXLE | 2 шт. | — | |
|
| 6 | 59221-03B00 | DISC,FRONT BRAKE | 1 шт. | — | |
|
| 7 | 09126-06009 | SCREW (6X22) | 3 шт. | — | |
|
| 8 | 08319-3106A | NUT | 3 шт. | — | |
|
| 9 | 08211-12204 | WASHER | 1 шт. | — | |
|
| 10 | 08314-4012B | NUT | 1 шт. | — | |
|
| 11 | 04111-2020A | PIN | 1 шт. | — | |
|
| 12 | 55110-02B70 | TIRE,FR,70/100-17 (70/100-17 | 0 шт. | — | |
|
| 12 | 55110-02B70 | TIRE,FR,70/100-17 (70/100-17 | 0 шт. | — | |
|
| 13 | 55200-02B70 | TUBE ASSY,WHEEL INNER | 0 шт. | — | |
|
| 14 | 55261-02B40 | PROTECTOR,WHEEL INNER TUBE | 1 шт. | — | |
|
| 15 | 55311-02B10 | RIM,FR WHEEL (17X1.40) | 1 шт. | — | |
|
| 16 | 55320-02B10 | SPOKE SET,FRONT WHEEL | 1 шт. | — | |
|
| 17 | 65270-28600 | STOPPER, BEAD | 1 шт. | — | |
|
| 18 | 08322-0108B | WASHER | 1 шт. | — | |
|
| 19 | 08310-0008B | NUT | 1 шт. | — | |
|
