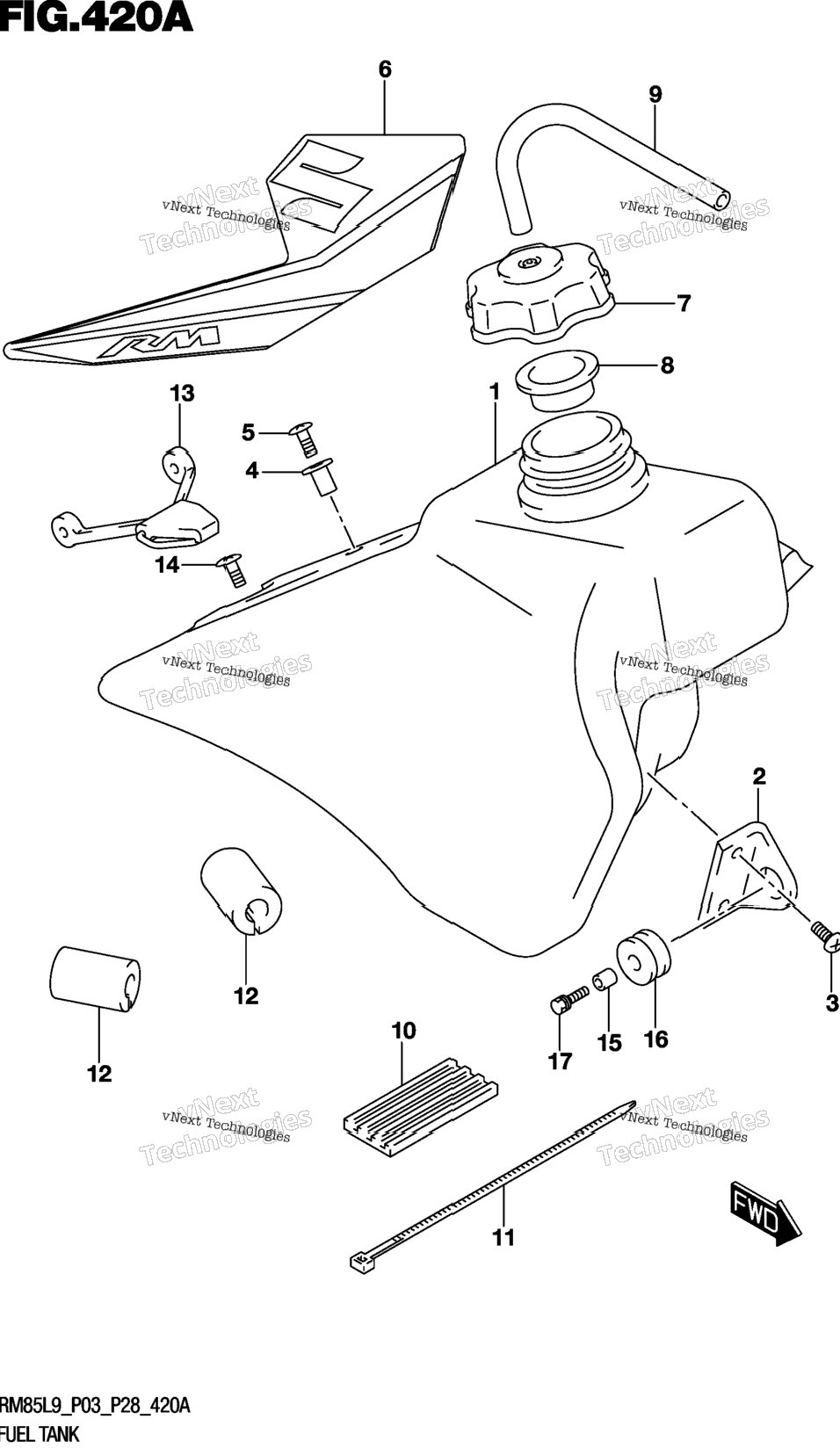

| 1 | 44110-03B10-YU1 | TANK,FUEL (YELLOW) | 1 шт. | — | |
|
| 2 | 44131-27C01 | .BRACKET,FUEL TANK FR | 2 шт. | — | |
|
| 3 | 02142-0612B | SCREW | 4 шт. | — | |
|
| 4 | 44132-27C01 | HOOK,SEAT FRONT | 1 шт. | — | |
|
| 5 | 02142-0620B | .SCREW | 1 шт. | — | |
|
| 6 | 68111-03B80-BTE | TAPE SET, FUEL TANK | 1 шт. | — | |
|
| 7 | 44210-37F00 | CAP,FUEL TANK FILLER | 1 шт. | — | |
|
| 8 | 44248-27C00 | GASKET | 1 шт. | — | |
|
| 9 | 09352-50823-600 | .HOSE (5X8.2X600) L:600->280 | 1 шт. | — | |
|
| 10 | 44541-14300 | CUSHION,UPPER FRONT | 2 шт. | — | |
|
| 11 | 09407-25402 | CLAMP (L:250) | 2 шт. | — | |
|
| 12 | 44542-17300 | CUSHION,UPPER REAR | 2 шт. | — | |
|
| 13 | 44560-26C00 | BAND,FUEL TANK,REAR | 1 шт. | — | |
|
| 14 | 09139-06134 | SCREW (6X13.5) | 1 шт. | — | |
|
| 15 | 09180-06268 | SPACER (6.5X9X13.5) | 2 шт. | — | |
|
| 16 | 14762-01B01 | CUSHION | 2 шт. | — | |
|
| 17 | 09116-06195 | BOLT (6X35) | 2 шт. | — | |
|
