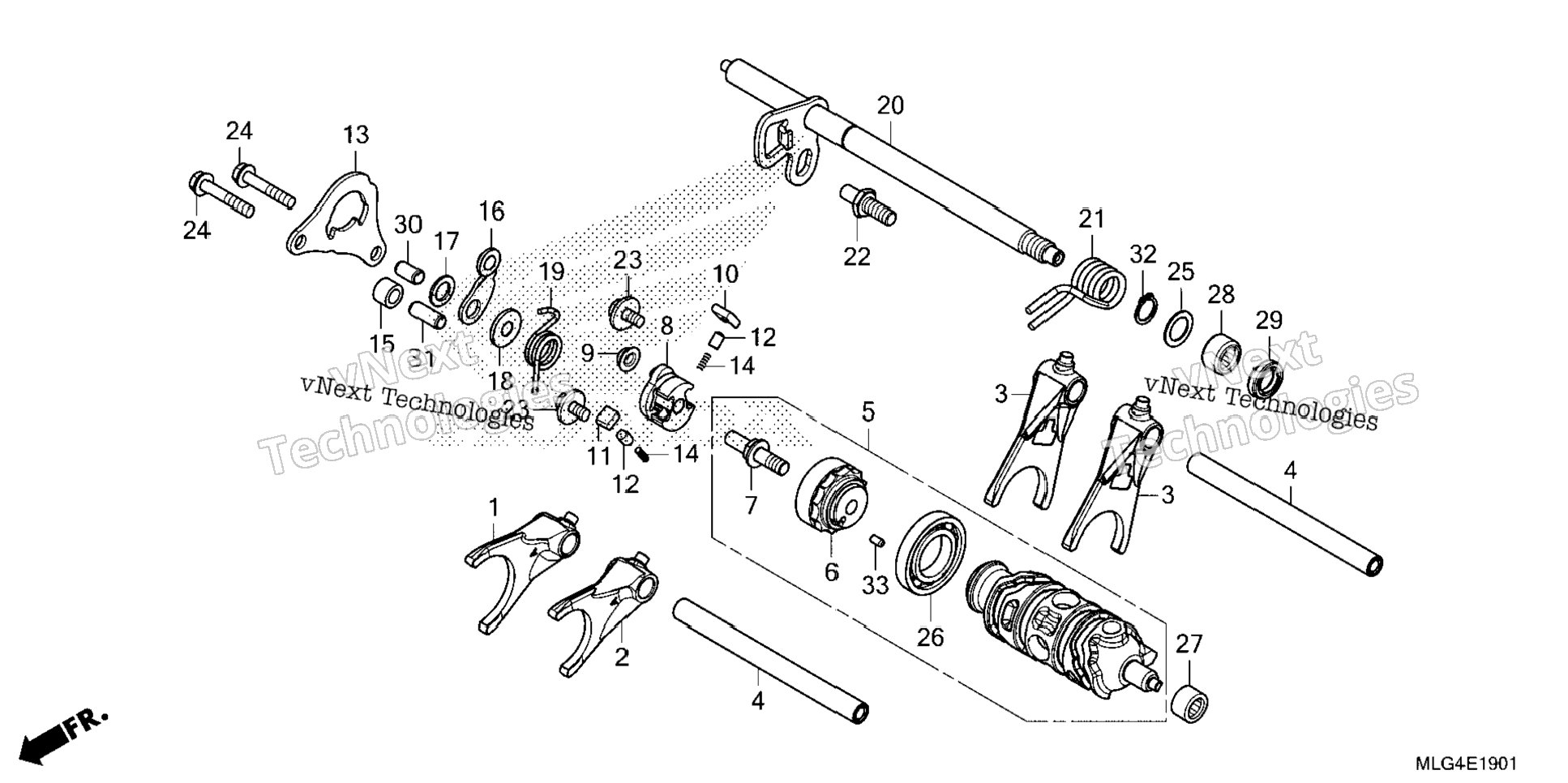

| 1 | 24211-MJP-G80 | FORK, R. GEARSHIFT | 1 шт. | — | |
|
| 2 | 24212-MJP-G80 | FORK, L. GEARSHIFT | 1 шт. | — | |
|
| 3 | 24213-HL4-000 | FORK, CENTER GEARSHIFT | 2 шт. | — | |
|
| 4 | 24213-MKS-E00 | SHAFT, GEARSHIFT FORK | 2 шт. | — | |
|
| 5 | 24310-MJP-G80 | DRUM, GEARSHIFT | 1 шт. | — | |
|
| 6 | 24312-MJP-G80 | CENTER, SHIFT DRUM | 1 шт. | — | |
|
| 7 | 24315-HL4-000 | PIN, SHIFTER | 1 шт. | — | |
|
| 8 | 24321-KT8-030 | SHIFTER, DRUM | 1 шт. | — | |
|
| 9 | 24322-MM4-000 | COLLAR, SHIFTER | 1 шт. | — | |
|
| 10 | 24324-KA3-711 | PAWL A, RATCHET | 1 шт. | — | |
|
| 11 | 24325-KA3-711 | PAWL B, RATCHET | 1 шт. | — | |
|
| 12 | 24326-KBH-901 | PLUNGER, PAWL | 2 шт. | — | |
|
| 13 | 24328-MJP-G80 | PLATE, CHANGE GUIDE | 1 шт. | — | |
|
| 14 | 24329-KA3-740 | SPRING, PAWL PLUNGER | 2 шт. | — | |
|
| 15 | 24329-MGS-D20 | COLLAR, GUIDE PLATE DISTANCE | 1 шт. | — | |
|
| 16 | 24430-HL4-000 | STOPPER, GEARSHIFT DRUM | 1 шт. | — | |
|
| 17 | 24433-MJP-G80 | WASHER, GEARSHIFT DRUM STOPPER | 1 шт. | — | |
|
| 18 | 24434-MJP-G80 | COLLAR, SHIFT DRUM STOPPER PLATE | 1 шт. | — | |
|
| 19 | 24435-MJP-G80 | SPRING, GEARSHIFT DRUM STOPPER | 1 шт. | — | |
|
| 20 | 24610-MJP-G80 | SPINDLE, GEARSHIFT | 1 шт. | — | |
|
| 21 | 24651-MGS-D20 | SPRING, GEARSHIFT RETURN | 1 шт. | — | |
|
| 22 | 24652-HA0-000 | PIN, GEARSHIFT RETURN SPRING | 1 шт. | — | |
|
| 23 | 90021-MM5-000 | BOLT-WASHER (6X12) (Honda Code 2551760) | 2 шт. | — | |
|
| 24 | 90030-GHB-720 | BOLT, FLANGE (6X35) | 2 шт. | — | |
|
| 25 | 90451-155-000 | WASHER (14MM) | 1 шт. | — | |
|
| 26 | 91007-MGS-D21 | BEARING, RADIAL BALL (25X47X8) | 1 шт. | — | |
|
| 27 | 91007-MGS-D31 | BEARING, RADIAL BALL (25X47X8) | 1 шт. | — | |
|
| 28 | 91024-MGS-D21 | BEARING, NEEDLE (12X18X12) | 1 шт. | — | |
|
| 29 | 91028-MGS-D21 | BEARING, NEEDLE (14X20X12) | 1 шт. | — | |
|
| 30 | 91203-KK3-830 | OIL SEAL (14X22X5) | 1 шт. | — | |
|
| 31 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 1 шт. | — | |
|
| 32 | 94301-08200 | PIN, DOWEL (8X20) (Honda Code 1417369) | 1 шт. | — | |
|
| 33 | 94510-14000 | CIRCLIP (OUTER) (14MM) | 1 шт. | — | |
|
| 34 | 96220-40080 | ROLLER (4X8) | 1 шт. | — | |
|
