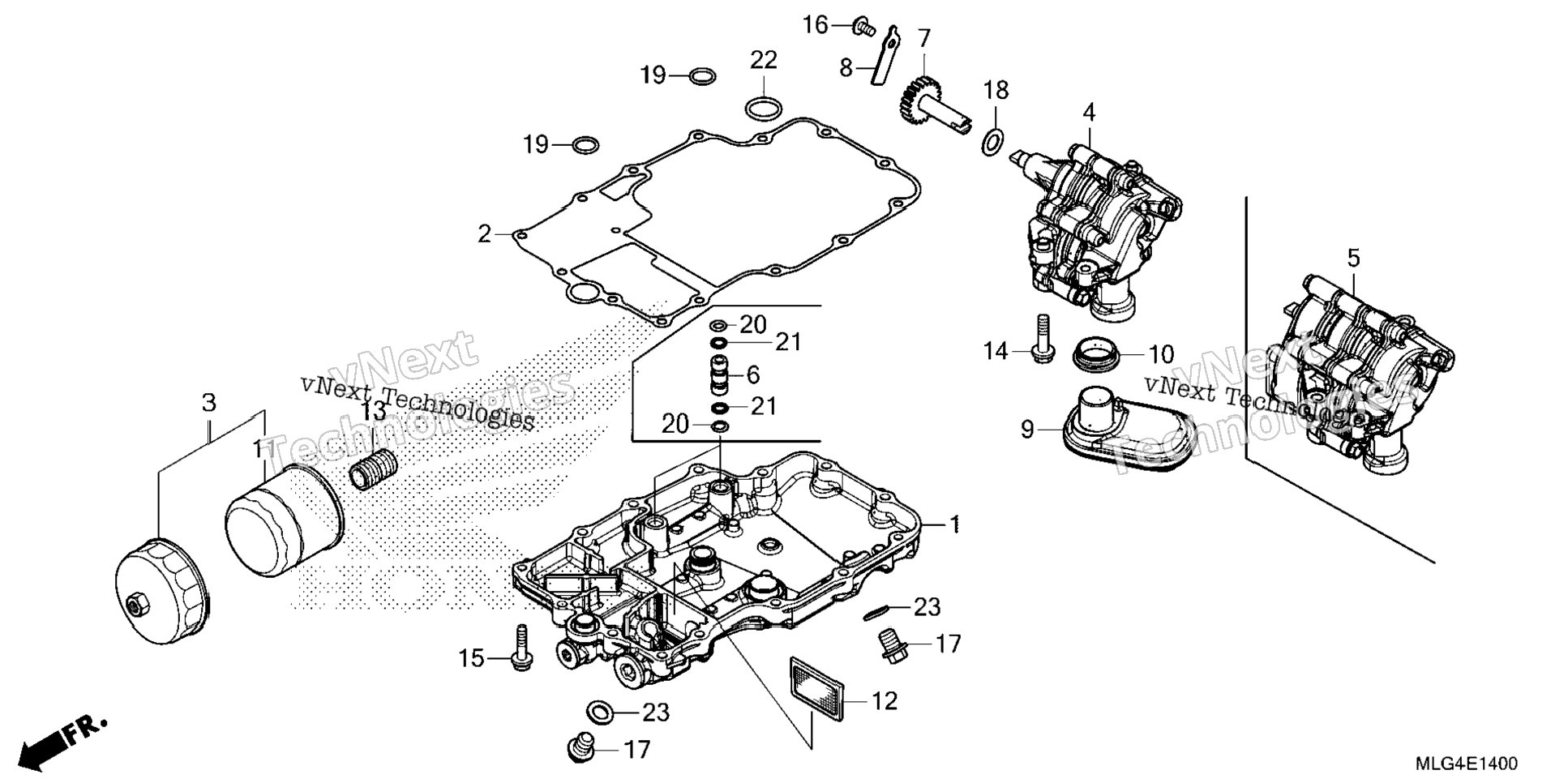

| 1 | 11210-MKK-D50 | PAN, OIL | 1 шт. | — | |
|
| 2 | 11395-MJP-G51 | GASKET, OIL PAN | 1 шт. | — | |
|
| 3 | 15010-MKR-305 | FILTER SET, OIL (Optional). | 1 шт. | — | |
|
| 5 | 15100-MJP-G81 | PUMP ASSY., OIL | 1 шт. | — | |
|
| 6 | 15104-MGS-D20 | PIPE, OIL PASSAGE | 2 шт. | — | |
|
| 7 | 15130-MKS-E00 | GEAR, OIL PUMP DRIVEN (21T) | 1 шт. | — | |
|
| 8 | 15136-MJP-G50 | PLATE, OIL PUMP DRIVEN GEAR SHAFT | 1 шт. | — | |
|
| 9 | 15150-MJP-G50 | STRAINER, OIL | 1 шт. | — | |
|
| 10 | 15154-MAT-000 | GASKET, OIL STRAINER | 1 шт. | — | |
|
| 11 | 15410-MFJ-D02 | FILTER, OIL (WAKO FILTER) | 1 шт. | — | |
|
| 12 | 15421-MJP-G50 | SCREEN, OIL FILTER | 1 шт. | — | |
|
| 13 | 90019-MB0-000 | BOSS, OIL FILTER (Honda Code 1243435) | 1 шт. | — | |
|
| 14 | 90022-MJP-G50 | BOLT, SPECIAL (6X32) | 3 шт. | — | |
|
| 15 | 90027-GHB-690 | BOLT, FLANGE (6X28) | 14 шт. | — | |
|
| 16 | 90103-MEN-710 | BOLT, SPECIAL (6MM) | 1 шт. | — | |
|
| 17 | 90131-896-650 | BOLT, DRAIN PLUG (12X15) | 2 шт. | — | |
|
| 17 | 90131-883-000 | BOLT, DRAIN PLUG (12X15) | 2 шт. | — | |
|
| 18 | 90401-MKE-A70 | WASHER (12.1X25X1) | 1 шт. | — | |
|
| 19 | 91303-KF0-003 | O-RING (14.8X2.4) (ARAI) | 2 шт. | — | |
|
| 20 | 91311-RFH-003 | O-RING (7.7X1.9) | 4 шт. | — | |
|
| 21 | 91315-MGS-D20 | RING, BACK-UP (8X11) | 4 шт. | — | |
|
| 22 | 91352-MGE-003 | O-RING (21.5X2.9) | 1 шт. | — | |
|
| 23 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 2 шт. | — | |
|
